Hanwha BRB-X1610E-8TB 16-Channel NVR with 8TB Storage

Overview

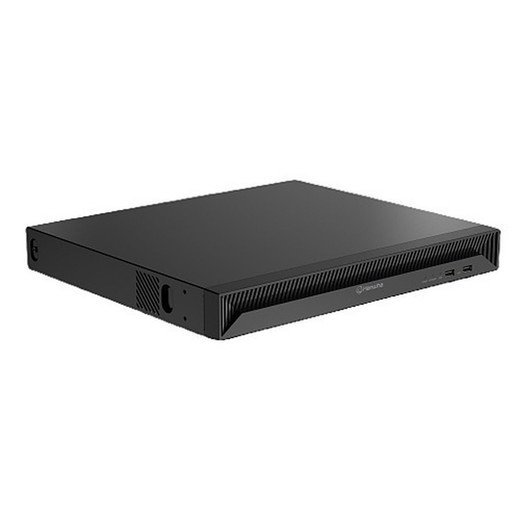

The Hanwha BRB-X1610E-8TB is a 16-channel network video recorder built for mid-size deployments — multi-door retail, warehouse floors, small campuses — where you need dedicated recording headroom without stepping up to a rack-mount enterprise chassis. It ships with 8TB of onboard storage across dual SATA bays, 8GB of DDR4 memory for handling multi-stream playback and search, and dual Gigabit Ethernet ports for network segmentation or failover. BRB-X1610E-8TB (often searched as BRB X1610E 8TB) is the storage-equipped variant in this recorder line, so you're not sourcing and qualifying a separate drive on install day.

Key Features

• 16 IP Channels: Covers a full mid-size site — think 12-16 camera perimeter-plus-interior layouts — without splitting the deployment across two recorders and two management logins.
• 8TB Onboard Storage (2x SATA bays): Preinstalled 8TB gives you real retention runway out of the box, and the two SATA bays leave room to add or swap drives as retention requirements grow instead of forklift-upgrading the whole unit.
• 8GB DDR4 Memory: More working memory than a base-spec NVR means smoother simultaneous playback, motion search, and export operations when someone's pulling incident footage while the system keeps recording.
• Dual RJ-45 Gigabit Ports: Two independent 1Gbps network interfaces let you separate camera traffic from client/viewing traffic, or configure failover — a real consideration once you're running 16 channels of live IP video on one box.
• 2-Way Audio (Audio In: USB Mic, 1x Audio Output): Supports intercom-style talk-down at monitored entries or docks, using a USB mic as the input source paired with the unit's audio output — useful for a front desk or loading dock that needs live audio challenge capability, not just recorded video.
• Front 2x USB 2.0 / Rear 2x USB 3.0: Front USB 2.0 ports handle quick local backups or mouse/keyboard setup during commissioning; rear USB 3.0 ports move recorded footage to external media fast when you need to hand off an export for an investigation.
• 100-240 VAC Universal Input: Runs on either 120V or 240V mains without a separate power step, which matters if you're standardizing recorder stock across sites in different regions or building types.
• 72W Power Consumption: A modest power draw for a 16-channel unit with two installed drives, which keeps UPS sizing and backup-power budgeting predictable on a multi-recorder rollout.
• 0°C to 40°C Operating Range: Rated for standard indoor equipment rooms and IT closets — plan for a conditioned space rather than an unheated exterior enclosure.
• Compact Chassis (14.57" x 2.00" x 12.60"): A 2-inch-tall desktop/shelf footprint that fits equipment racks or IT closet shelving without needing full rack rail hardware.

Integration & Compatibility

With 16 IP channels and dual network interfaces, the BRB-X1610E-8TB fits naturally into a segmented network design — cameras on one NIC, client and VMS traffic on the other. It pairs with network video recorders planning guidance and works alongside Hanwha IP cameras for a single-vendor recording chain. For sites still mapping out camera count and cable runs before committing to a 16-channel box, a camera selection and coverage planning guide helps confirm 16 channels is the right ceiling rather than under- or over-buying. If the deployment needs PoE delivery to the cameras themselves, pair this NVR with a rack-mount PoE switch sized to the channel count and camera wattage. For storage growth beyond the preinstalled 8TB, the second SATA bay leaves room to add a drive per your storage and retention planning requirements.

What's in the Box

Exact accessory and cable contents were not confirmed in available manufacturer data for this SKU — verify included mouse, rack hardware, and power cord specifics at time of order.

Frequently Asked Questions

Q: How many cameras can the BRB-X1610E-8TB record at once?

A: It supports up to 16 IP channels, making it suited to mid-size sites with 12-16 cameras.

Q: Does the BRB-X1610E-8TB come with a hard drive installed?

A: Yes — this variant ships with 8TB of storage installed across its 2 SATA bays, with room to add a second drive later.

Q: Can I run the BRB-X1610E-8TB on 240V power?

A: Yes, it accepts 100-240 VAC universal input, so it works on both 120V and 240V mains without a converter.

Q: Does the BRB-X1610E-8TB support two-way audio?

A: Yes — it supports 2-way audio using a USB microphone as the input source and includes one audio output.

Q: How much power does the BRB-X1610E-8TB draw?

A: It's rated at 72W, which keeps UPS and backup power sizing manageable for a 16-channel recorder.

Q: What's the operating temperature range for the BRB-X1610E-8TB?

A: 0°C to 40°C (32°F to 104°F) — it's designed for an indoor equipment room or IT closet, not an unconditioned exterior space.

Ted Perry

The spec that jumps out on the BRB-X1610E-8TB is the dual SATA bay layout paired with a preinstalled 8TB drive — you get real retention capacity on day one and a documented growth path instead of a single-bay box you'll outgrow in a year. This is a 16-channel recorder, so I'm sizing it for sites in the 12-16 camera range rather than trying to stretch it across a larger campus.

Technical Highlights:

• 8TB across 2 SATA bays: One drive is installed, one bay is open — plan your retention math now (resolution x frame rate x channel count x days) and know you can add capacity without swapping the primary drive.
• 8GB DDR4 memory: Enough headroom to run live view, motion search, and an export job concurrently on a 16-channel system without the UI stuttering — a common complaint on lower-memory recorders under load.
• Dual Gigabit RJ-45 ports: Segment camera traffic onto one NIC and client/VMS access onto the other — this is the same design pattern I recommend on any recorder pushing 16 concurrent IP streams.

Deployment Considerations:

• The 72W power draw and 100-240VAC input make this an easy fit for a UPS-backed rack or closet install — budget your battery runtime off that 72W figure, not a rack-average estimate.
• Two-way audio here depends on a USB microphone for input — confirm you're provisioning a USB mic at commissioning, since it's not a built-in mic on the chassis.

I'd spec the BRB-X1610E-8TB for a 12-16 camera retail or light-industrial site where the buyer wants preinstalled storage and dual-NIC network segmentation without jumping to a rack-mount enterprise recorder.
