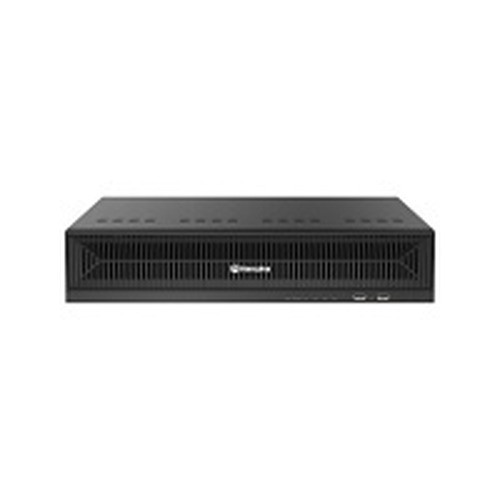

Hanwha BRB-X3210S1E-18TB 32-Channel PoE NVR

Overview

The Hanwha BRB-X3210S1E-18TB is a 32-channel network video recorder built into a 2U rackmount chassis with 16 built-in PoE/PoE+ ports and 18TB of pre-installed raw storage. It's sized for mid-size deployments — a multi-building warehouse, a retail chain location, a school campus — where you need enough channel headroom to grow past a starter 8 or 16-channel box without jumping straight to an enterprise VMS server. Because half the channels connect directly through the onboard 200W PoE budget, a chunk of the camera run doesn't need an external switch at all, which simplifies the closet and cuts a point of failure out of the network path.

Key Features

• 32-Channel capacity: room to record a full mid-size camera plant on one box instead of splitting the site across two smaller recorders — fewer devices to patch, license, and back up.
• 16 PoE/PoE+ ports, 200W budget: half your camera count can plug straight into the recorder with no separate PoE switch, as long as per-camera draw stays inside the shared 200W pool — plan higher-draw PTZ or IR-heavy cameras accordingly since that budget is shared across all 16 ports, not per-port.
• 18TB raw storage across 4 SATA bays (up to 16TB per HDD): the BRB-X3210S1E-18TB ships with drives installed rather than as an empty shell, so you're not sourcing enterprise surveillance-rated HDDs separately before commissioning. Four bays also leave room to grow into RAID for redundancy if the deployment calls for it.
• H.265/H.264/MJPEG codec support: H.265 cuts bitrate roughly 40-50% versus H.264 at equivalent quality, which matters directly here — with 32 channels writing to the same 18TB pool, codec efficiency is the difference between weeks and months of retention before old footage rolls off.
• Dual Gigabit NICs: lets you segment camera traffic onto one NIC and client/VMS viewing traffic onto the other, or configure failover — either way it keeps live viewing and remote access from choking recording bandwidth on a busy multi-camera network.
• 2U rack form factor: fits standard server rack or wall-mount rack enclosures alongside switches and other rack gear, rather than requiring a dedicated shelf like desktop NVR models.

Integration & Compatibility

With 32 channels and 16 native PoE ports, the BRB-X3210S1E-18TB (often searched as BRB X3210S1E 18TB) pairs naturally with a network video recorder lineup rollout where cameras beyond the first 16 connect through an upstream PoE switch — see this site's PoE switch options if you're scaling past the onboard port count. For camera selection guidance on matching resolution and lens coverage to channel count, the camera selection guide is a useful starting point before you commit to a channel layout. Browse the broader Hanwha Wisenet catalog for compatible camera lines, and review the storage and retention guide to confirm 18TB lines up with your camera count, resolution, and required retention window before ordering supplemental drives.

Frequently Asked Questions

Q: How many cameras can the BRB-X3210S1E-18TB power directly?

A: It has 16 onboard PoE/PoE+ ports sharing a 200W power budget. The remaining 16 of its 32 total channels need cameras powered via an external PoE switch or local power.

Q: Can I add more storage later?

A: The unit has 4 SATA HDD bays supporting up to 16TB per drive, so there's headroom beyond the 18TB it ships with, depending on how many bays are already populated.

Q: What video codecs does the BRB-X3210S1E-18TB support?

A: H.265, H.264, and MJPEG.

Q: Does it use a standard rack form factor?

A: Yes, it's built in a 2U chassis for standard rack mounting.

Q: Does the BRB-X3210S1E-18TB have redundant network connections?

A: It includes dual Gigabit Ethernet NICs, which can be used to separate camera and client traffic or configured for failover depending on setup.

Marty Allison

The math I run first on any NVR quote is channels-to-PoE-ports, and the BRB-X3210S1E-18TB splits it 32 to 16 — half your cameras drop straight onto the recorder, the other half need a switch upstream. That's a normal ratio for a 2U box this size, but plan your rack layout around it before the site survey, not after.

Technical Highlights:

• 200W shared PoE budget across 16 ports: that's roughly 12.5W average per port if you max out all 16 — fine for most fixed cameras, tight if you're hanging PTZs or heater-equipped outdoor domes on this recorder.
• 4-bay SATA array, 16TB per bay ceiling: shipped at 18TB raw, but the bays support up to 64TB total — meaning this box has real growth room before you're forced into a second recorder.
• Dual GbE NICs: I typically put camera traffic on one NIC and client/VMS traffic on the other so a remote viewing session never competes with the recording stream for bandwidth.

Deployment Considerations:

• Because the PoE budget is pooled, not per-port, tally actual camera wattage draw before wiring all 16 ports — don't assume every port gets a full 12.95W or 30W independently.
• 16 of 32 channels rely on external power or an upstream PoE switch — budget for that hardware in the same quote, it's not optional if you're using all 32 channels.

This is the right recorder for a mid-size multi-building site — think a 3-location retail group or a school campus — consolidating onto one rack-mounted NVR instead of running three undersized boxes. If you're topping out near 32 cameras today with room to grow, the 18TB starting point and 4-bay ceiling give you a real upgrade path instead of a forklift replacement in 18 months.
