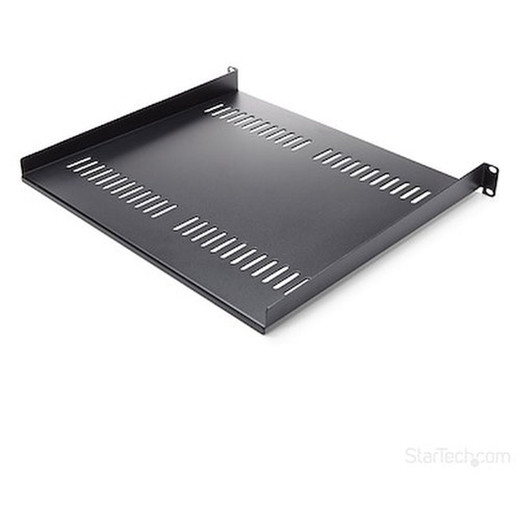

StarTech CABSHELF116V 1U Vented Fixed Rack Shelf

Overview

The StarTech CABSHELF116V is a 1U fixed rack shelf designed to seat non-rackmount equipment — patch panels, media converters, NVR appliances, small UPS units, or AV gear — inside a standard 19-inch EIA/ECA-310-E rack enclosure. At 15.7 inches deep and 17.2 inches of usable internal width, it handles most compact devices without wasting space or requiring a full 2U footprint. If you're running a network video recorder stack alongside supporting hardware and need a clean way to rack something that didn't ship in a rackmount chassis, this shelf solves the problem without creative cable-tie engineering.

Key Features

• 44.1 lb (20 kg) Weight Capacity: That's enough to hold a mid-range NVR appliance, a small UPS, or a stack of managed switches — most compact network or security hardware falls well under this limit. You're not guessing whether it'll hold; the rated limit is explicit, and steel construction backs it up.
• 1U Height — No Wasted Rack Space: At 1.7 inches tall, the CABSHELF116V occupies exactly one rack unit. For dense deployments where every U counts — surveillance head-end racks, telecom closets, edge compute enclosures — that single-unit footprint means you're not sacrificing display space for an oversized tray.
• 17.2-Inch Internal Width: Standard 19-inch rack rails sit closer together than the nominal 19-inch outer dimension suggests. The 17.2-inch clear internal width accommodates nearly any desktop or small-form-factor device without requiring modification or risers.
• 15.7-Inch Shelf Depth: Deep enough for most 1U-class appliances, small tower-form NVRs, or access control servers. Shallow enough that it won't interfere with cable management or rear-panel access in a 2-post or 4-post open-frame rack. Check your device depth before ordering if you're working with anything over 14 inches.
• Vented Design: The perforated deck promotes passive airflow across whatever sits on the shelf, reducing heat buildup in rack sections where active fans aren't pulling air directly across the device. For 24/7 surveillance hardware that runs continuously, passive thermal management matters more than it does in intermittent-use environments.
• Steel Construction — EIA/ECA-310-E Compliant: Built to the industry-standard rack specification, so it mounts flush and level in any EIA-310-compliant enclosure — StarTech, APC, Tripp Lite, Middle Atlantic, or third-party. The steel frame doesn't flex under load the way polymer alternatives can, which matters when you're torquing rack screws and don't want the shelf to rack out of true.
• Lifetime Warranty: StarTech backs the CABSHELF116V with a lifetime warranty — no time-box on a structural rack component that you'd otherwise never replace. That's a meaningful commitment on a shelf that may outlive the equipment sitting on it.
• 6.7 lb Shelf Weight: Light enough for one-person installation in a populated rack. You're not maneuvering something heavy into a tight rack bay with one hand while threading cage nuts with the other.

Integration and Compatibility

The CABSHELF116V is dimensioned to the EIA/ECA-310-E rack standard, which means it installs directly into any 19-inch two-post or four-post rack enclosure that accepts standard cage nuts or square-hole mounting. It ships as a fixed shelf — there's no sliding mechanism — so plan cable routing to the device before it's seated. For rack accessories like cable managers, patch panels, or blanking panels, the 1U profile keeps your layout clean. If you're building out a security head-end or an IP camera infrastructure rack alongside switching and NVR hardware, the CABSHELF116V gives you a mounting point for any device that doesn't come pre-racked. Pair it with a rack-mounted PDU on an adjacent U to keep power and device management in the same vertical column.

Frequently Asked Questions

Q: What rack standard does the CABSHELF116V conform to?

A: The CABSHELF116V is built to the EIA/ECA-310-E standard, which covers standard 19-inch rack enclosures. It will mount in any compliant two-post or four-post 19-inch rack that accepts standard cage nut or square-hole hardware.

Q: What is the maximum weight this shelf can hold?

A: The rated weight capacity is 44.1 lb (20 kg). This covers the majority of compact network appliances, NVRs, small UPS units, and access control servers typically used in security and IT rack builds.

Q: How deep is the usable shelf surface?

A: The shelf is 15.7 inches (40.0 cm) deep with a 17.2-inch (43.6 cm) internal width. Verify your device's depth and width against these dimensions before ordering — devices over 15 inches deep won't sit fully supported.

Q: Is the CABSHELF116V a sliding or fixed shelf?

A: It is a fixed shelf. There is no sliding or pull-out mechanism. Route device cables before fully seating the device on the shelf, especially if rear-panel access is limited in your enclosure.

Q: What warranty does the CABSHELF116V carry?

A: StarTech covers the CABSHELF116V with a lifetime warranty.

Q: Will this shelf work in a rack enclosure from a different manufacturer?

A: Yes. Because it conforms to EIA/ECA-310-E, the CABSHELF116V installs in any standard 19-inch rack enclosure regardless of brand — including APC, Tripp Lite, Middle Atlantic, and other EIA-310-compliant frames.

Marty Allison

The thing I keep coming back to with the CABSHELF116V is that 44.1 lb weight rating on a shelf that itself only weighs 6.7 lb — that's a well-engineered load-to-weight ratio for a steel rack component at this price tier. I've seen cheaper shelves flex noticeably under 20 lb; this one is rated to more than double that without the steel gauge becoming a conversation topic.

Technical Highlights:

• 44.1 lb Load Rating: Handles the full weight of most compact NVR appliances or 1U security appliances without strain — the 20 kg ceiling is explicit and structural, not a rough estimate.
• 17.2-Inch Internal Width: The usable clear width is 17.2 inches, which is the real number that matters — not the nominal 19-inch outer rack dimension. Most desktop appliances under 17 inches wide drop right in without adapters.
• EIA/ECA-310-E Compliance: Standard compliance means no guesswork on fitment. If your rack is 19-inch EIA-310, this shelf installs without shimming, custom brackets, or modification.

Deployment Considerations:

• At 15.7 inches of depth, verify your device's rear-panel depth before ordering. Devices that extend past the shelf rear will need cable support or a secondary bracket to prevent tipping under their own cable weight.
• This is a fixed shelf — there's no slide-out mechanism. In a fully populated rack, plan cable management before the device is seated; rear-panel access becomes difficult once the shelf is loaded and surrounding U spaces are occupied.

The CABSHELF116V is the right call for surveillance head-end racks where you need to seat a non-rackmount access control server or network appliance cleanly in a 19-inch enclosure without burning 2U on an oversized tray. The lifetime warranty on a structural component you'll likely never replace is the kind of spec that holds up well in a long-term infrastructure build.
