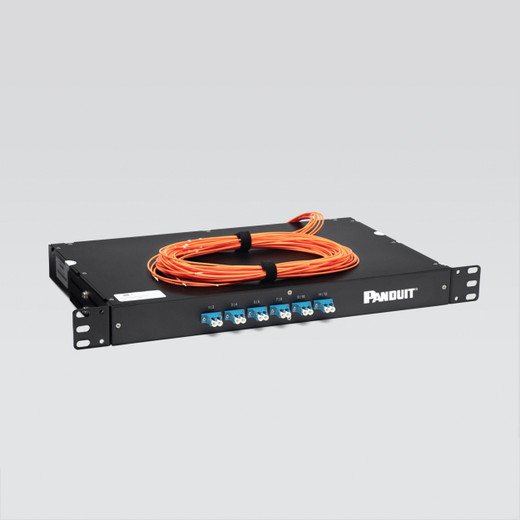

Panduit FML66RAN 1RU Rack-Mount OneMode Passive OM1 Fiber Media Converter
The Panduit FML66RAN is a fully passive, rack-mountable OneMode media converter engineered to squeeze 10, 50, or even 100 Gbps out of existing OM1 multimode fiber infrastructure — without ripping and replacing cable runs that may be embedded in conduit, raised floors, or plenum pathways. If your legacy OM1 plant is holding back a bandwidth upgrade, this is the device that buys you time and budget before a full re-fiber becomes unavoidable.
Overview
Panduit's OneMode technology works by manipulating singlemode laser light to eliminate modal dispersion — the optical phenomenon that limits legacy multimode glass to slower speeds. The FML66RAN accepts that conditioned light and allows singlemode-spec transceivers to operate reliably over OM1 cable at speeds the original infrastructure was never designed to support. The result is a migration path that is faster to deploy, significantly less expensive, and far less disruptive than a full fiber plant replacement. At 1RU and 18.89 inches wide, it fits any standard 19-inch rack without consuming meaningful vertical space. Explore the broader Panduit fiber optic solutions catalog for complementary infrastructure components.
Key Features
- Fully Passive Operation: No power supply, no active electronics, no thermal management required. Passive devices eliminate failure points and mean zero operating cost — critical in dense IDFs and MDFs where power budgets and heat loads are already constrained.
- Up to 100 Gbps Throughput Support: By suppressing modal dispersion in OM1 glass, the FML66RAN enables singlemode transceivers to achieve 10, 50, or 100 Gbps speeds over legacy cable. This is the core value proposition — it unlocks bandwidth tiers that would otherwise require a full fiber plant replacement costing orders of magnitude more than this device.
- 6-Port Configuration, 12 Fibers: Six duplex ports (2 fibers per port) per 1RU unit. If you're managing a structured cabling environment with multiple uplinks or inter-switch trunks, one unit handles up to six independent links simultaneously — reducing per-port cost and consolidating your migration infrastructure into a single rack slot.
- OM1 Legacy Fiber Compatibility: Designed specifically for 62.5/125 µm OM1 multimode plant — the fiber type most commonly found in campus and enterprise buildings installed before 2002. If your structured cabling survey identifies OM1 as the bottleneck, this device is purpose-built for that scenario.
- 1RU Rack-Mount Form Factor (480mm × 43mm): Standard 19-inch rack width at exactly 1U height. Slides into any equipment rack alongside your switching infrastructure, keeping fiber conditioning co-located with the active gear it serves. No shelf, no floor space, no improvised mounting required.
- Metal Construction: All-metal chassis provides mechanical durability in equipment rooms and data closets where gear gets handled frequently during moves, adds, and changes. The orange color coding follows standard fiber optic identification convention, reducing mispatching risk in high-density environments.
- Non-Disruptive Migration Path: Unlike a re-fiber project — which requires scheduling outage windows, pulling new cable, repatching panels, and requalifying links — the FML66RAN inserts into the existing plant passively. Installations can be staged link-by-link without taking down the broader network, which matters in 24/7 operational environments like security operations centers, warehouses, or healthcare facilities.
Integration & Compatibility
The FML66RAN is designed for environments running OM1 (62.5/125 µm) multimode fiber where a bandwidth upgrade to 10GbE, 50GbE, or 100GbE is required. It pairs with fiber optic cabling infrastructure and works upstream of your active switching equipment — singlemode-capable switches and transceivers on one side, existing OM1 plant on the other. For network planners sizing a full fiber upgrade strategy, review the network infrastructure planning guide before committing to a passive conditioning approach versus full OM4/OS2 replacement. The passive design means there are no protocol-specific limitations; the device conditions the optical signal regardless of the Ethernet standard running over it, provided the transceiver and switch combination supports the target speed. For complete rack deployments, consider pairing with Panduit patch panels and cable management to maintain a clean, maintainable fiber plant. The 6-port layout supports up to six independent fiber links per unit; for higher port densities, multiple FML66RAN units can be deployed in adjacent rack units.
Frequently Asked Questions
Q: What fiber type does the FML66RAN work with?
A: The FML66RAN is designed for OM1 (62.5/125 µm) multimode fiber — the legacy fiber type commonly installed in enterprise and campus buildings prior to the widespread adoption of OM3/OM4. It is not intended for use with OM3, OM4, or OS1/OS2 singlemode cable plants.
Q: Does the FML66RAN require a power supply?
A: No. The FML66RAN is a fully passive device — it contains no active electronics and requires no external power source. This eliminates operating costs and removes a failure point in your infrastructure.
Q: What speeds can the FML66RAN support?
A: Panduit's OneMode technology enables speeds of 10, 50, or 100 Gbps over existing OM1 legacy fiber. The specific achievable speed depends on the transceivers and switching equipment used in conjunction with the device.
Q: How many fiber connections does the FML66RAN support?
A: The FML66RAN provides 6 duplex ports for a total of 12 fibers per 1RU unit. Each port handles one duplex link (two fibers), supporting up to six independent fiber connections simultaneously.
Q: Will the FML66RAN fit in a standard 19-inch equipment rack?
A: Yes. The FML66RAN measures 18.89 inches (480mm) wide and 1.69 inches (43mm) tall — standard 1RU dimensions that fit any 19-inch equipment rack without modification.
Q: Is the FML66RAN a viable alternative to replacing legacy OM1 fiber?
A: For many environments, yes. Panduit positions the OneMode approach as a faster, more economical, and less disruptive path to higher speeds compared to a full cable replacement. However, the right choice depends on link distances, target speeds, and the long-term lifecycle plan for the fiber plant. For permanent high-density deployments with long planning horizons, a full OM4 or OS2 re-fiber may still be the better investment.
The FML66RAN is one of the more pragmatic tools in a network infrastructure kit — it's a fully passive 1RU device that conditions singlemode laser light to eliminate modal dispersion in OM1 glass, enabling 10, 50, or 100 Gbps over fiber that was installed when Fast Ethernet was the ceiling. If you're being asked to deliver 10GbE or higher throughput in a building with legacy 62.5/125 multimode cable and the budget for a re-fiber isn't there, this is a credible path forward.
Technical Highlights:
- Passive Modal Dispersion Elimination: No active components means no power draw, no heat, and no additional failure modes. The OneMode conditioning approach manipulates the singlemode laser at the source rather than amplifying or regenerating the signal — keeping the optical path clean and the device indefinitely reliable in stable rack environments.
- 6 Duplex Ports / 12 Fibers per 1RU: At 18.89 inches wide and 43mm tall, the FML66RAN fills one standard rack unit and handles six independent duplex links. For a typical IDF with six uplinks or inter-closet trunks, one unit covers the entire panel — no stacking, no shelf mounting.
- 100 Gbps Ceiling: The bandwidth headroom here is meaningful. Most re-fiber decisions are driven by a perceived need to hit 40GbE or 100GbE; the FML66RAN supports both without touching the cable plant, which reframes the economics of the project entirely.
Deployment Considerations:
- Verify that your singlemode transceivers and switch ports are rated for the target speed (10/50/100G) — the FML66RAN conditions the optical path, but the active gear on each end still determines the achievable link rate. Mismatched transceiver specs are the most common source of underperformance in OneMode deployments.
- This device is purpose-built for OM1 (62.5/125 µm) plant. If a site survey reveals OM2, OM3, or OM4 fiber, the FML66RAN is not the right tool — those fiber types have different dispersion characteristics and are handled by different conditioning approaches or may not require conditioning at all.
The FML66RAN is a strong fit for enterprise campus buildings with pre-2002 fiber plant where 10GbE uplink upgrades are required on a constrained capital budget — particularly in occupied facilities where a re-fiber would require significant disruption to active operations.
