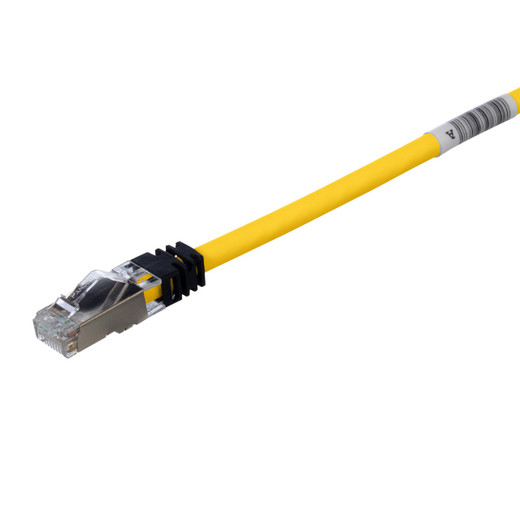

Panduit STP6X1MYL 10Gig Cat 6A Shielded Patch Cord 1m

Panduit STP6X1MYL Cat 6A Shielded Patch Cord

The Panduit STP6X1MYL TX6A™ 10Gig patch cord delivers full 10GBASE-T performance in a 1-meter shielded cable engineered for high-density data center and enterprise network environments. Built with 26 AWG S/FTP construction and CM/LSZH jacketing, this yellow patch cord meets the physical and electromagnetic demands of server virtualization fabrics, backbone aggregation links, and parallel processing clusters where alien crosstalk and EMI can degrade multi-gigabit signaling. The tangle-free modular latch and slender strain relief boot streamline moves, adds, and changes in crowded racks where traditional snag-prone patch cords create installation friction and accidental disconnects.

Key Features

• 10GBASE-T capable — exceeds ANSI/TIA-568.2-D Cat 6A and ISO 11801 Class EA from 1 to 500 MHz
• S/FTP shielded construction — individual pair foil plus overall braid shield for alien crosstalk immunity in bundled runs
• 26 AWG stranded conductors — flexible enough for tight-radius patching without sacrificing insertion loss performance
• RapidID pre-installed barcodes — simplifies port mapping and asset tracking with Panduit RapidID software
• Tangle-free latch design — prevents snags on adjacent cables during extraction, reducing service call time
• Slender strain relief boot — permits higher port density and easier access in 1U switch and patch panel environments
• CM/LSZH dual-rated jacket — compliant for plenum-equivalent installations and low-smoke applications
• IEEE 802.3bt PoE support — handles Type 3 (60W) and Type 4 (90W) power delivery for high-wattage access points and IP devices

Shielded twisted pair cabling becomes essential when 10GBASE-T links run in high-EMI environments or when multiple Cat 6A cables bundle together in ladder rack or cable tray. Unshielded patch cords can suffer from alien crosstalk — interference between adjacent cables that degrades the signal-to-noise ratio and forces auto-negotiation down to 1000BASE-T speeds. The STP6X1MYL's S/FTP construction places a foil shield around each twisted pair and an overall tinned copper braid around the cable core, creating two layers of electromagnetic isolation. This dual-shield architecture maintains the 500 MHz bandwidth floor required for 10GBASE-T while preventing radiated emissions from violating FCC Part 15 limits in densely cabled installations. Integrators deploying 10/25/40G server uplinks, storage area networks, or converged Ethernet fabrics rely on shielded patch cords to preserve the link budget in environments where unshielded copper would fail bit error rate testing.

The 26 AWG stranded conductor design balances flexibility with electrical performance. Stranded copper permits the tight bend radii common in equipment racks — the cable routes cleanly around cable management arms and through vertical managers without the spring-back force that solid conductors create. Despite the smaller gauge, insertion loss and return loss stay well within Category 6A channel limits because Panduit's TX6A modular plug compensates for conductor diameter through optimized contact geometry. The plug's gold-plated contacts maintain low contact resistance across hundreds of mating cycles, and the internal load bar holds all eight conductors in the correct pin-pair sequence to meet the 568.2-D pair-skew specification. Each plug ships pre-terminated and factory-tested, eliminating the field termination errors that create intermittent link failures and Ethernet frame check sequence errors.

RapidID asset management transforms patch cord deployment from a manual documentation task into a barcode-driven workflow. Each STP6X1MYL arrives with a serialized barcode label affixed to the boot, encoding the cable's length, color, and unique identifier. When used with Panduit's RapidID software and a handheld scanner, installers can map every patch cord to its source and destination port in real time, auto-populating a structured cabling database that eliminates the hand-drawn rack diagrams and out-of-date spreadsheets that plague most data centers. This barcode-driven approach cuts MAC (moves, adds, changes) time by 40-60% because technicians no longer trace cables by hand or rely on faded labeling to identify circuits. For multi-tenant colocation facilities and large enterprise campuses where hundreds of patch cords change monthly, RapidID provides the asset-level visibility required to maintain accurate port inventories and enforce cross-connect policies.

The tangle-free latch prevents the cable-management disasters common in high-density patching. Traditional RJ45 plugs use a flexible latch that extends above the plug body — when you pull the cable, the latch snags on adjacent patch cords and can bend or break. Panduit's tangle-free design recesses the latch actuation point and adds a smooth boot profile that slides past neighboring cables without catching. This seemingly minor detail has a measurable impact on mean time to repair: technicians can extract a single cable from a bundle of fifty without disrupting adjacent links or spending five minutes untangling a rat's nest of cross-connected boots. The slender strain relief boot complements this design by reducing the plug's overall diameter, allowing 48-port switches and 2U patch panels to achieve full port population without the boot-to-boot interference that forces installers to leave alternate ports empty.

IEEE 802.3bt PoE compatibility extends power delivery beyond the 30-watt ceiling of 802.3at PoE+, supporting the newest generation of multi-radio Wi-Fi 6E access points, PTZ cameras with integrated heaters, and IP lighting controllers that require 60-90 watts per port. The STP6X1MYL's 26 AWG conductors meet the DC resistance limits in Table 12-2 of the 802.3bt standard, ensuring that voltage drop stays within the 10.1-12.95V range required for Type 4 PD classification. Because the cable uses all four pairs for power transmission (not just the spare pairs), it can sustain the 948 mA current draw of a 90-watt load without exceeding the 60°C conductor temperature rise limit. For PoE-dense deployments — such as enterprise campus buildings with 100+ access points per floor or smart building installations with centralized PoE lighting — using a Cat 6A shielded patch cord rated for 802.3bt ensures that the structured cabling system won't become the bottleneck when you upgrade to higher-wattage endpoints.

The 1-meter length fits the short-hop patching common between top-of-rack switches and horizontally mounted servers, or between a patch panel and an adjacent network switch in an equipment room. Yellow jacketing provides instant visual identification in mixed-protocol or multi-tenant racks where color-coding differentiates production networks (yellow) from management VLANs (blue) or storage fabrics (red). The CM/LSZH dual rating satisfies the NEC Article 800 requirements for communications cables in air-handling spaces (CM) while also meeting the low-smoke, zero-halogen performance criteria in IEC 60754 and IEC 61034 — critical for installations in Europe, Asia-Pacific regions, and enclosed spaces like ship server rooms or underground telecom vaults where toxic smoke during a fire creates life-safety hazards.

Exceeds ANSI/TIA-568.2-D Category 6A, ISO 11801 Class EA, and IEC 60603-7 standards. UL listed under file E129886 and CSA certified. RoHS compliant. Wired to support both T568A and T568B termination schemes. Supports all Ethernet protocols from 10BASE-T through 10GBASE-T, including 2.5GBASE-T and 5GBASE-T multi-gigabit auto-negotiation for NBASE-T switch ports. Ships in cartons of 10 for volume deployments.
