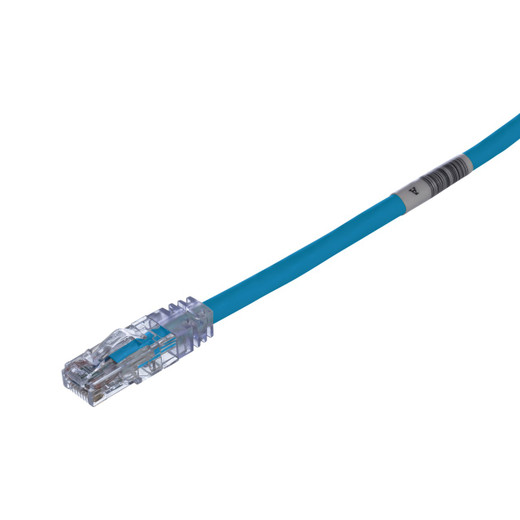

Panduit UTPSP1BUY Cat 6 UTP Patch Cord
The Panduit UTPSP1BUY delivers 10GBASE-T performance in a compact 1-foot form factor engineered for high-density network environments. Built on the TX6 PLUS platform with 24 AWG stranded copper and Panduit's patented tangle-free latch, this Cat 6 UTP patch cord solves the cable-management chaos that stalls rack deployments in datacenters, security NOCs, and enterprise IDF closets. Every cord ships with pre-installed RapidID barcodes for instant port mapping, eliminating the manual labeling that burns hours during cutovers and MAC work.
Key Features
- Cat 6 UTP construction with 24 AWG stranded copper — exceeds ANSI/TIA-568.2-D and ISO 11801 Class E for 10GBASE-T over limited distances
- Patented tangle-free latch prevents snags during extraction, streamlining moves, adds, and changes in congested patch panels
- RapidID-enabled with pre-installed barcodes — map ports instantly using Panduit RapidID software, no manual labeling required
- Slender strain relief boot fits high-density panels without blocking adjacent ports
- Rated for 2500 mating cycles with full PoE++ support (IEEE 802.3bt Type 3 and Type 4)
- 100% factory tested for wire map, NEXT, and return loss — ships ready to deploy
The UTPSP1BUY uses Panduit's centered de-embedded plug design with an integral pair manager to maintain geometry through the termination, delivering consistent crosstalk margins across the entire 2500-cycle lifespan. The U/UTP cable construction (unshielded twisted pair) keeps the 1-foot cord flexible enough for tight bends in cable managers while the stranded conductors resist work hardening during repeated reconnections. Factory testing validates wire map integrity, near-end crosstalk (NEXT), and return loss on every cord before it leaves the line — critical when you're deploying hundreds of connections in a single rack and can't afford field troubleshooting.
Designed for Gigabit Ethernet, 10GBASE-T, PoE++, VoIP, 1.2 Gb/s ATM, and digital video transport, the UTPSP1BUY fits any application where short-run copper interconnects are needed between switches, patch panels, media converters, or PoE injectors. The CM (Communications) flame rating meets NEC Article 800 requirements for general-purpose building installation, and the cord is fully compliant with ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, and UL 1863. RoHS compliance ensures the cord meets EU material restrictions for installations subject to international environmental standards.
The RapidID barcode system is the deployment differentiator here — scan each cord during installation to auto-populate port records in Panduit's RapidID software, then export a complete as-built map without manual spreadsheet work. The 2500-cycle durability rating (validated with PoE++ power-on) means the UTPSP1BUY will outlast standard 750-cycle patch cords by 3× in environments where technicians frequently reconfigure connections for test gear, troubleshooting, or tenant turnover. For integrators managing IDF/MDF cutovers or security NOC buildouts where every hour counts, this is the patch cord that eliminates the two biggest time sinks: cable snags and post-install documentation.
