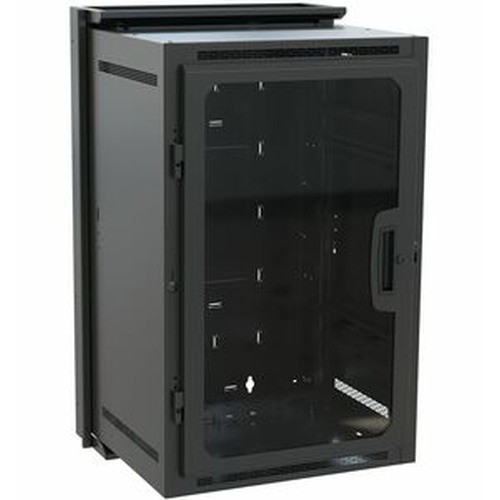

Middle Atlantic 18 Space 22IN. Deep Wallrack DWR Series Steel Textured Black Powder - DWR-18-22PD

Middle Atlantic DWR-18-22PD 18U Pivoting Wall Rack

Overview

The Middle Atlantic DWR-18-22PD is an 18-space, 22-inch deep pivoting wall rack built for AV, security, and IT equipment deployments where floor space is at a premium but rack capacity cannot be compromised. Fabricated from steel with a black wrinkle powder coat finish, this wall rack delivers a rack enclosure solution that handles real commercial loads — up to 250 lbs UL-rated — without requiring a dedicated equipment room. The pivoting design allows the cabinet to swing away from the wall for rear-access cabling without pulling equipment or disconnecting patch panels, making it a practical choice for wiring closets, server alcoves, and security head-end rooms where technicians need to work behind the rack on a regular basis.

At 18U of usable rack space with a 20-inch usable depth, the DWR-18-22PD accommodates 1U and 2U NVRs, PoE switches, patch panels, and UPS units in a single footprint. TAA compliance and seismic ratings extend its reach into government, education, and high-seismic-zone deployments. If you're specifying a wall mount rack for a mid-size security or AV head-end, this is the model to evaluate first.

Key Features

• 18U / 31.5 in Usable Height: Eighteen rack units of forward rail space — enough to fit a full NVR stack, a managed PoE switch, a UPS, and patch panels in a single wall-mounted enclosure. The 31.5-inch usable height matches standard 19-inch rack equipment without shimming or custom mounting.
• 250 lb UL-Rated Load Capacity: The UL-verified 250 lb static load rating means you can fill this rack with dense 2U NVRs and full-port switches without worrying about hardware fatigue over time. Seismic load capacity is 155 lbs — factor this in for California, Pacific Northwest, or any Zone 3/4 seismic jurisdiction.
• 22 in Total / 20 in Usable Depth: The 20-inch usable depth is the practical number — deep enough for 1U and 2U rack-mount appliances, including most commercial NVRs and managed switches, without requiring an extension rail kit. Shallow-depth patch panels and 1U gear fit with room to spare for cable management.
• Pivoting Wall Design: The cabinet swings away from the wall, giving technicians full access to rear panel connections, cable runs, and port labeling without removing equipment. On a dense security head-end with 16+ camera feeds terminating at a patch panel, that access matters during commissioning and service calls.
• Plexi Front Door: The included plexi door lets you visually confirm LED status — link lights on switches, drive activity on NVRs, UPS charge indicators — without opening the enclosure. Useful in environments where the rack is in a common area and casual visual monitoring is part of daily operations.
• Steel Construction with Black Wrinkle Powder Coat: The steel chassis and wrinkle powder coat finish hold up in wall-mount environments where the rack takes incidental contact from passing carts or staff. The finish is uniform enough for client-facing installations without looking like a job-site enclosure.
• Forward Rackrail with Forward Compatible Design: The forward rackrail positions equipment at the front of the enclosure, which is the correct orientation for most rack-mount gear. The forward-compatible designation means future Middle Atlantic accessories — shelves, cable managers, blanks — integrate without adapter kits.
• TAA Compliant: Sourced and manufactured to Trade Agreements Act requirements, so this rack qualifies for federal, state, and municipal procurement without a TAA waiver. Country of origin is Mexico, consistent with TAA-eligible manufacturing.
• Seismic Rated: The DWR-18-22PD carries a 155 lb seismic load capacity, which meets requirements for wall-mount rack installations in seismic zones where equipment anchorage standards apply. If the full 250 lb load rating is needed and seismic code applies, plan the load accordingly — the seismic threshold is 95 lbs lower than the static UL rating.

Integration & Compatibility

The forward rackrail accepts standard 19-inch rack-mount equipment on EIA-standard spacing. Middle Atlantic's DWR series is designed for integration with the brand's accessory ecosystem — rack accessories including horizontal cable managers, blanks, and vented shelves are forward compatible. For security system deployments, this rack pairs naturally with network video recorders and managed PoE switches that handle camera feeds, keeping all head-end hardware in a single locked, wall-mounted enclosure. Wall anchoring requirements depend on wall construction — verify stud spacing and wall material load ratings before installation, as the 87.5 lb product weight (124 lb shipping weight) requires solid structural attachment points.

The DWR-18-22PD (often searched as DWR 18 22PD) is patent-protected under US Patent 7278183 and available for international shipment, making it a viable specification for cross-border projects.

Frequently Asked Questions

Q: What is the UL load capacity of the DWR-18-22PD?

A: The DWR-18-22PD has a UL-rated load capacity of 250 lbs (113.4 kg). The seismic load capacity is lower at 155 lbs (70.3 kg) — plan accordingly if your installation is in a seismic zone with anchorage requirements.

Q: Is the DWR-18-22PD TAA compliant?

A: Yes. The DWR-18-22PD is TAA compliant and carries a CSA Standard designation of TAA, making it eligible for U.S. federal, state, and municipal procurement without a waiver. Country of origin is Mexico.

Q: How much usable rack space does the DWR-18-22PD provide?

A: The DWR-18-22PD provides 18U of rack space with a usable height of 31.5 inches (80 cm) and a usable depth of 20 inches (50.8 cm). Total cabinet depth is 22 inches.

Q: Does the DWR-18-22PD come with a front door?

A: Yes. The DWR-18-22PD includes a plexi (clear acrylic) front door, which allows visual monitoring of equipment indicator lights without opening the enclosure.

Q: What is the product weight and shipping weight of the DWR-18-22PD?

A: The DWR-18-22PD weighs 87.5 lbs (39.7 kg) without equipment. Shipping weight is 124 lbs (56.3 kg). Plan wall anchoring for the combined weight of the cabinet plus installed gear.

Q: Is the DWR-18-22PD available for international shipment?

A: Yes. The DWR-18-22PD is designated as available internationally.
