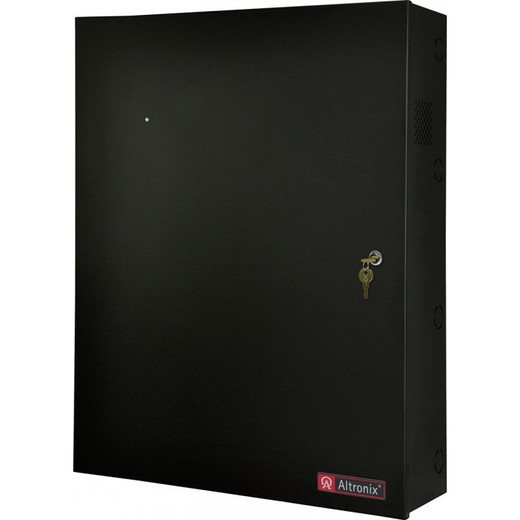

Altronix 16-DR PTC/ALTX-MERC/PWX/KIT2 - T3M75XK2D
Altronix 16-DR PTC/ALTX-MERC/PWX/KIT2 - T3M75XK2D
Altronix 16-DR PTC/ALTX-MERC/PWX/KIT2 - T3M75XK2D
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Altronix T3M75XK2D Power Distribution Kit

Overview

The Altronix T3M75XK2D is a specialized power distribution kit designed to integrate Altronix power supplies with Mercury access control modules. This kit simplifies the deployment of secure, reliable access control systems by providing a pre-engineered solution for power management, reducing installation complexity and potential points of failure. It's intended for new installations or upgrades where a clean, organized power infrastructure is critical for system stability and compliance. The T3M75XK2D model specifically addresses power distribution needs within certain Altronix and Mercury ecosystems.

Compatibility

This kit is engineered for use with specific Altronix power supply models and Mercury access control boards. It is directly compatible with the Altronix AL1024ULACM series power distribution modules and the Mercury LP4502, LP4502-M2, and LP4502-M4 access control panels. Ensure your existing or planned system utilizes these specific Altronix power and Mercury control units before selecting this kit.

Installation Notes

Installation requires basic electrical wiring knowledge. The kit includes necessary hardware for mounting the power distribution module and connecting it to the specified Mercury panels. Follow the wiring diagrams provided in the Altronix installation manual for the AL1024ULACM series and the Mercury LP4502 series documentation to ensure correct polarity and voltage distribution. Proper grounding is essential for system safety and performance.

What's in the Box

  • 1x Altronix T3M75XK2D Power Distribution Kit
Expert Analysis
Specifications
Kit Capacity: 14-door
Mercury Controllers Supported: 1 LNL-3300 / LP2500, 7 MR52
Power Supply 1 Input Voltage: 120VAC, 60Hz
Power Supply 1 Input Current: 4.5A
Power Supply 1 Output Voltage: 24VDC @ 10A
Power Supply 1 Auxiliary Output: 1A
Power Supply 2 Input Voltage: 120VAC, 60Hz
Power Supply 2 Input Current: 3.5A
Power Supply 2 Output Voltage: 12VDC @ 10A
Power Supply 2 Auxiliary Output: 1A
Dual Input Power Controller Output Voltage: 12 or 24VDC
Dual Input Power Controller Output Current: 2.5A Rated
Battery Capacity: Up to four 12VDC/12AH
Battery Type: Sealed lead acid or gel type
Supervision: AC Fail, Battery Fail, Battery Presence
Agency Listings: UL294, cUL s319-05, CE
Enclosure Dimensions: 36.12" x 30.125" x 7.06"
Enclosure Weight: 85.6 lb.
Operating Temperature: 0ºC to 49ºC
Storage Temperature: -20ºC to 70ºC
Relative Humidity: 85% +/- 5%
