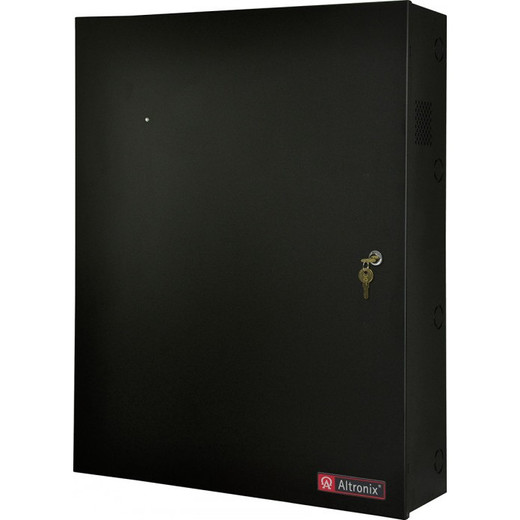

Altronix 16-DR FUSE/ALTX-MERC/PWX/KIT1 - T3M75XK1

Altronix T3M75XK1 Concise Descriptor

Overview

The Altronix T3M75XK1 is a 16-door fuse and power distribution kit designed for commercial access control and surveillance systems. It provides fused protection and power distribution for up to 16 devices, simplifying wiring and ensuring individual circuit integrity. This kit is intended for integration into larger power management solutions where granular control and protection are required for multiple access points or cameras.

Compatibility

This kit is designed to integrate with Altronix power distribution and access control chassis. It is compatible with Altronix power supplies and enclosures that support the T3M75XK1 module, typically found in systems requiring fused outputs for individual door controllers, card readers, or IP cameras. Specific compatibility should be verified against the Altronix chassis and power supply datasheet for your deployment.

Installation Notes

Installation requires wiring individual device power inputs to the fused outputs on the T3M75XK1 module. Each output is individually fused, offering protection against overcurrent and short circuits for each connected device. Proper grounding and adherence to local electrical codes are mandatory. The module is designed to mount within compatible Altronix enclosures.

What's in the Box

• 1x T3M75XK1 16-door fuse/power distribution module
• 1x Installation guide
