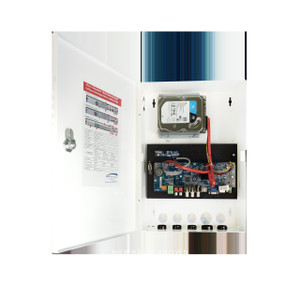

Speco Technologies D16WHU16TB 16-Channel Wall Mount DVR, 16TB

Overview

The Speco D16WHU16TB is a 16-channel DVR with 16TB onboard storage in a wall-mount chassis — designed for commercial and retail deployments where centralized recording infrastructure must fit tight physical constraints. TAA-compliant construction means it qualifies for government contracting and federal compliance environments. This recorder handles up to 16 concurrent camera channels, making it suitable for moderate-scale surveillance systems (convenience stores, small office buildings, warehouse entry points, or multi-location retail chains with per-site local storage). The 16TB capacity delivers substantial retention at standard frame rates — real storage math depends on resolution and compression, but figure 30–90 days of 24/7 recording across a typical mixed-resolution build (some 1080p, some 4MP mix).

Compatibility

The D16WHU16TB accepts standard analog and IP camera inputs (check your specific Speco or third-party camera compatibility via the product datasheet for exact codec and resolution support). It integrates with ONVIF-compliant video management systems, which covers most commercial VMS platforms (Milestone, Genetec, March Networks, Axis Companion, etc.). Verify codec support (H.264, H.265, MJPEG) against your camera lineup before purchase — resolution scaling and frame rate handling vary by firmware version.

Installation Notes

Wall-mount form factor requires standard 19-inch rack rail brackets or dedicated wall mounting. Ensure adequate ventilation behind the unit — DVR heat dissipation is non-trivial on a 16-channel 24/7 recorder. Power supply (check voltage and current requirements in the technical specifications) must be UPS-backed for continuous operation or graceful shutdown on mains loss. Network connection (PoE or direct Ethernet) must support aggregate bandwidth for 16 channels at your configured bitrate — 1GB or 10GB switch uplink recommended depending on frame rate and resolution mix.
