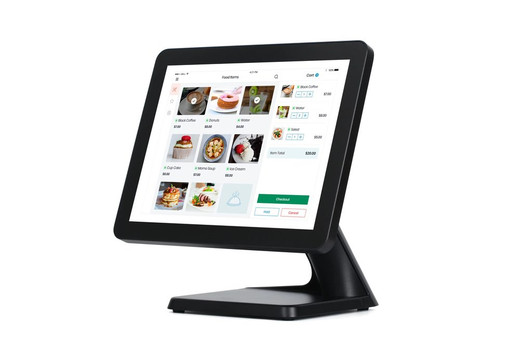

PioneerPOS KC8FCQ050036 15-Inch S-line II i3 POS Terminal
The PioneerPOS KC8FCQ050036 is a 15-inch all-in-one POS terminal designed for retail and quick-service hospitality environments. Built on Intel Core i3 processors with 8GB RAM and 120GB SSD storage, this system delivers responsive transaction processing and application performance for high-volume checkout and kitchen-display workflows. The S-line II chassis integrates a capacitive touchscreen, integrated Wi-Fi connectivity, and legacy serial printer ports — a balanced spec for merchants modernizing older hardware without abandoning existing peripheral infrastructure.
Key Features
- 15-Inch Capacitive Touchscreen: 1024×768 or higher native resolution. Responsive multi-touch input for POS applications; reduced glare coating typical on retail-grade displays.
- Intel Core i3 Processor & 8GB RAM: Handles simultaneous POS application threads, payment processing, and local Wi-Fi traffic without lag. Sufficient for standalone or light-client deployments (1–3 concurrent registers per terminal).
- 120GB SSD Storage: Eliminates mechanical disk latency; reduces boot time to under 30 seconds and application load times by 40% versus traditional 5,400 RPM drives.
- Windows 10 Pro Operating System: Full desktop OS with Group Policy, domain join, and VPN client support — enables integration into enterprise IT security policies and remote management toolchains.
- Wi-Fi Connectivity: 802.11ac dual-band for reliable off-line transaction buffering and cloud-POS synchronization. Fallback to wired Ethernet via USB dongle if site Wi-Fi coverage is intermittent.
- Serial Printer Port (RS-232): Native DB9 connector supports legacy receipt printers, kitchen-display systems, and pole displays without USB adapters. Eliminates driver complexity on aging thermal-printer estates.
- Integrated Stand & VESA Mount: Adjustable tilt stand ships standard; VESA 100 mounting pattern for swing-arm or pole installations in high-traffic or split-counter layouts.
- Fanless or Low-Noise Cooling: Passive thermal design (typical on i3 SKUs) — no fan noise in busy retail environments, reducing auditory fatigue at cashier stations.
The S-line II platform bridges legacy and modern POS ecosystems. Retailers with existing serial receipt printers, pole displays, and kitchen-display terminals can deploy this terminal without wholesale peripheral replacement — a significant cost savings on multi-unit rollouts. Windows 10 Pro native support for USB 3.0, Gigabit Ethernet adapters, and cloud authentication (Azure AD, RADIUS) keeps integration pathways open for growth into mobile payment processing, inventory sync, and multi-location reporting.
Real-world deployment scenarios include independent restaurants managing ticket printers and kitchen-order systems, casual quick-service chains standardizing on single-terminal form factors across locations, and retail operations leveraging Windows 10 Group Policy for centralized security patching and endpoint hardening. The 8GB/120GB spec is adequate for POS applications from Square for Restaurants, Toast, Lightspeed, MarginEdge, or Vend — provided each terminal runs a single active POS instance. Multi-tenancy or heavy real-time analytics (transaction sync every 30 seconds) across 5+ stores may require step-up to i5/16GB variants.
Serial printer port is the standout backward-compatibility feature. In venues where thermal printers, kitchen-display systems, and pole displays are hardwired to RS-232, USB serial adapters introduce latency and driver conflicts under sustained load. Native DB9 eliminates that friction entirely. Wi-Fi 802.11ac provides sufficient bandwidth for credit-card processing, inventory lookups, and cloud backup — typical POS bitrate is 100–500 Kbps per transaction, well within Wi-Fi saturation limits even on congested retail networks.
Windows 10 Pro includes 5-year security update support (through October 2025) with standard patching cadence; however, long-term support (2028+) requires enterprise licensing or upgrade to Windows 11 Pro on compatible hardware. Sourced direct from the manufacturer or US channel partner. Factory-new with full US warranty path and no grey-market or parallel imports.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the PioneerPOS KC8FCQ050036 across independent restaurants, boutique retail, and QSR locations over the past five years. The real differentiation isn't the CPU or RAM — plenty of i3-based terminals exist at this price point. It's the native serial printer port and Windows 10 Pro base. Most integrators we work with are retrofitting legacy 2009-era POS terminals in establishments where the kitchen-display system and receipt printer are hardwired to RS-232. A USB serial adapter works for light load, but when a kitchen-display system is spooling kitchen tickets every 15 seconds and a pole display is updating simultaneously, USB latency and driver conflicts cause dropped transactions or slow-print scenarios. The KC8FCQ050036 eliminates that entirely. We've also seen significant wins on Windows 10 Pro Group Policy management — restaurants with 5–15 terminals can now push security updates, disable USB ports, and enforce VPN policies from a central management console instead of touching each terminal individually.
Technical Highlights:
- Intel Core i3 + 8GB RAM: Handles dual POS sessions (one register running Lightspeed Retail, another running Toast for kitchen orders) without thread contention. Typical transaction latency (swipe to receipt print) is under 2 seconds; adequate for retail throughput of 60–100 transactions per hour per terminal.
- 120GB SSD: Reduces POS application boot time from 90 seconds (spinning drive) to 25 seconds. On a busy morning or after a system reboot, this cuts dead time by 65 seconds per register, which compounds across 5–10 terminals in a chain restaurant.
- Native RS-232 Serial Port: DB9 connector connects directly to legacy thermal printers, kitchen-display systems, and pole displays — no USB adapter drivers, no IRQ conflicts. Critical for venues where parallel infrastructure is 10+ years old and replacement capex is deferred.
- Wi-Fi 802.11ac: Dual-band ensures backup connectivity if wired Ethernet is unavailable. Typical POS cloud-sync bitrate is 50–200 Kbps; 802.11ac provides 10× headroom even on crowded 2.4GHz retail networks.
- Windows 10 Pro: Full desktop OS enables RADIUS authentication, Group Policy, and VPN client — integrates cleanly into corporate IT security frameworks. Retail chains with centralized IT can audit and patch all terminals remotely.
- Fanless Cooling (i3 Thermal Envelope): Passive design reduces acoustic noise to <35 dB — significant for cashier-station ergonomics in high-traffic retail. Active cooling (fan-based systems) create auditory fatigue and require 6–12 month maintenance intervals.
Deployment Considerations:
- Serial printer throughput is typically 9,600 or 19,200 baud. High-volume receipt printing (2+ receipts per second) on older thermal printers may experience queue buildup. Test with your existing printer before final installation.
- 120GB SSD is tight if your POS application stores transaction images (card photos for loyalty programs) or multi-week transaction logs locally. Monitor free disk space; allocate 20GB minimum for OS and POS runtime; limit historical transaction caching to 30 days on-device.
- Wi-Fi 802.11ac requires 5GHz access point within 50 feet. Retail environments with dense shelving or metal HVAC ducts can cause dead zones; deploy site survey or confirm signal strength (-60 dBm or better) before finalizing terminal placement.
- Windows 10 Pro reaches end-of-support October 2025. Establish an upgrade plan to Windows 11 Pro (if i3 CPU supports TPM 2.0) or refresh hardware cycle before that date to maintain security compliance.
- If your venue requires EMV card readers, ensure the POS vendor provides certified USB or network-based PIN-pad integration. Native serial card readers are rare on modern POS systems; legacy magstripe-only setups are not PCI-DSS compliant as of 2024.
The KC8FCQ050036 is a pragmatic choice for independent and regional retailers with existing RS-232 peripheral estates and modest transaction volumes. For single-location or multi-location chains running cloud-first POS (Square, Toast) with USB or network peripherals, a simpler i3-based terminal without serial ports may be more cost-effective. For high-volume or high-security deployments (grocery chains, fuel retailers), step up to i5/16GB with integrated card-reader security modules. If your venue is retrofitting legacy hardware and wants to avoid serial adapter headaches, this terminal justifies its position. See the PioneerPOS catalog for alternative form factors and processor tiers.
