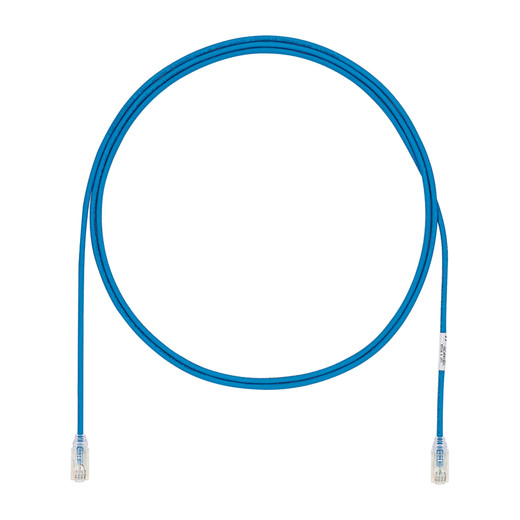

Panduit UTP28X14BU Cat 6A UTP Patch Cord, 14-Foot, 28 AWG, Blue

The Panduit UTP28X14BU is a 14-foot Cat 6A UTP patch cord engineered for high-density data center and enterprise network deployments where cable management and airflow are critical. Built with 28 AWG solid copper conductors, this patch cord delivers 10GBASE-T performance in a 0.185-inch (4.7mm) diameter—significantly thinner than standard 24 AWG patch cords. The reduced profile simplifies cable routing in congested patch panels and server racks, improves airflow around active equipment, and reduces pathway fill in overhead cable trays. Pre-installed RapidID barcodes enable fast port mapping and inventory tracking via Panduit's RapidID software, eliminating manual documentation errors during moves, adds, and changes.

Key Features

• 28 AWG solid copper conductors in 4.7mm diameter cable for reduced bundle size and improved airflow
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements up to 500 MHz
• Patented tangle-free latch prevents snags during installation and ensures fast, reliable release
• RapidID pre-installed barcodes for automated port mapping and inventory management
• Centered de-embedded plug design and integral pair manager for consistent electrical performance
• Supports IEEE 802.3af/at PoE (48 cables per bundle) and 802.3bt Type 3/4 PoE++ (24 cables per bundle)
• 100% factory tested for wire map, NEXT, and return loss
• CM/LSZH rated for both plenum and low-smoke applications

The 28 AWG cable construction delivers measurable advantages in data center and server room environments. Standard 24 AWG Cat 6A patch cords typically measure 6.5–7.0mm in diameter; the UTP28X14BU's 4.7mm profile reduces cross-sectional area by approximately 55%, allowing installers to route significantly more cables through the same pathways and patch panel ports. The reduced diameter also decreases the weight and stiffness of cable bundles, minimizing strain on rear-mounted equipment and reducing the risk of accidental port disconnections during maintenance. Electrical performance remains fully compliant with TIA-568.2-D Category 6A specifications—each cord is 100% factory tested for wire map, near-end crosstalk (NEXT), and return loss to ensure reliable 10 Gbps Ethernet operation over the full 100-meter channel.

The patented tangle-free latch design addresses a persistent pain point in high-density installations: patch cords snagging on adjacent cables during insertion or removal. The low-profile latch geometry prevents the plug from catching on neighboring cables, reducing installation time and eliminating the accidental disconnections that occur when installers pull too hard on tangled cords. RapidID barcode integration streamlines documentation workflows—each cord ships with a pre-printed barcode label that links the physical cable to its logical port assignment in Panduit's RapidID software. Installers scan the barcode during installation to auto-populate port maps, eliminating manual spreadsheet entry and reducing documentation errors that lead to troubleshooting delays during future moves or troubleshooting. The blue jacket color follows industry-standard color coding for horizontal cabling or general-purpose data connections.

This patch cord meets ANSI/TIA-568.2-D Category 6A, ISO 11801 Class EA, and IEC 60603-7 specifications, and is cULus Listed under UL 1863 and CAN/CSA-C22.2. It supports IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3 (60W) and Type 4 (90W) Power over Ethernet applications—critical for powering high-wattage devices like PTZ cameras, wireless access points, and VoIP phones without separate power drops. The CM/LSZH jacket rating provides dual compliance for both commercial plenum installations and environments requiring low-smoke, zero-halogen cable. For data center operators managing hundreds or thousands of patch cord connections, the combination of reduced diameter, factory testing, and integrated asset tracking makes the UTP28X14BU a practical choice for high-density 10GBASE-T deployments where cable management discipline directly impacts cooling efficiency and operational uptime.
