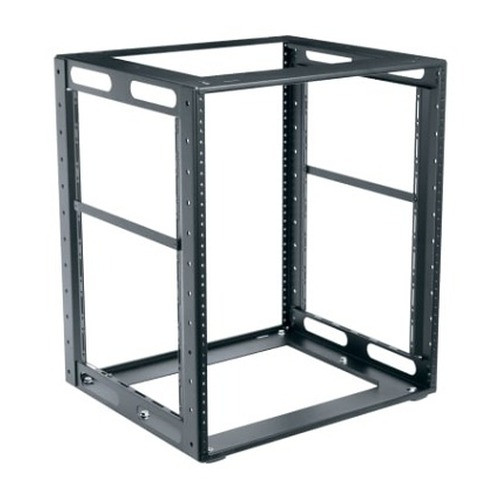

Middle Atlantic 14 Space (24 1/2IN. ) Cabinet Frame Rack 16IN. Deep Steel Black Powder - CFR-14-16

Middle Atlantic CFR-14-16 14U Cabinet Frame Rack

Overview

The Middle Atlantic CFR-14-16 is a 14-space open-frame cabinet rack built for installations where you need a structured mounting solution inside an existing enclosure — not a standalone open-frame deployed in the open. At 16 inches of usable depth and 24.5 inches of usable height across 14U, the CFR-14-16 fits NVRs, access control panels, PoE switches, and other 1U–4U gear that needs secure rail mounting without committing to a full tower rack. The 10-32 tapped rail pattern is the standard threading you'll find on virtually all commercial rack-mount equipment, so compatibility is not a concern for mainstream security hardware. UL-listed at 250 lbs load capacity — enough headroom for a densely loaded 14U bay. TAA-compliant and manufactured in the USA, which satisfies federal procurement requirements without additional documentation hunting. Flat black powder-coat steel finish integrates cleanly into most rack enclosures. Product weight is 20.5 lbs; plan for 24 lbs shipping weight when coordinating delivery logistics.

Compatibility

Designed as an in-cabinet frame — it drops into Middle Atlantic's cabinet enclosures that accept a 14U CFR insert, including their WRK and WMRK series wall-mount cabinets sized for 14U frame installations. The 19.25-inch overall width and 10-32 rail threading accept standard 19-inch rack-mount equipment: network video recorders, managed PoE switches, patch panels, and uninterruptible power supplies within the 250 lb UL-rated load limit. Not intended for open-frame standalone deployment — the CFR series is an in-cabinet insert by design. If your install needs a self-standing open frame, look at Middle Atlantic's ERK or WRK open-frame product lines instead. For wall-mount security system builds, this pairs naturally with a compatible rack enclosure sized to accept a 14U frame.

Installation Notes

Usable depth runs the full 16 inches — confirm your deepest component (NVR, UPS) fits within that envelope before ordering. The 10-32 rail thread requires 10-32 cage nuts or matching screws; these are not included unless specified in the kit. Overall height is 25.43 inches (64.6 cm) — verify cabinet interior clearance before insertion. TAA and UL documentation is available through the Middle Atlantic product line if required for procurement sign-off.
