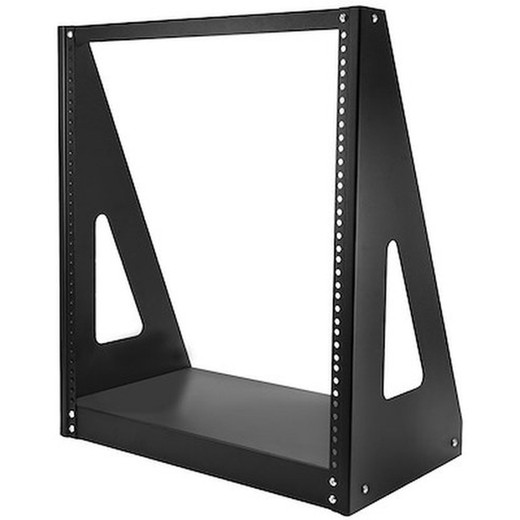

StarTech 2POSTRACK12 12U 2-Post Open Frame Desktop Rack

Overview

The StarTech 2POSTRACK12 is a 12U, 2-post open-frame desktop rack built for environments where a full enclosed cabinet is overkill — think small server closets, broadcast studios, AV control rooms, or network edge deployments where airflow, quick access, and a compact footprint matter more than physical security. At 24 inches tall, 20.4 inches wide, and just 12 inches deep, it fits on a workbench or equipment table without dominating the room, while still conforming to the EIA/ECA-310-E standard that guarantees compatibility with every standard 19-inch rackmount device you'll ever put in it.

Constructed from steel and finished in black, the 2POSTRACK12 arrives with an easy-assembly design that doesn't require specialized tools or a two-person crew. The open-frame, 2-post configuration keeps every piece of gear fully accessible from any angle — front, rear, and sides — which is a real advantage during commissioning, cable dressing, and ongoing maintenance.

Key Features

• 12U Capacity in a Desktop Form Factor: Twelve rack units pack enough space for a small NVR, a PoE switch, a patch panel, and a UPS — the core stack for a network video recorder edge deployment — while keeping the overall height at 24 inches so the unit sits comfortably on a standard equipment table without exceeding eye level.
• 352.8 lb (160 kg) Weight Capacity: That load rating exceeds what a fully populated 12U stack will realistically weigh in most deployments. You won't need to worry about the frame flexing under dense 2U servers or heavy UPS units — this is a commercial-grade steel frame, not a light-duty consumer shelf.
• EIA/ECA-310-E Compliance: This is the governing standard for 19-inch rackmount equipment mounting hole spacing, unit height, and rail geometry. Compliance means every standard 19-inch device — switches, NVRs, patch panels, encoders — drops in without adapter plates or spacing guesswork.
• Circle Mounting Holes for Clip Nuts: The frame uses the round-hole pattern designed for clip-nut (cage nut) hardware rather than tapped threads. This is the correct configuration for rack equipment that ships with standard M6 clip nuts, and it allows you to reposition hardware at any U location without retapping or inserting floating nuts into a square-hole cage.
• Open Frame / 2-Post Design: No side panels, no doors, no rear crossbar blocking cable runs. For IP camera systems and AV control racks where you're constantly dressing fiber, CAT6, and HDMI in and out, the unrestricted access cuts installation time significantly compared to a 4-post enclosed cabinet.
• Steel Construction at 15.1 lb (6.9 kg): The frame is light enough that one person can reposition it on a bench without help, yet the steel build keeps it rigid under load. This is the tradeoff 2-post open frames offer — portability without sacrificing structural integrity.
• Compact 12-Inch Depth: At 12 inches deep, this rack fits flush-mount gear and 1U switches without overhang. Note: deep 2U/4U servers that extend beyond 12 inches will need to be evaluated for rear support — the 2-post design does not provide a rear rail for cantilever loads.
• Lifetime Warranty: StarTech backs the 2POSTRACK12 with a lifetime manufacturer warranty, which is the expected coverage tier for passive steel rack infrastructure. This is a buy-once asset for your rack room.

Integration and Compatibility

The 2POSTRACK12 accepts any standard 19-inch rackmount device that conforms to EIA/ECA-310-E — including PoE network switches, patch panels, 1U/2U NVRs, KVM switches, and AV matrix switchers. The clip-nut mounting hole pattern is compatible with M5, M6, and 10-32 clip nuts (clip nuts sold separately). Because this is a 2-post design, it is best suited for lighter rackmount gear and shallow-depth equipment; deep chassis servers or storage arrays requiring rear-post support should be deployed in a 4-post rack. For environments pairing this frame with surveillance infrastructure, review your PoE switch and NVR chassis depths before committing to this configuration.

The open-frame design is also well-suited for studio and broadcast environments that require frequent front-panel access — media servers, video encoders, and signal distribution equipment all benefit from the unrestricted front and rear access this frame provides. If cable management is a priority, standard 1U horizontal rack cable management panels mount directly to the round-hole rails.

Frequently Asked Questions

Q: What is the maximum weight capacity of the StarTech 2POSTRACK12?

A: The 2POSTRACK12 supports up to 352.8 lb (160 kg) of rackmount equipment — well above the realistic load of a fully populated 12U stack in most small server, surveillance, or AV deployments.

Q: What mounting hole type does the 2POSTRACK12 use?

A: The 2POSTRACK12 uses round (circle) mounting holes designed for clip-nut hardware. This is the standard configuration for M5, M6, and 10-32 clip nuts. Clip nuts are not included and must be purchased separately to match your specific rack equipment.

Q: Is the 2POSTRACK12 compatible with standard 19-inch rackmount equipment?

A: Yes. The 2POSTRACK12 is EIA/ECA-310-E compliant, which is the industry standard governing 19-inch rack rail spacing and unit heights. Any standard 1U, 2U, or larger device rated for 19-inch mounting will install without adapters.

Q: What is the depth of the 2POSTRACK12, and will it accommodate deep servers?

A: The frame itself is 12 inches (30.5 cm) deep. As a 2-post design, it does not include a rear mounting rail. Equipment that requires rear-post support — such as deep 2U or 4U chassis servers — should be installed in a 4-post rack instead. The 2POSTRACK12 is best suited for shallow rackmount gear like 1U switches, patch panels, NVRs, and AV equipment.

Q: What warranty does the 2POSTRACK12 carry?

A: StarTech covers the 2POSTRACK12 with a lifetime manufacturer warranty.

Q: Does the 2POSTRACK12 require any special tools to assemble?

A: No. StarTech lists easy assembly as a key feature of this frame. No specialized tools are required for standard assembly.

Jerry Tildsen

The 2POSTRACK12 comes up often in small-footprint surveillance and AV deployments where someone needs a structured home for 8–12 rack units of equipment but doesn't want to dedicate floor space to a full enclosure. The 12-inch depth is the spec I always lead with in pre-sales conversations — it immediately tells you this is a 2-post frame for shallow equipment, not a chassis server rack.

Technical Highlights:

• 352.8 lb Load Rating: A fully loaded 12U stack of 1U PoE switches, a 2U NVR, a patch panel, and a UPS typically lands well under 150 lb — so the 160 kg capacity gives you structural headroom to spare and no concerns about frame flex during operation.
• EIA/ECA-310-E Compliance: This standard governs rail spacing and U-height geometry. Compliance means zero compatibility surprises — every vendor's 19-inch gear mounts cleanly without shimming or adapter plates.
• 15.1 lb Frame Weight: Light enough that a single technician can reposition the rack on a bench during commissioning without help, which matters on small-team integrator installs where you're doing everything yourself.

Deployment Considerations:

• The round-hole clip-nut pattern is correct for modern rack equipment, but clip nuts are not included — order M6 clip nuts alongside this frame or you will be waiting on a parts run before you can mount anything.
• The 2-post design provides no rear rail support. Any equipment where the chassis extends well beyond 12 inches needs to be assessed carefully — cantilever loads on a 2-post frame can stress the mounting ears on the equipment itself, not the rack. For deep chassis gear, a 4-post frame is the right call.

The 2POSTRACK12 is the right frame for a wall-closet or tabletop surveillance head-end: NVR, PoE switch, patch panel, and a small UPS — all shallow-depth, all accessible from the front, all fitting comfortably inside 12U and well under the 352.8 lb load limit. It's a practical choice for edge network closets and broadcast studio racks where enclosed cabinets would just slow down everyday access.
