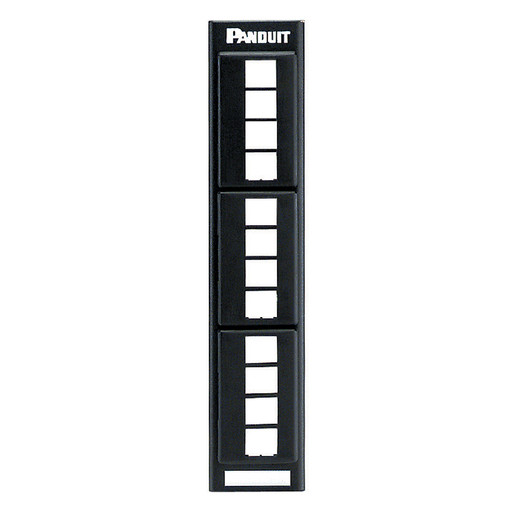

Panduit NKFP12W 12-Port NetKey Modular Flat Patch Panel

Overview

The Panduit NKFP12W is a 12-port flat modular patch panel from the Panduit NetKey copper cabling line designed for unshielded keystone-module installations where wall mounting is the only practical option. It mounts directly onto 89D brackets — no rack enclosure required — making it the right answer for remote IDF closets, server room wall sections, and security headend builds that lack rack space or don't justify a full cabinet. Front-access design means you can dress, label, and re-patch without pulling the panel off the wall.

At 2.04 in. wide and 10 in. tall, the NKFP12W is intentionally compact. It ships as a blank panel: you populate it with up to 12 individual NetKey keystone modules (sold separately), giving you control over port type mix — Cat6, Cat6A, fiber, or specialty ports — without committing to a factory-wired configuration. RoHS compliance is verified for this SKU.

Key Features

• 12 Keystone Module Slots (Unshielded): Supports any combination of NetKey unshielded keystone inserts, so a single panel can carry mixed media (data, voice, fiber breakout) without installing separate faceplates. Practical for small comms rooms handling both IP camera drops and workstation runs off the same patch point.
• 89D Wall-Bracket Compatibility: Designed to install on standard Panduit 89D surface-mount brackets — the same hardware used in open-plan wall runs and MDF/IDF wall-mount kits. This means the NKFP12W integrates into an existing structured cabling patch panel layout without special adapters or custom brackets.
• Front-Access Design: All 12 ports face forward, so installation and post-move adds/changes don't require removing the panel or fishing behind the wall bracket. In a tight comms closet, that matters — you're not fighting cable slack every time a port changes.
• Adhesive Label Strip: Factory-ready label strip runs across the panel face. Port identification that stays with the panel rather than relying on tie-on tags that fall off or permanent marker that can't be updated is a practical detail on any high-churn patch field.
• Cold-Rolled Steel (CRS) Construction: CRS body means the panel holds its shape under cable pull tension and repeated module swap cycles. Flimsy plastic-bodied panels flex and crack at mount points; this one won't.
• RoHS-Compliant: Verified RoHS compliance on the NKFP12W SKU, which is relevant for deployments in jurisdictions with electronic waste regulations and for enterprise procurement checklists that require it.
• Compact Form Factor — 2.04 in. × 10 in.: At just over 2 inches wide, this panel fits wall locations that can't accommodate a standard 1U 19-inch rack mount. Useful in branch offices, edge locations, or above-ceiling cable consolidation points where a full enclosure is over-engineered.

Integration & Compatibility

The NKFP12W is part of Panduit's broader NetKey structured cabling system. It accepts any 12 NetKey keystone modules for unshielded applications — you choose the port types based on your cabling infrastructure. The 89D bracket mounting system is a Panduit standard found across their wall-field and surface-raceway product lines, so if you're already running Panduit wall duct or surface mount boxes, this panel slots into the same ecosystem without compatibility questions.

Because modules are field-populated, this panel is compatible with PoE switch home-run topologies where a mix of IP cameras, access control readers, and workstations terminate at the same wall-mount field. Plan your module selection before ordering — the NKFP12W ships blank, and the panel itself ships individually (package quantity: 1), though carton quantity is 10 if you're stocking multiple locations.

Frequently Asked Questions

Q: Does the NKFP12W come pre-loaded with keystone modules?

A: No. The NKFP12W ships as a blank 12-slot panel. Keystone modules must be ordered separately. This lets you specify port types — Cat6, Cat6A, fiber, or other NetKey unshielded inserts — based on your actual cabling requirements.

Q: What bracket does the NKFP12W mount to?

A: It is designed to mount onto Panduit 89D surface-mount brackets. This is a standard Panduit hardware component used across their wall-field and surface-raceway ecosystem.

Q: Is the NKFP12W suitable for shielded (STP) cabling?

A: No. The NKFP12W is specified for unshielded (UTP) applications only. For shielded installations, you would need a shielded-compatible panel from the Panduit line.

Q: What are the exact dimensions of the NKFP12W?

A: The panel measures 2.04 in. (51.8 mm) wide and 10 in. (254 mm) tall. Depth is not specified in available documentation.

Q: Is the NKFP12W RoHS compliant?

A: Yes. RoHS compliance is verified for this SKU.

Q: How many panels come in a carton?

A: Carton quantity is 10. Each panel is sold individually (package quantity: 1).
