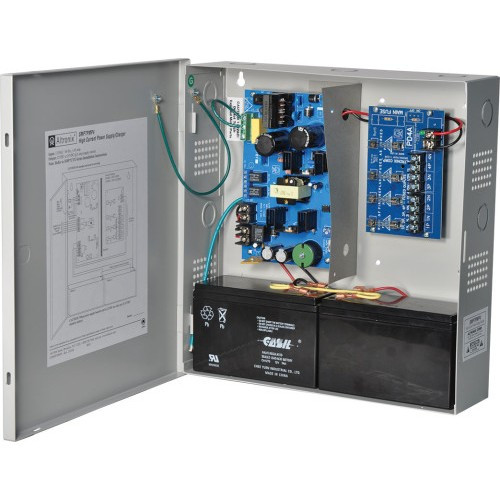

Altronix 12/24VDC 6 A 4 Fuse PS 220V - SMP7PMP4220

Altronix SMP7PMP4220 12/24VDC 6A 4 Fuse PS 220V

Overview

The Altronix SMP7PMP4220 is a versatile 12/24VDC power supply designed to provide regulated power to multiple surveillance devices from a single 220VAC input. It features four fused outputs, each individually protected, allowing for granular control and fault isolation. This unit is ideal for installations where a central power distribution point is needed for cameras, encoders, or other low-voltage security equipment, simplifying wiring and management. The SMP7PMP4220 ensures stable voltage delivery, critical for reliable video transmission and device operation.

Compatibility

This power supply is designed for use with a wide range of low-voltage DC surveillance devices, including IP cameras, analog cameras, PTZ controllers, IR illuminators, and video encoders that require 12VDC or 24VDC input. It is compatible with systems requiring up to 6A total current draw across all outputs. Specific compatibility extends to devices from brands such as Axis Communications, Hanwha Vision, Hikvision, Dahua, and Pelco, provided their voltage and current requirements are met.

Installation Notes

Input voltage is 220VAC. Each of the four outputs is individually fused for protection and easy replacement. The unit requires a standard 220VAC power connection. Ensure the total current draw from all connected devices does not exceed the 6A maximum rating of the power supply. Proper ventilation should be maintained around the unit to prevent overheating.

What's in the Box

• 1x Altronix SMP7PMP4220 Power Supply
• 4x Fuses (pre-installed)
• 1x Mounting template
