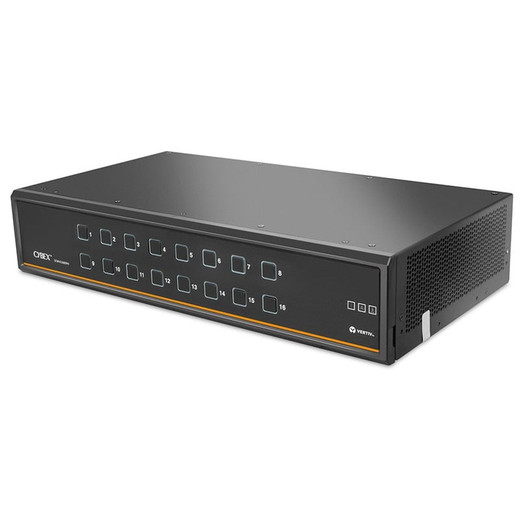

Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Vertiv 11656VH Metered PDU

Overview

The Vertiv 11656VH is a metered, single-phase power distribution unit designed for horizontal rack mounting. It provides 10 NEMA 5-20R outlets, delivering 120V power to IT equipment. With a 20A maximum current capacity and over-current protection, this PDU is suitable for standard server rack environments where granular power monitoring at the outlet level is not required, but overall load monitoring is. The 3.05m cable length offers flexibility in deployment.

Compatibility

This PDU is compatible with standard 19-inch server racks (0U mounting). It accepts a NEMA L5-20P plug and is designed for nominal input voltages of 100-120V AC at 50/60 Hz. The NEMA 5-20R outlets are standard for many IT peripherals and servers in North America.

Installation Notes

The unit mounts horizontally within a rack. Ensure the power source circuit is rated for 20A and utilizes the NEMA L5-20R receptacle. The PDU features an LED indicator for power status and offers over-current protection to safeguard connected equipment from excessive load draws.

Expert Analysis
Specifications
PDU types: Metered
Type: Single-phase
Rack capacity: 0U
Mounting: Horizontal
Product colour: Black
On/off switch: No
AC outlets quantity: 10 AC outlet(s)
Power plug: NEMA L5-20P
AC outlet types: NEMA 5-20R
LED indicators: Power
Cable length: 3.05 m
Nominal input voltage: 100-120 V
AC input frequency: 50/60 Hz
Maximum current: 20 A
Block 1 output current: 20 A
Output voltage: 120 V
Load capacity: 120 VA
Power protection features: Over current
