Panduit UTP28X10GY Cat6A 28AWG 10ft Patch Cord Gray

Panduit UTP28X10GY Cat6A 28 AWG Patch Cord

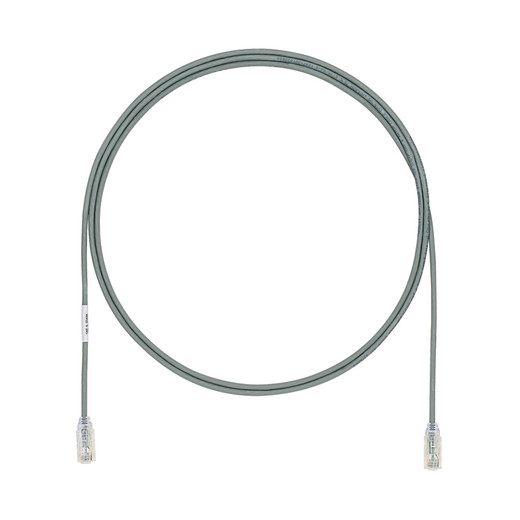

The Panduit UTP28X10GY is a 10-foot Cat6A patch cord engineered for high-density data center and enterprise network environments where cable congestion and airflow are critical concerns. Built with 28 AWG solid copper conductors instead of the standard 24 AWG, this 4.7mm-diameter cord delivers full 10GBASE-T performance in a 35% smaller profile than conventional Cat6A patch cables. The slim design cuts cable-bundle bulk by half in high-port-count racks, improving airflow across hot aisles and simplifying moves-adds-changes when you're working behind packed patch panels. Gray CM/LSZH jacket meets both North American plenum-equivalent and European low-smoke requirements, and the factory-installed RapidID barcode enables instant port mapping via Panduit's RapidID software—eliminating the manual documentation step that typically adds 3-5 minutes per drop during rack audits or MAC work.

Key Features

• 28 AWG slim-profile construction (4.7mm diameter) reduces bundle size by 35% vs. standard Cat6A patch cords, improving rack airflow and cable management in high-density installations
• Full Cat6A performance to 500 MHz—supports 10GBASE-T Ethernet, backbone aggregation, server virtualization, and IEEE 802.3bt PoE++ Type 3 (up to 48 cables in a bundle) and Type 4 (24 cables in a bundle)
• Patented tangle-free latch design with centered release tab prevents snags on adjacent cables and ensures fast, single-hand disconnect during MAC work
• Pre-installed RapidID barcode eliminates manual labeling and integrates with RapidID port-mapping software for instant documentation and audit trails
• CM/LSZH dual-rated jacket complies with NEC Article 800 and IEC 60332-3 low-smoke/zero-halogen requirements for mixed US and EU deployments
• 100% factory tested for wire map, NEXT, and return loss—ships with serialized test report for certification package compliance

Panduit's TX6A-28 platform uses solid 28 AWG copper conductors in an unshielded twisted-pair (U/UTP) configuration, meeting ANSI/TIA-1096-A and IEC 60603-7 channel performance requirements without the bulk or termination complexity of shielded variants. The centered de-embedded plug design incorporates an integral pair manager that maintains twist geometry through the RJ45 connector, ensuring channel insertion loss stays below 2.1 dB at 500 MHz even in worst-case installed conditions—critical when you're chaining multiple patch cords in a SAN fabric or stacking 10GBASE-T links across distribution switches. The slim 4.7mm jacket diameter matters most in 48-port 1U switches or blade server chassis where traditional 6.5mm Cat6A cords create bundle diameters that block airflow or force you to leave cable-management arms open. A bundle of 48 UTP28X10GY cords occupies roughly the same space as 28 standard Cat6A cords, cutting the effective cable volume by 40% and letting you close arms and doors without kinking or over-bending.

Deploy the UTP28X10GY in data center top-of-rack to server connections, SAN fabric links, hyperconverged infrastructure clusters, or any 10GBASE-T application where rack density and thermal management drive design. The 10-foot length handles typical cabinet-to-cabinet adjacency or mid-rack to top-of-rack runs without excess slack; for longer distances or inter-row links, Panduit offers the same TX6A-28 platform in 15, 25, and 50-foot lengths. The dual CM/LSZH rating simplifies procurement for multinational enterprises or co-location facilities serving European and North American customers under one SKU—no need to split inventory or cross-reference regional variants. The factory RapidID barcode speeds day-two operations: scan the barcode with the RapidID app, assign the logical port and VLAN, and the database auto-populates the physical layer documentation. During outages or MAC tickets, techs scan the cord to pull the circuit ID and contact info instead of tracing cables or deciphering hand-written labels that fade or fall off after 18 months in service.

The UTP28X10GY ships in single-unit packaging (10 per carton for stock orders) and carries Panduit's standard manufacturer warranty. It meets ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7 modular plug standards, supports IEEE 802.3af/802.3at PoE and 802.3bt PoE++ applications (Type 3 up to 48 cables in a bundle, Type 4 up to 24 cables), and includes serialized performance test data traceable to the manufacturing lot. If you're building out a new hyperconverged pod, refreshing legacy 1G infrastructure to 10G, or trying to reclaim airflow in an over-cabled cabinet, the 28 AWG construction solves the cable-congestion problem without sacrificing electrical performance or requiring exotic cable-management hardware. The tangle-free latch and slim profile mean faster installs, cleaner racks, and fewer service calls from kinked or damaged cords—tangible labor savings when you're managing 500+ drops per site.
