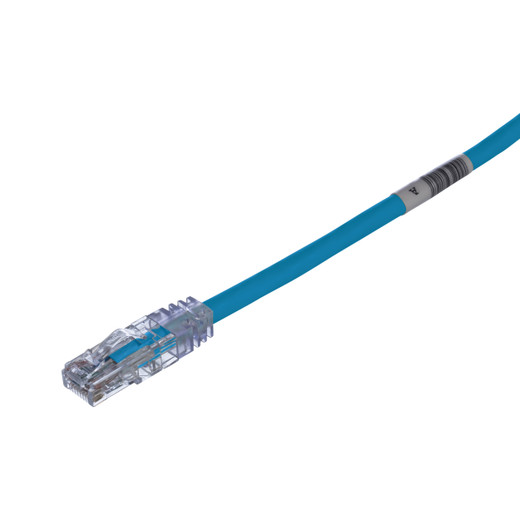

Panduit UTPSP10BUY Patch Cord

Overview

The Panduit UTPSP10BUY is a 10-foot, blue, Cat6 UTP (Unshielded Twisted Pair) patch cord designed for reliable network connectivity. Constructed with 24 AWG stranded copper conductors, this cable supports Gigabit Ethernet (1000BASE-T) and 10GBASE-T over limited distances, making it suitable for data centers, enterprise networks, and VoIP applications. The integrated tangle-free latch on the modular plug prevents snags during moves, adds, and changes, while the slender strain relief boot offers easy access in high-density rack environments. Pre-installed RapidID barcodes simplify port mapping with compatible software.

Compatibility

This patch cord is engineered to exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements up to 500 MHz. It is compatible with standard RJ45 modular plug interfaces found in network switches, patch panels, and network interface cards for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T. It also supports ATM and digital video applications.

Installation Notes

The CM (Communications Multipurpose) flammability rating indicates suitability for use in riser or general-purpose horizontal applications within commercial buildings. The cable features stranded conductors for flexibility, beneficial during installation in tight spaces or when routing through conduits. The tangle-free latch mechanism on the modular plugs is designed for easy, snag-free insertion and removal, streamlining deployment and maintenance in high-density environments.
