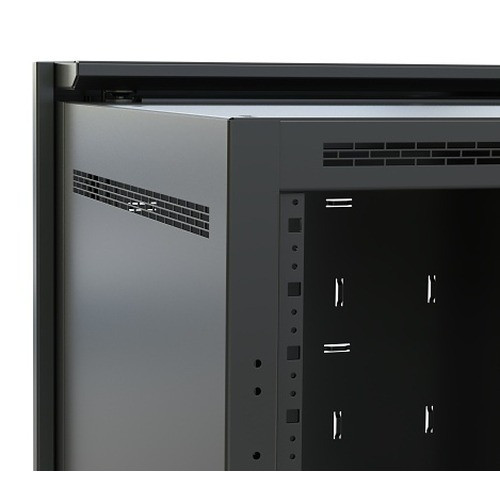

Middle Atlantic DWR-10-17 10U Pivoting Wall Rack
Overview
The Middle Atlantic DWR-10-17 is a 10-space (10U) sectional wall rack built for AV, security, and IT integrators who need a structured, steel enclosure on the wall rather than a full floor-standing cabinet. At 17 inches of total depth with 15 inches of usable interior, it handles the majority of network and security rack equipment — NVRs, PoE switches, patch panels, and small UPS units — without demanding the footprint or ceiling clearance of a floor rack. The DWR-10-17 (often searched as DWR 10 17) ships TAA-compliant out of Mexico, making it a straightforward procurement choice for federal facilities and government-contracted integrators.
Key Features
- 10U / 17.5 in. Usable Height: Ten rack units of mounting space translates to a practical mix of 1U switches, 2U NVRs, and 1U patch panels in a single enclosure — enough headroom for a complete edge security node without jumping to a full 12U or 14U cabinet.
- 200 lb UL-Rated Load Capacity: The UL-listed 200 lb (90.7 kg) load rating is not a marketing estimate — it is a tested structural figure. You can fill every unit with dense equipment and not worry about bracket stress on a drywall-anchored or stud-mounted installation.
- 15 in. Usable Depth: The 15-inch usable interior accommodates most 1U and 2U network appliances without forcing you to angle cables or leave doors open permanently. Equipment deeper than 15 inches — some UPS units or certain deep-chassis NVRs — will not fit; verify your deepest device before ordering.
- Seismic Rated (Patent No. 7278183): The seismic load rating under patent 7278183 matters for deployments in California, the Pacific Northwest, or any jurisdiction with enforced seismic building codes. If your AHJ requires seismic documentation, this rack has it; most competing wall racks in this price class do not.
- Black Wrinkle Powder Coat Steel Construction: Heavy-gauge steel with a wrinkle powder coat finish resists scratches during cable management and looks consistent in finished IDF closets or server rooms. The textured surface hides minor scuffs better than smooth-coat alternatives.
- Forward Rackrail Design: The forward rackrail positions equipment toward the front of the enclosure, leaving rear cable space accessible even in shallow installations. This is the correct configuration for most AV and security gear, where front-panel access matters more than deep rear clearance.
- Forward Compatible Architecture: Middle Atlantic's forward-compatible design allows this unit to integrate with companion sectional enclosures and accessory panels in the DWR family — useful when a 10U installation grows and you need to expand capacity without replacing the entire enclosure.
- TAA Compliant: Compliant with the Trade Agreements Act, confirming country-of-origin meets federal procurement requirements. Required for GSA schedule orders and many state/local government bids — confirm with your contracting officer, but this rack checks the box.
- No Front Door: The DWR-10-17 ships without a front door. For open IDF closets or back-of-house security rooms this is fine — it actually improves airflow and front-panel access. If your installation requires a locked or vented front door, budget for the appropriate Middle Atlantic door accessory separately.
Integration & Compatibility
The DWR-10-17 accepts standard 19-inch EIA-310 rack equipment. With 15 inches of usable depth, it pairs well with most 1U managed PoE switches, 2U NVRs up to 15 inches deep, 1U patch panels, and 1U power strips. The forward rackrail design is compatible with standard rack ears and cage nut hardware. Integrators deploying network video recorders alongside PoE switching infrastructure will find the 10U capacity sufficient for a 4–8 camera edge node with room for a patch panel and a 1U power distribution unit. For larger installations requiring 12U or more, review the broader Middle Atlantic rack lineup for companion sectional units. A rack planning guide can help you map out equipment before ordering.
Frequently Asked Questions
Q: Is the Middle Atlantic DWR-10-17 TAA compliant?
A: Yes. The DWR-10-17 is TAA compliant and meets CSA TAA standards, with country of origin listed as Mexico. It is suitable for GSA schedule procurement and federal/state government installations that require TAA compliance.
Q: What is the actual load capacity of the DWR-10-17?
A: The UL-listed load capacity is 200 lbs (90.7 kg). This is a tested, UL-verified structural rating — not a manufacturer estimate.
Q: How deep can the equipment be that I install in the DWR-10-17?
A: The usable interior depth is 15 inches (38.1 cm). Any rack-mount device deeper than 15 inches will not fit. Verify the chassis depth of your deepest equipment — particularly UPS units and some NVR models — before ordering.
Q: Does the DWR-10-17 include a front door?
A: No. The DWR-10-17 does not include a front door. If your installation requires a lockable or vented front panel, a compatible door accessory must be ordered separately.
Q: Is the DWR-10-17 seismic rated?
A: Yes. The DWR-10-17 is seismic rated under U.S. Patent No. 7278183. This is relevant for installations in seismic zones or jurisdictions where building codes require seismic-rated rack infrastructure.
Q: How many rack units does the DWR-10-17 provide?
A: The DWR-10-17 provides 10 rack units (10U) of mounting space, with a usable height of 17.5 inches (44.5 cm).
