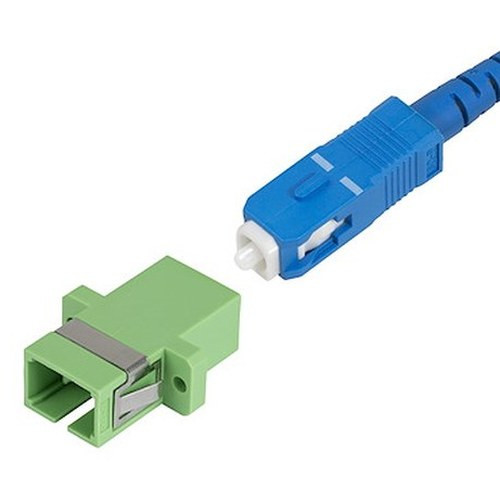

StarTech SIMPLEXSCAPCF SC Simplex Single-Mode Fiber Coupler 10-Pack

Overview

The StarTech SIMPLEXSCAPCF is a 10-pack of SC simplex single-mode fiber couplers engineered for patch panel builds, fiber distribution frames, and structured cabling installations where repeatable, low-loss connections are non-negotiable. Each coupler is rated for OS2 9/125µm single-mode fiber across a broad wavelength window of 1260nm to 1625nm — covering every common single-mode transmission band from O-band through U-band — so you can deploy these across mixed WDM and standard telecom runs without sourcing different hardware for each application.

At 0.2dB maximum insertion loss per mating, these couplers are well within the ITU-T G.652 link budget allocations even on long hauls. If you're building out a fiber backbone to support a IP camera network or structured cabling for a surveillance infrastructure, every tenth of a dB matters when you're stacking multiple connection points across a run. These couplers won't be the weak link.

Key Features

• OS2 9/125µm Single-Mode: Designed specifically for tight-tolerance single-mode fiber. OS2 (ITU-T G.652D) supports ultra-low water peak attenuation, which translates to consistent signal integrity across the full 1260–1625nm band — not just the 1310nm or 1550nm sweet spots. If your fiber plant mixes CWDM or DWDM channels, these couplers won't introduce wavelength-dependent insertion loss artifacts.
• 0.2dB Insertion Loss: Each coupler contributes no more than 0.2dB of signal loss at the mating interface. In practical terms, on a 10Gbps or 100Gbps single-mode link with a 3–4dB link budget margin, a single SIMPLEXSCAPCF coupler consumes only 5–7% of that budget — leaving meaningful headroom for fiber length attenuation and connector end-face losses.
• 1/10/40/100Gbps Data Rate Support: These couplers are passive optical components — they do not limit your data rate by themselves, but their mechanical precision (ferrule alignment, return loss) is what determines whether high-baud-rate signals pass cleanly. Rated support through 100Gbps means you won't be re-cabling when you upgrade from 10G to 40G or 100G infrastructure.
• 1260nm to 1625nm Wavelength Range: This is one of the widest wavelength windows available for SC single-mode couplers. It covers O-band (1260–1360nm), E-band, S-band, C-band (1530–1565nm), L-band (1565–1625nm) — meaning these couplers are compatible with virtually every single-mode transceiver on the market today, including coherent optics and ROADM-based systems.
• SC Simplex Straight Connector Style: The straight-body SC simplex form factor mates with any standard SC simplex adapter or SC simplex patch cord. SC connectors use a push-pull locking mechanism that provides tactile confirmation of seating — important in panel environments where you can't always visually verify each connection.
• -40°C to 85°C Operating Range: Rated from -40°C to 85°C operating and storage, these couplers can be deployed in outdoor fiber enclosures, rooftop distribution boxes, or industrial environments without thermal derating. Most passive fiber components are rated to 70°C — the 85°C ceiling here gives extra margin in direct-sun enclosures.
• 0% to 90% Humidity Rating: The non-condensing humidity envelope to 90% means these couplers are suitable for telecom closets and equipment rooms that don't have tight climate control — common in warehouse and industrial facilities where HVAC is inconsistent.
• Color-Coded Green Housing: The green body is the industry convention for single-mode SC adapters, providing at-a-glance identification in dense patch panels. If you're managing a mixed single-mode/multimode panel, the green immediately flags these as SM-only — mismatching SM and MM fiber is a common installation error that wastes significant troubleshooting time.
• Compact Form Factor (1.1 x 0.9 x 0.4 in): At under half an inch in height and just over an inch in length, each coupler is sized for standard 1U patch panel cutouts. The 0.1 oz per-unit weight means even a fully loaded 24-port panel stays well within rack weight limits.
• 10-Unit Pack Quantity: Sold in packs of 10, which aligns with standard patch panel port groupings (half a 24-port panel, a full 12-port blank panel). Reduces per-unit cost on panel builds compared to single-unit purchases.

Integration and Compatibility

These couplers are mechanically compatible with any SC simplex single-mode patch cord and SC-terminated single-mode transceivers, including SFP, SFP+, QSFP+, and QSFP28 modules using SC connectors. They install directly into standard SC simplex panel cutouts on 1U fiber patch panels, fiber enclosures, and surface-mount boxes. No tools are required — the SC push-pull mechanism seats and locks without hardware.

For enterprise network switch deployments running single-mode fiber uplinks, the SIMPLEXSCAPCF provides the panel-mount coupling point between horizontal fiber runs and equipment patch cords. The 100Gbps data rate rating means these couplers are appropriate for current-generation spine-leaf architectures and high-bandwidth surveillance backbones connecting network video recorders to aggregation switches across campus fiber.

If you're building a structured fiber optic cabling infrastructure for a multi-building security deployment, these couplers provide the IDF/MDF interconnect points without introducing measurable link degradation. Pair with OS2 SC simplex patch cords rated to the same insertion loss spec to keep end-to-end link budgets predictable. Consult a fiber optic planning guide to map insertion loss across all mating points before commissioning long-haul runs.

What's in the Box

• 10x SC Simplex Single-Mode OS2 Fiber Couplers (green)

Frequently Asked Questions

Q: What fiber type are the SIMPLEXSCAPCF couplers designed for?

A: They are designed for OS2 single-mode fiber with a 9/125µm core/cladding diameter. They are not intended for OM1, OM2, OM3, or OM4 multimode fiber — those use beige, black, aqua, or violet-colored adapters respectively.

Q: What is the insertion loss rating per coupler?

A: Each coupler is rated at a maximum 0.2dB insertion loss at the mating interface. This is the signal loss contributed by the coupler itself, independent of fiber attenuation or connector end-face quality.

Q: What wavelengths are compatible with the SIMPLEXSCAPCF?

A: The couplers support a wavelength range of 1260nm to 1625nm, covering O-band through L-band single-mode transmission windows. This includes standard 1310nm and 1550nm single-mode transceivers as well as CWDM and DWDM systems operating within that range.

Q: What data rates do these couplers support?

A: The SIMPLEXSCAPCF is rated for 1, 10, 40, and 100Gbps data rates. As passive optical components, they do not impose a bandwidth ceiling by themselves, but their alignment precision is characterized to support signals through 100Gbps without introducing additional loss.

Q: Can these couplers be used in outdoor or industrial fiber enclosures?

A: Yes. The operating temperature range is -40°C to 85°C with humidity tolerance up to 90% non-condensing. This makes them suitable for outdoor fiber enclosures, rooftop equipment boxes, and industrial environments subject to temperature swings, provided the enclosure itself provides adequate physical protection.

Q: Are these SC simplex or SC duplex couplers?

A: These are SC simplex couplers — each unit handles a single fiber strand. If your application requires duplex SC connections (two fibers side by side), you would need SC duplex adapters, which are a separate product.

Jerry Tildsen

The spec that most installers gloss over on passive fiber components is insertion loss — and on the SIMPLEXSCAPCF, StarTech rates it at 0.2dB per mating, which is where you want it for any backbone run that's going to stack multiple connection points between a transceiver and a remote NVR or switch. If you're building a 10-port IDF panel, those 10 couplers contribute at most 2dB total coupling loss — that's predictable and budget-able.

Technical Highlights:

• 0.2dB Insertion Loss: At 0.2dB per coupler, a fully loaded 12-port panel build contributes only 2.4dB of coupling loss — well inside the 3dB loss allocation most 10G single-mode link budgets reserve for connectors and splices.
• 1260–1625nm Wavelength Coverage: The full O-through-L band window means these couplers won't need to be swapped out if the fiber plant later supports CWDM or DWDM transceiver upgrades — the passive component stays compatible.
• -40°C to 85°C Rated: The 85°C ceiling is 15°C higher than many competing SC adapters. In direct-sun outdoor enclosures in southern climates, internal temperatures regularly exceed 70°C on hot days — this rating provides real-world margin where lower-spec couplers can begin to degrade ferrule alignment.

Deployment Considerations:

• The SIMPLEXSCAPCF is OS2 single-mode only — the green color coding is your visual check at the panel. If multimode fiber is also present in the same enclosure, enforce a strict color-coding discipline during installation; a mismatched MM patch cord seated into an SM coupler will produce severe insertion loss that can look like a dead port on initial testing.
• These are SC simplex units — if your transceiver modules use duplex SC (two separate fiber strands for Tx/Rx), you'll need to install two couplers per port. Confirm your transceiver interface type before ordering panel quantities.

For a multi-building enterprise surveillance backbone — specifically a campus fiber run connecting NVRs in a central security operations room to IDF closets in each building — the SIMPLEXSCAPCF is the right panel-mount coupler: 100Gbps-rated for infrastructure longevity, 0.2dB loss for clean link budgets, and an 85°C operating ceiling for IDF closets that don't always have dedicated cooling.
