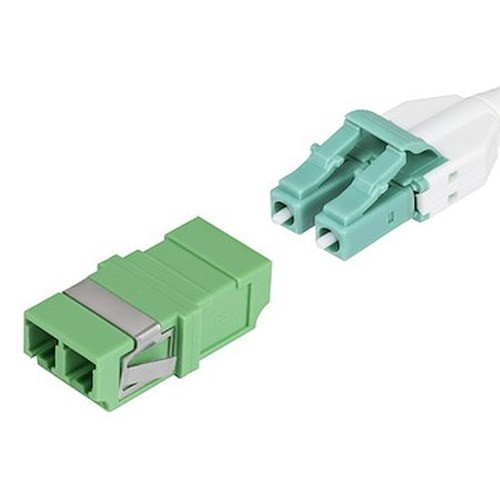

StarTech DUPLEXLCAPCNOF LC Duplex to LC Duplex SC-Footprint Single-Mode Fiber Coupler 10-Pack

Overview

The StarTech DUPLEXLCAPCNOF is a 10-pack of OS2 single-mode LC duplex couplers housed in an SC footprint — the practical answer to a very specific infrastructure problem: patching LC fiber runs through panels and faceplates originally punched for SC connectors. Rather than replacing existing fiber panels or retrofitting adapter plates, you snap these in and maintain LC-to-LC continuity without altering your rack layout. Each coupler is built for 9/125µm single-mode glass, covering the full OS1/OS2 classification range, and is rated across the entire C- and L-band telecom window from 1260nm to 1625nm — so they work equally well on CWDM, 10G, 40G, and 100G single-mode links without wavelength restriction.

For integrators wiring structured fiber in data centers, IDF closets, or long-haul security backbones, the DUPLEXLCAPCNOF simplifies panel compatibility while keeping optical performance where it needs to be for enterprise-grade deployments. Ten couplers per pack means a single order covers a full patch panel row or a complete IDF build-out.

Key Features

• SC Footprint, LC Duplex Interface: Fits standard SC-keyed panel cutouts while accepting LC duplex connectors on both sides — eliminates the need to re-punch or replace fiber panels when migrating from SC to LC infrastructure. One adapter resolves a common physical mismatch without a panel replacement project.
• 0.2dB Maximum Insertion Loss: At 0.2dB per mating, optical signal degradation is kept to a minimum. In a multi-hop fiber run with several inline couplers, this low-loss spec prevents cumulative attenuation from eating into your link budget — critical on long single-mode runs pushing 10G or higher data rates.
• OS1/OS2 Compatible, 9/125µm Glass: Supports both OS1 (tight-buffered, indoor) and OS2 (loose-tube, outdoor/campus) single-mode fiber. Deploy these in the same panel whether you're terminating indoor riser cable or outdoor direct-burial runs without needing separate coupler SKUs.
• Full Telecom Band Coverage (1260–1625nm): The 1260nm to 1625nm operating window covers O-, E-, S-, C-, and L-band simultaneously. This means the couplers are not just compatible with standard 1310nm and 1550nm single-mode links but also work with CWDM and DWDM wavelength-multiplexed systems — no need to spec wavelength-specific components for mixed-wavelength plants.
• Industrial Temperature Range (-40°C to +85°C): Rated for -40°C to +85°C operating and storage — not just a data center component. Deployable in outdoor-rated enclosures, rooftop panels, or unheated utility spaces where typical commercial-grade fiber accessories would fail in winter. The matching storage range means long shelf life in warehouse inventory.
• PBT Housing: Polybutylene terephthalate (PBT) construction resists heat, chemicals, and dimensional creep under mechanical load — more stable than generic ABS plastic housings in environments with thermal cycling. The SC footprint clicks and locks into standard panel cutouts without deforming over time.
• Compact Form Factor (1.1 x 0.6 x 0.4 in): At under 1.1 inches in length, these couplers don't add stack depth behind a patch panel. In tight 1U or 2U fiber trays where rear clearance to the cable manager matters, the small footprint keeps bends in the fiber gentle and cable routing clean.
• 10-Pack Quantity: A single order covers a 12-port SC panel row (with two spare) or populates a 10-port tray completely. Buying in 10-packs reduces per-unit cost and keeps spares on the shelf for moves, adds, and changes without a separate reorder.
• 3-Year Manufacturer Warranty: StarTech backs these couplers with a 3-year warranty — meaningful for passive fiber components in production infrastructure where replacement access can be disruptive.

Integration & Compatibility

The DUPLEXLCAPCNOF is designed for any SC-keyed fiber panel or faceplate that needs to accept LC duplex connectors. Common applications include: 1U/2U fiber patch panels in data center MMRs and IDFs, wall-mount fiber faceplates in office or campus structured cabling, security camera fiber backbone junction boxes where LC SFP-based switches feed long single-mode runs, and outdoor fiber distribution enclosures on campus or industrial networks.

Compatible with any OS1 or OS2 9/125µm single-mode LC duplex patch cord. Works across all standard single-mode SFP, SFP+, and SFP28 transceiver wavelengths (1310nm, 1490nm, 1550nm, and CWDM grid wavelengths). Not intended for multimode fiber — multimode LC adapters use a different ferrule size and sleeve, and mixing them risks high insertion loss or physical damage to the ceramic ferrule.

Pair these with a single-mode fiber patch cable selection to complete your structured cabling build-out, or integrate them into your fiber optic accessories inventory for panel and tray work. For camera system backbones using fiber uplinks, review our PoE network switches with SFP ports that terminate at these LC interfaces. If you're designing the full fiber segment, the fiber optic installation planning guide covers link budget calculations that put the 0.2dB insertion loss spec in context.

Frequently Asked Questions

Q: Will the DUPLEXLCAPCNOF work with multimode OM3 or OM4 fiber?

A: No. These couplers are designed exclusively for 9/125µm single-mode fiber (OS1/OS2). Multimode fiber uses a 50/125µm or 62.5/125µm core, and the coupler sleeve alignment is optimized for single-mode ferrules. Using them with multimode connectors risks high insertion loss or ferrule damage. Use multimode-specific LC adapters for OM3/OM4 links.

Q: What is the insertion loss rating for the DUPLEXLCAPCNOF?

A: Maximum insertion loss is 0.2dB per mating pair. This is a low-loss spec that keeps attenuation contribution from the coupler itself minimal, preserving your link budget across multi-hop fiber runs.

Q: Can I use these couplers in outdoor enclosures?

A: Yes, provided the enclosure itself offers appropriate environmental protection. The couplers are rated for operation from -40°C to +85°C and storage from -40°C to +85°C, making them suitable for outdoor fiber distribution enclosures and unheated equipment rooms. The PBT housing resists thermal cycling and dimensional deformation.

Q: What wavelengths are supported?

A: The DUPLEXLCAPCNOF supports 1260nm to 1625nm — covering the full O-, E-, S-, C-, and L-band telecom window. This includes standard 1310nm and 1550nm single-mode links, CWDM wavelength grids, and DWDM applications without requiring wavelength-specific components.

Q: What is the warranty on the DUPLEXLCAPCNOF?

A: StarTech provides a 3-year manufacturer warranty on the DUPLEXLCAPCNOF.

Q: How many couplers are included, and what fiber classification do they support?

A: Each order includes 10 couplers. They support OS1 and OS2 single-mode fiber classifications, covering both indoor tight-buffered and outdoor loose-tube 9/125µm cable types.

Jerry Tildsen

The detail I keep coming back to on the DUPLEXLCAPCNOF is the 0.2dB maximum insertion loss spec. That's not a throwaway number — in a backbone run with three or four inline couplers, the difference between 0.2dB and 0.5dB per mating point adds up fast against your SFP link budget, particularly on 10G runs pushing toward the 10km range. These couplers won't be the weak link in your optical chain.

Technical Highlights:

• 0.2dB Insertion Loss: Keeps coupler-introduced attenuation under control across multi-point fiber runs — leaves headroom in the link budget for cable length and splice losses rather than burning it on connector interfaces.
• 1260–1625nm Operating Window: Full telecom band coverage means one coupler SKU handles standard 1310nm/1550nm single-mode links and CWDM grid wavelengths — no need to stock wavelength-specific variants for mixed-wavelength panels.
• -40°C to +85°C Rated: The industrial temperature range puts these couplers into outdoor distribution enclosures and unheated telecom rooms without compromise — a spec most generic fiber adapters don't match.

Deployment Considerations:

• These are strictly single-mode 9/125µm components. If your facility runs a mix of single-mode and multimode fiber, keep the coupler types clearly labeled and separated — an OM3 LC connector will physically mate but the insertion loss will be unpredictable and potentially damaging to ferrule finish.
• The SC footprint fits standard SC-keyed panel cutouts, but verify your patch panel or faceplate uses an unkeyed or standard SC cutout — some high-density panels use proprietary snap-in frames that require a specific adapter body width.

These are the right call for security integrators building single-mode fiber backbones through existing SC-keyed panels in commercial buildings — specifically where LC SFP-based edge switches need to uplink through legacy fiber infrastructure without a panel replacement budget on the project.
