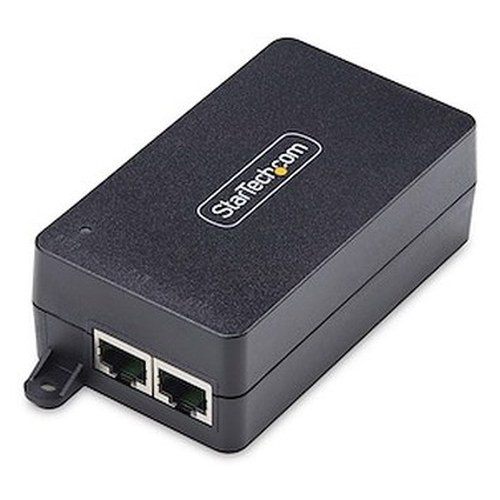

StarTech AF212C-POE-INJECTOR 1-Port 2.5GbE PoE+ Midspan Injector

Overview

The StarTech AF212C-POE-INJECTOR is a single-port midspan PoE injector that delivers up to 30W of 802.3at PoE+ power over a single Ethernet run — while supporting data rates from 10 Mbps all the way up to 2.5 Gbps. That combination matters in deployments where your existing switch lacks PoE capability or PoE budget headroom, but you're running PoE-capable devices that need both sufficient power and meaningful bandwidth. The injector supports IEEE 802.3at Type 2 (PoE+, 30W) and IEEE 802.3af Type 1 (PoE, 15.4W), so it works with the full range of current IP cameras, access control readers, wireless APs, and VoIP endpoints in your inventory. If you're looking at this page, you likely have a non-PoE switch with a fast enough uplink and need a clean, single-port solution to bridge the gap — the AF212C-POE-INJECTOR (often searched as AF212C POE INJECTOR) is purpose-built for exactly that scenario.

Key Features

• 2.5 Gbps Multi-Speed Ethernet: Autonegotiates across 10M, 100M, 1G, and 2.5G — so it doesn't bottleneck a 2.5GbE NIC or AP upgrade when you outgrow gigabit. Most injectors cap at 1G; this one keeps pace with higher-bandwidth devices without requiring a full switch replacement.
• 30W PoE+ Output at 54V DC / 0.6A: Fully compliant with 802.3at Type 2, which covers the wide majority of PTZ cameras, multi-sensor cameras, and heated-dome cameras that draw above the 802.3af 15.4W ceiling. The 54V output also means less current-induced voltage drop across longer cable runs compared to lower-voltage implementations.
• 100-Meter Maximum Cable Reach: Powers and carries data to devices up to 328 ft away using standard Cat5e or better — same distance ceiling as a direct switch port, so you're not trading range for the injector form factor. Useful when IP cameras or APs sit at the far end of a cable run from a wiring closet.
• Wide-Input Universal Power Supply (100–240V AC): Accepts the full global voltage range, so the same unit deploys in North American facilities or international sites without an external transformer. Input current draw is 0.8A with total system consumption of 32.4W — light enough to run off a standard UPS outlet without worrying about circuit loading.
• ESD Protection: ±8kV Contact / ±15kV Air: Meaningful in industrial and warehouse environments where static discharge from forklift traffic or conveyor systems can destroy unprotected Ethernet ports. This level of protection is typically found on industrial-grade gear, not commodity injectors.
• 9K Jumbo Frame Support: Enables full-size jumbo Ethernet frames up to 9,000 bytes — relevant if your NVR, storage array, or server uses jumbo frames for throughput efficiency. Without this, a standard 1,500-byte MTU injector would fragment large frames and kill throughput on a 2.5G link.
• Wake-on-LAN and PXE Support: The injector passes WoL magic packets and supports PXE boot traffic transparently — useful in IT-managed environments where endpoints need remote wake or network boot capabilities. Commodity PoE injectors often strip these protocol payloads.
• Surface and Wall Mountable: At 3.9 × 2.3 × 1.3 in and 3.5 oz, the unit is compact enough to mount directly above a ceiling tile, on a wall near a camera drop, or inside a rack-adjacent enclosure using the integrated mounting provisions. No separate mounting kit required for basic deployments.
• Operating Temperature 0°C to 50°C (32°F to 122°F): Covers standard IT closet and indoor commercial environments. This is not a rated outdoor unit — plan accordingly if the injector needs to live in an unconditioned mechanical room that regularly exceeds 50°C in summer.

Integration and Compatibility

The AF212C-POE-INJECTOR sits inline between your non-PoE switch or router port and any 802.3af/802.3at powered device. It's transparent to the network — no configuration, no management interface, no firmware to update. It auto-detects whether the downstream device is 802.3af (up to 15.4W) or 802.3at (up to 30W) and delivers the appropriate power class without manual selection. The 2.5G data path is fully transparent, so connected devices negotiate their own speed via standard autonegotiation. This makes it a straightforward fit for a network video recorder feeding a 2.5G camera, a wireless AP with a 2.5G uplink, or any scenario where a PoE injector needs to keep up with sub-10G multi-gig infrastructure. Pair it with Cat5e or Cat6 cabling — Cat5e is sufficient for 2.5G at standard distances, so no re-cabling is needed in most existing installations. For planning your full PoE infrastructure, review a PoE budget planning guide to size injectors and switches correctly before deployment.

Frequently Asked Questions

Q: Does the AF212C-POE-INJECTOR support both 802.3af and 802.3at devices?

A: Yes. It auto-detects and supports both IEEE 802.3af Type 1 (up to 15.4W) and IEEE 802.3at Type 2 (up to 30W). You do not need to manually configure the power class — the injector negotiates with the powered device automatically.

Q: Will the AF212C-POE-INJECTOR work at 2.5 Gbps if my switch port is only 1G?

A: The injector autonegotiates across 10M, 100M, 1G, and 2.5G. If your switch port is 1G, the link will negotiate to 1G — the injector does not limit you to a fixed speed. To use 2.5G, both the upstream switch port and the downstream device must support 2.5G.

Q: What is the maximum cable distance supported?

A: 328 feet (100 meters) using standard Cat5e or better, consistent with standard IEEE 802.3 Ethernet distance limits. No derating is required for the PoE function within this distance.

Q: Can the AF212C-POE-INJECTOR be wall-mounted?

A: Yes. The unit supports surface and wall mounting. At 3.9 × 2.3 × 1.3 inches and 3.5 oz, it is compact enough to mount near a camera or AP drop point without dedicated rack space.

Q: What is the warranty on the AF212C-POE-INJECTOR?

A: StarTech covers the AF212C-POE-INJECTOR with a 2-year manufacturer warranty.

Q: Does the injector support jumbo frames?

A: Yes, it supports jumbo frames up to 9K (9,000 bytes). This is important when connecting devices or storage systems configured for jumbo MTU on a 2.5G link — a standard 1,500-byte MTU injector would degrade throughput in those environments.

Eden Phillips

The detail that stands out on the AF212C-POE-INJECTOR is the 2.5G data path paired with 30W PoE+ in a single-port midspan — that pairing is still uncommon in this price tier. Most single-port injectors you'll find cap at 1G, which becomes a bottleneck the moment you install a 2.5G-capable camera or multi-radio AP. The 54V DC output at 0.6A also reduces resistive losses on longer cable runs compared to lower-voltage PoE designs, which is a real-world advantage when you're pushing the 100-meter distance limit.

Technical Highlights:

• 2.5G Autonegotiation: Supports 10M/100M/1G/2.5G — no manual speed configuration needed. Protects your investment when upgrading to 2.5G endpoints without replacing cabling (Cat5e is sufficient at 100m for 2.5G).
• ±8kV Contact / ±15kV Air ESD Protection: Exceeds what most consumer-grade injectors offer and holds up in industrial environments with electrostatic discharge risk from heavy equipment or conveyor systems.
• 9K Jumbo Frame Support: Passes full 9,000-byte frames without fragmentation — critical if your downstream NVR or storage appliance is tuned for jumbo MTU to maximize 2.5G throughput.

Deployment Considerations:

• The 100–240V AC input means this unit deploys internationally without a line conditioner or transformer — useful for multi-site rollouts across different regional power standards.
• Operating temperature ceiling is 50°C (122°F) — verify that any enclosure or closet where the injector is installed stays within that limit under summer load. Unconditioned mechanical rooms in hot climates can exceed this, which will shorten the unit's lifespan.

Best fit for multi-gig wireless AP deployments and 2.5G IP camera installations where the upstream switch has 2.5G ports but no PoE capability — the AF212C-POE-INJECTOR closes that gap cleanly without forcing a full switch refresh.
