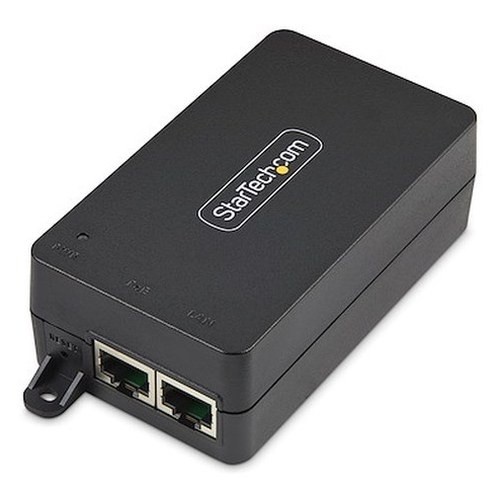

StarTech AF31XC-POE-INJECTOR 1-Port 60W PoE++ Injector with 10Gbps Ethernet

Overview

The StarTech AF31XC-POE-INJECTOR is a single-port midspan PoE++ injector that delivers up to 60W of IEEE 802.3bt power over a single RJ45 connection at data rates up to 10Gbps. If you're running a high-draw device — a multi-sensor PTZ camera, a Wi-Fi 6 access point, a video intercom with door strike, or any powered device that exceeds the 30W ceiling of standard PoE+ — and your existing switch doesn't support 802.3bt, this injector slots in between the switch and the device without replacing your switching infrastructure. That's the core use case: surgical PoE++ upgrades, one port at a time.

The AF31XC-POE-INJECTOR supports the full 2.5/5/10Gbps multi-gigabit speed range as well as legacy 10/100/1000Mbps, which means it won't become a bottleneck on modern high-throughput links. It sources 54V DC at up to 1.11A on the powered port, and draws from a universal 100–240V AC input — travel-friendly and globally deployable without a step-down transformer.

For integrators working across StarTech networking products or building out PoE injectors and midspan power solutions, this unit covers the gap between what your existing switch delivers and what your highest-power endpoints actually need.

Key Features

• 60W IEEE 802.3bt (PoE++) Output: 60W covers the full Class 6 power budget — enough for multi-sensor cameras, pan-tilt-zoom units with integrated heaters, or Wi-Fi 6E access points that pull 40–60W. If your switch tops out at 802.3at (30W), this injector bridges the gap without a forklift upgrade.
• 10Gbps Multi-Gigabit Data Path: Passes data at 10/100/1000Mbps and 2.5/5/10Gbps — the injector won't throttle a 10GbE uplink to a high-res camera or a backbone AP. Most PoE injectors in this class cap at 1Gbps; this one doesn't.
• 54V DC, 1.11A Output: Higher-voltage delivery at 54V reduces resistive losses over longer cable runs, maintaining usable power delivery closer to the 328ft (100m) maximum. Devices that specify 54V input will see cleaner power than injectors running at 48V nominal.
• Universal 100–240V AC Input: Accepts any mains voltage worldwide at up to 1.5A input current. No region-specific SKU needed — useful for international projects or multi-site deployments where standardizing on a single SKU matters.
• IEEE 802.3af/at/bt Backward Compatibility: Negotiates down to 802.3af (15.4W) or 802.3at (30W) for lower-draw devices, so you can use the same injector across a mixed device population without worrying about over-powering endpoints that don't support bt.
• 328ft (100m) Maximum Cable Reach: Standard Cat5e/Cat6 structured cabling runs are supported at full spec — no derating for distance within the standard Ethernet reach envelope. Pair with Cat6 or Cat6A cabling for 10GbE reliability at distance.
• Compact Form Factor — 100 x 58.4 x 33.4mm, 198g: Small enough to mount or tuck near a device rather than in a wiring closet. At under 200g, it doesn't add meaningful load to a wall plate or surface mount.
• 0°C to 40°C Operating Range: Rated for conditioned indoor spaces — IT closets, server rooms, interior network cabinets. Not rated for unheated enclosures or outdoor deployments; plan accordingly if the install location drops below freezing.
• 2-Year Manufacturer Warranty: StarTech backs this unit with a 2-year warranty — standard for commercial-grade networking peripherals in this category.

Integration and Compatibility

The AF31XC-POE-INJECTOR (often searched as AF31XC POE INJECTOR) is switch-agnostic — it works upstream of any Ethernet switch that has an available port, regardless of whether that switch supports PoE. This makes it practical in environments where budget constraints or existing infrastructure mean PoE++ switching isn't available at every IDF. It's also useful as a temporary or permanent supplement to a PoE budget-constrained switch that can't spare additional wattage for a new high-draw device.

For surveillance-specific deployments, this injector pairs well with PTZ cameras requiring 60W for continuous heater and motor operation, or with multi-sensor panoramic cameras that aggregate power across multiple image sensors. If you're planning a PoE switch deployment and need to bridge a gap while the infrastructure order is in transit, this injector also serves as a reliable interim solution. Consult your endpoint's power spec sheet — devices that negotiate 802.3bt Class 6 will draw up to 51W at the PD; this injector's 60W PSE budget covers that with headroom.

Review your structured cabling category before deploying at 10GbE — Cat5e is rated to 1Gbps; Cat6 or Cat6A is recommended for reliable 10GbE at full 100m runs. This injector won't compensate for cabling that doesn't meet the data-rate spec.

Frequently Asked Questions

Q: What PoE standard does the AF31XC-POE-INJECTOR support, and how much power does it deliver?

A: It supports IEEE 802.3bt (PoE++), delivering up to 60W at 54V DC / 1.11A on the powered port. It is backward compatible with 802.3af (15.4W) and 802.3at (30W) devices as well.

Q: Can the AF31XC-POE-INJECTOR pass 10Gbps data, or does it limit throughput?

A: It supports the full multi-gigabit speed range: 10/100/1000Mbps and 2.5/5/10Gbps. It will not bottleneck a 10GbE link between your switch and the powered device.

Q: What is the maximum cable length supported?

A: 328 feet (100 meters) over standard Ethernet cabling — consistent with the IEEE 802.3 maximum reach. Cat6 or Cat6A is recommended for reliable 10GbE performance at full distance.

Q: Is the AF31XC-POE-INJECTOR suitable for outdoor or unheated enclosure installations?

A: No. The operating temperature range is 0°C to 40°C, making it suitable for conditioned indoor environments only. It is not rated for unheated outdoor enclosures or ambient temperatures below freezing.

Q: Does it work with any Ethernet switch, including non-PoE switches?

A: Yes. The injector is switch-agnostic and adds PoE++ capability to any upstream switch port, whether or not that switch supports PoE natively. It draws its own power from a 100–240V AC mains connection.

Q: What is the warranty on the AF31XC-POE-INJECTOR?

A: StarTech provides a 2-year manufacturer warranty on this unit.

Marty Allison

The spec that defines where the AF31XC-POE-INJECTOR earns its place is the 60W 802.3bt output at 54V DC — that's not a marginal improvement over 802.3at, it's double the power budget, which genuinely changes what you can power over a single cable run. I reach for this unit specifically when a site has a capable 1G or 10G switch that simply wasn't spec'd for PoE++ and a device audit turns up a PTZ or panoramic camera that needs more than 30W to run its heater and motor simultaneously.

Technical Highlights:

• 60W / 802.3bt Output: Covers full Class 6 PD devices drawing up to ~51W at the endpoint — PTZ cameras with integrated heaters, 4-sensor panoramic units, and Wi-Fi 6E APs are all within spec. No derating needed at the injector level within the 100m cable envelope.
• 10Gbps Multi-Gigabit Pass-Through: Unlike most single-port injectors that cap at 1Gbps, this one handles 2.5/5/10Gbps — meaning it won't become the weakest link in a 10GbE uplink to a high-resolution camera or backbone AP.
• Universal 100–240V AC Input at 1.5A: One SKU covers every region and every mains voltage. On multi-site international projects, that standardization eliminates a sourcing headache.

Deployment Considerations:

• Operating range is 0°C to 40°C — install this in a conditioned IDF or interior cabinet only. If the injector will live in an unheated utility room or exterior enclosure that can drop below freezing, you'll need a different solution or active enclosure heating.
• At 10GbE, cabling category matters: Cat5e is not reliable at 10Gbps across a 100m run. Spec Cat6 or Cat6A on any link where you're pushing 10GbE through this injector, or you'll chase intermittent link drops that don't obviously point back to cable plant.

This injector is the right call for phased PoE++ rollouts in enterprise or mid-market buildings where the switching infrastructure is already 10GbE-capable but wasn't purchased with 802.3bt in mind — data centers adding high-power wireless APs, or physical security teams commissioning 60W PTZ cameras on an existing non-PoE++ switch fabric.
