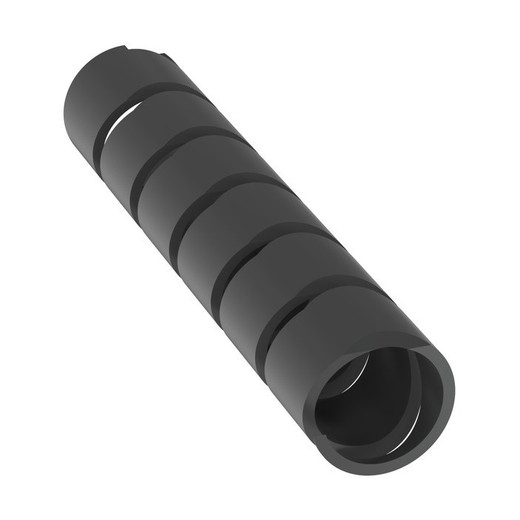

Panduit T75F-C0 0.75" Spiral Wrap 100 ft Black

Panduit T75F-C0 Polyethylene Spiral Wrap

The Panduit T75F-C0 delivers continuous abrasion protection for permanent cable installations where bundling, flexibility, and environmental resistance matter. This 100-foot polyethylene spiral wrap harnesses multiple cables into a single manageable bundle while preserving the ability to break out individual conductors at any point along the run—no disassembly required. Designed for security integrators, datacenter techs, and AV installers managing complex cable routes in exposed environments, the T75F-C0 accommodates bundle diameters from 0.625 inches to 5 inches and handles irregular shapes that rigid conduit cannot. UV-resistant black polyethylene stands up to outdoor deployments, mechanical stress, and temperatures up to 122°F.

Key Features

• 0.75-inch diameter spiral wraps 100 feet of cable in a single continuous length, minimizing splice points and install time
• Spiral geometry allows breakouts of single or multiple cables at any point without unwrapping the entire bundle
• UV-resistant polyethylene construction rated for outdoor and exposed-conduit installations up to 122°F (50°C)
• Accommodates bundle diameters from 0.625 inches to 5 inches, adapting to irregular shapes and tapered runs
• UL 94 HB flammability rating and UL Recognized (E141152) for commercial and industrial applications
• Reusable design supports retrofit work and field modifications without replacing the entire wrap
• Black finish maintains professional appearance in visible runs and color-codes infrastructure

The T75F-C0's spiral design solves the core tension in cable management: you need mechanical protection and bundle integrity, but you also need access. Traditional split loom and solid conduit force you to choose. Panduit's spiral wrap does both. The overlapping coils create a continuous abrasion shield that flexes with the cable bundle, distributing stress across the entire length rather than concentrating it at sharp bends. When you need to tap a single conductor—for a branch circuit, a sensor drop, or a field-added device—you peel back the spiral locally, route the cable, and let it close. The remaining bundle stays protected and organized. This is critical in retrofit environments where you're adding capacity to existing infrastructure, or in modular systems where today's six-conductor run becomes tomorrow's twelve-conductor expansion. The 0.625-inch minimum accommodates small-gauge control wire; the 5-inch maximum handles fat bundles of Cat6, coax, and power in a single wrap. Polyethylene's flexibility means it conforms to irregular cross-sections—think mixed-media bundles with different cable diameters—without leaving gaps or pressure points that accelerate wear.

Installers deploy the T75F-C0 in four contexts: outdoor cable runs where UV and weather exposure degrade unprotected jackets; equipment racks and cable trays where sharp edges and adjacent bundles cause abrasion over time; behind-wall and plenum runs where you need mechanical protection without metallic conduit's weight and cost; and temporary or seasonal installations where reusability justifies the investment. The 100-foot length covers long pulls between distribution points with fewer joints, and the material's light weight (compared to PVC or braided sleeving) reduces strain on cable supports. Installation is straightforward—wrap the bundle by rotating the spiral around the cables, starting at one end and working toward the other. No tools, no fasteners, no threading through split sections. For field modifications, the reusable design means you're not cutting and discarding protection every time you add a drop. Black polyethylene resists UV degradation in sunlight, handles incidental contact with most solvents and oils, and maintains flexibility across a wide temperature range, making it suitable for rooftop camera runs, parking lot lighting circuits, and unheated equipment shelters.

UL 94 HB flammability rating and UL E141152 recognition meet commercial building codes for wire management components. The T75F-C0 fits installations where you're protecting multi-conductor bundles in non-plenum spaces, routing mixed-media infrastructure through cable trays or J-hooks, or adding abrasion protection to outdoor runs without the rigidity of EMT conduit. Panduit's consistent 0.75-inch spiral diameter and 100-foot package quantity let you standardize on a single SKU for mid-sized bundles, reducing inventory complexity and ensuring you have the right protection on the truck for typical security, AV, and low-voltage integration work.
