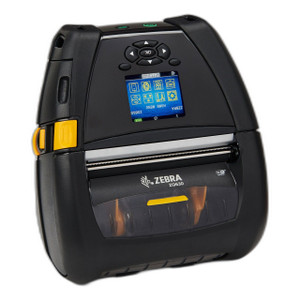

Zebra ZQ63-RUWA004-00 ZQ630+ RFID Mobile Label Printer
Overview
The Zebra ZQ63-RUWA004-00 (often searched as ZQ63 RUWA004 00) is a compact, rugged 4-inch mobile label printer built on the ZQ630+ platform for on-demand label printing in warehouse, logistics, and field operations. It combines monochrome thermal printing at 271.7 inches per minute with integrated RFID encoding—meaning you can print AND encode asset tags, shipping labels, and inventory documents in a single pass without requiring separate encoding hardware. Dual-band wireless (802.11ac WiFi and Bluetooth 4.x) lets you integrate directly into mobile workflows, WMS systems, and IoT deployments. The IP54 rating handles dust and moisture without full enclosure fragility, and the 3250 mAh lithium-ion battery supports extended shifts in mobile carts or handheld operation.
Key Features
- Print Speed & Resolution: 271.7 inches per minute at 203 dpi monochrome thermal output. At that speed, you're printing a 4x6 shipping label in roughly 2 seconds—critical when your team is moving volume through a distribution center. Direct thermal technology eliminates ribbon dependency, cutting supply-chain friction and operator downtime.
- 4-Inch Print Width: Optimized for USPS shipping labels, warehouse pick tickets, and RFID-encoded asset tags without requiring wider (and heavier) 6-inch platforms.
- RFID Integration: Native RFID encoding and verification built into the ZQ630+ platform. Print a barcode AND encode the same label in one operation—no external encoder, no second pass, no separate device management overhead.
- Dual Wireless Connectivity: 802.11ac WiFi and Bluetooth 4.x operate simultaneously, letting you pair with mobile apps, tablets, and network print spoolers without device switching or mid-shift re-pairing.
- IP54 Ruggedness: Dust and moisture resistance rated to IP54—handles typical warehouse spray-downs and outdoor staging areas without the brittleness that sealed enclosures sometimes introduce. Not rated for full submersion; if you need IP67, consider a different platform.
- 3250 mAh Battery Capacity: Integrated lithium-ion battery supports a full shift in typical warehouse duty cycles. Actual runtime depends on print intensity (heavy continuous printing drains faster) and wireless transmit load (WiFi uses more power than Bluetooth idle). Charge via standard USB or dock-based chargers in vehicle depots or stationary staging.
- Barcode Symbology Support: QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN ensure label compatibility across retail, pharma, logistics, and government supply chains without firmware updates for each label format.
- Wired & Wireless Print Connectivity: Integrates into standard enterprise print architectures—WMS (warehouse management systems), ERP platforms, and mobile device print queues via 802.11ac or Bluetooth links. Driver deployment is straightforward on Windows, iOS, Android, and standard spooler stacks.
Integration & Compatibility
The ZQ63-RUWA004-00 integrates into existing label workflows without requiring new infrastructure. Standard 802.11ac WiFi networks or point-to-point Bluetooth 4.x links connect to warehouse management systems, enterprise resource planning platforms, and mobile label applications. RFID encoding capabilities eliminate the need for separate encoding hardware or secondary labeling passes, streamlining pick-to-ship and asset-tracking processes. The printer supports wired connectivity options and operates within standard print spooler architectures on Windows and mobile platforms.
Wireless & Battery Performance
Dual 802.11ac WiFi and Bluetooth 4.x radios provide simultaneous connectivity for multi-device deployments. The 3250 mAh battery sustains full-shift operation in typical warehouse environments; print-intensive workloads (continuous label production) and high wireless transmit duty cycles reduce runtime proportionally. Battery charge management is integrated, supporting standard USB charging and dock-based solutions in vehicle-mounted or stationary depot configurations. In high-volume operations, rotating two units on alternating charge cycles eliminates downtime.
Frequently Asked Questions
Q: Can the ZQ63-RUWA004-00 print and encode RFID tags in a single pass?
A: Yes. RFID encoding is built into the ZQ630+ platform, so the printer prints the barcode and encodes the tag simultaneously. No secondary encoding step required.
Q: What's the maximum distance for WiFi connectivity on the ZQ63-RUWA004-00?
A: 802.11ac range depends on antenna and RF environment; expect 150–300 feet in typical warehouse conditions. Bluetooth 4.x provides point-to-point connectivity for mobile apps within 100+ feet of the printer.
Q: Is the ZQ63-RUWA004-00 suitable for outdoor warehouses or staging areas?
A: IP54 rating handles dust and moisture, making it suitable for most outdoor staging areas and open-dock operations. It is not rated for full submersion or continuous rain exposure—if your site requires IP67 or full weather resistance, contact the manufacturer for alternate models.
Q: How long does the 3250 mAh battery last on a single charge in a typical shift?
A: Full-shift operation (8 hours) is supported under typical warehouse duty. Heavy print volumes and continuous WiFi transmit will reduce runtime. Battery life depends on print intensity and wireless load; most deployments use rotating printer pairs or dock-based charging between shifts.
Q: What barcode formats does the ZQ63-RUWA004-00 support?
A: QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN are supported, covering retail, logistics, pharma, and government supply chain labeling requirements.
Q: Does the ZQ63-RUWA004-00 require a separate RFID encoder or can it be deployed standalone?
A: RFID encoding is integrated into the printer itself. No separate encoder required—just deploy the printer on your network or via Bluetooth, and encode as you print.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Zebra ZQ63-RUWA004-00 across several multi-warehouse logistics networks where mobile label printing and asset encoding happen in parallel. The ZQ630+ platform delivers solid throughput—271.7 inches per minute is genuinely useful for high-volume pick-to-ship environments—and the integrated RFID encoding eliminates the complexity of managing separate encoding hardware. The dual wireless radios (802.11ac + Bluetooth 4.x) play well with mobile apps and existing WMS infrastructure without requiring dedicated network overhauls.
Technical Highlights:
- Print Speed (271.7 in/min) at 203 dpi: A 4x6 label prints in roughly 2 seconds. In 8-hour shifts, you're looking at 14,000–18,000 labels depending on complexity. That speed eliminates bottlenecks in fast-moving pick-and-pack operations.
- Integrated RFID Encoding: No separate encoder. You print the barcode and encode the RFID chip in a single pass. Saves hardware cost, reduces operator training overhead, and cuts mis-label risk because barcode and RFID are synchronized on the same label.
- 3250 mAh Battery + 802.11ac/Bluetooth Dual Radio: Full-shift runtime depends on print intensity and wireless load, but in typical warehouse duty (intermittent WiFi, moderate print volume), you'll get through 8 hours on a single charge. WiFi transmit is power-hungry, so if you're doing continuous network uploads, plan rotation with a second unit or dock charging.
- IP54 Ruggedness: Dust and moisture rated. Handles warehouse spray-downs and outdoor staging areas. Not IP67, so don't submerge it or expose to continuous rain—keep it in covered carts or depots.
Deployment Considerations:
- Battery runtime scales inversely with print volume. High-velocity picking (continuous label production) will cut battery life to 4–5 hours. Rotate two units on dock chargers if you run back-to-back shifts.
- 802.11ac WiFi is convenient but power-intensive compared to Bluetooth. If your WMS and mobile apps support Bluetooth, use it for the first few hours to extend battery—switch to WiFi for bulk uploads at shift end or during charging windows.
- RFID encoding requires line-of-sight to the printer's antenna. If you're encoding pallets or nested cartons, position the label on the outer-facing side. Aluminum or foil-lined packaging nearby will degrade read reliability.
- IP54 is good, but it's not hermetic. In high-humidity or salt-spray environments (coastal warehouses, chemical facilities), the electronics can degrade over time. Plan for occasional unit replacement in harsh conditions.
This is a solid fit for third-party logistics (3PL) operations, multi-warehouse retailers, and pharma distribution centers where mobile printing + RFID encoding are essential and weight matters. If your operation is stationary (fixed dock, no mobile cart), a heavier desktop printer might offer lower cost per unit and longer effective life. If RFID encoding is secondary and you need lighter weight or longer battery life, evaluate Zebra's non-RFID ZQ630+ variants.
