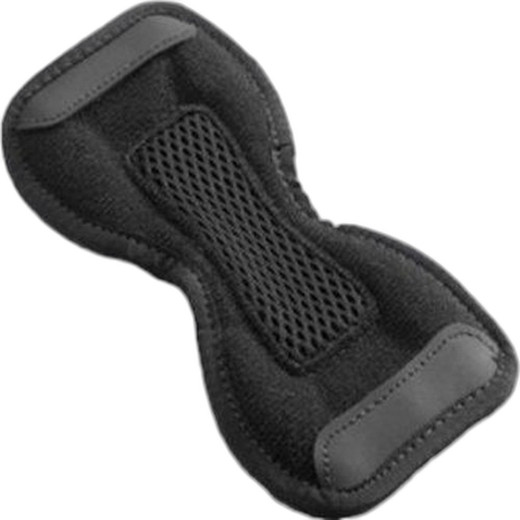

Zebra SG-WT5X6-WMTDS-01 Wrist Mount Double Dial Small

Zebra SG-WT5X6-WMTDS-01 Wrist Mount Double Dial Small

Overview

The SG-WT5X6-WMTDS-01 is a wrist-mounted accessory engineered for Zebra WT54/6400 series mobile computers in compact form factor. This double dial mount secures the device to the operator's wrist, enabling hands-free positioning during warehouse, logistics, and field inventory tasks. The small size accommodates operators with slighter wrist profiles while maintaining stable device positioning during extended shifts—a practical necessity when operators are picking, counting inventory, or performing voice-directed tasks where both hands must remain free for handling stock.

Key Features

• Double Dial Adjustment Mechanism: Two independent dial controls allow independent tightening and loosening of the mount, so you can secure the device firmly without over-torquing the wrist band—critical during 8–10 hour shifts where excessive pressure causes operator fatigue and compliance issues.
• Compact Wrist Profile Fit: The small form factor is dimensioned for operators with wrist circumferences below standard sizing, reducing the need for secondary strap modifications or secondary accessories that add cost and complexity to provisioning.
• Zebra WT54/6400 Compatibility: Engineered specifically for the Zebra WT54 and 6400 mobile computer series, ensuring precise mechanical alignment and secure retention without adapter plates or third-party workarounds.
• Hands-Free Workflow Integration: Frees both operator hands for picking, scanning, and handling items simultaneously—directly supporting voice-directed picking workflows and reducing cycle time compared to handheld-only operation.
• Stable Device Positioning: Mount design keeps the mobile computer at a consistent angle and distance from the wrist, preventing device drift or repositioning that can interrupt scanning or complicate line-of-sight to barcodes during rapid picking cycles.
• Extended Shift Comfort: Wrist-worn placement distributes device weight across the forearm rather than concentrating it in the palm, reducing repetitive strain on hands and wrists during high-volume picking or counting operations.

Integration & Compatibility

This accessory is purpose-built for Zebra WT54/6400 mobile computers. Verify your device model against the compatibility list before ordering—the SG-WT5X6-WMTDS-01 (often searched as SG WT5X6 WMTDS 01) is not a universal mount and will not fit other Zebra models or third-party devices without mechanical modification.

The mount integrates directly into standard warehouse automation workflows, including Zebra's voice-directed picking environments, barcode-centric picking systems, and manual data collection tasks where mobility and hands-free operation are core requirements. If you are provisioning mobile computers across multiple operators, consider ordering spare mounts to accommodate different wrist sizes and allow rotation during equipment servicing.

Installation requires no tools beyond hand-tightening the dial controls. Mount the accessory to the wrist, secure the mobile computer into the retention mechanism, and adjust both dials for a secure fit. No firmware or configuration changes are needed.

When to Choose a Different Model

If your operators require a larger wrist profile accommodation, Zebra offers a standard (regular) wrist mount variant in the same family—check the part number prefix to confirm sizing before order entry. If handheld-only operation is sufficient and hands-free mounting is not a requirement, a basic holster or belt clip may be more cost-effective. If you need a mount for a different Zebra mobile computer model (e.g., MC3300, MC9300, or other WT series variants), verify compatibility with Zebra's accessory compatibility matrix.

Frequently Asked Questions

Q: Is the SG-WT5X6-WMTDS-01 compatible with the Zebra WT6300 mobile computer?

A: No. This mount is engineered for the WT54 and WT6400 series. The WT6300 uses a different form factor and mechanical interface. Verify your device model against the Zebra compatibility documentation before ordering.

Q: Can I use this mount with the Zebra MC9300 mobile computer?

A: No. The MC9300 is a different device class and does not fit the SG-WT5X6-WMTDS-01 retention mechanism. Zebra offers separate wrist mounts for the MC9300 and MC3300 lines.

Q: What is the maximum wrist circumference this mount accommodates?

A: The small form factor is designed for compact wrist profiles. For exact circumference limits, consult Zebra's detailed sizing documentation or contact a Zebra-authorized sales engineer before provisioning.

Q: Do I need any tools to install the SG-WT5X6-WMTDS-01 on my wrist?

A: No. The double dial adjustment is hand-tightened. No tools or special equipment are required for installation or removal.

Q: Can I adjust the mount's fit during an operator's shift without removing the mobile computer?

A: Yes. The dual dial design allows minor tightening adjustments without full removal, though repositioning the device may require briefly taking it off the wrist.

Q: How many mounts should I provision for a team of 20 operators?

A: Order at least one per operator, plus 1–2 spares per 10 operators to account for loss, damage, or downtime during cleaning and maintenance cycles.

Ted Perry

The SG-WT5X6-WMTDS-01 solves a real provisioning problem: getting small-framed operators—often a sizable subset of warehouse and logistics teams—into a secure wrist mount without resorting to improvised straps or oversized mounts that slip and cause compliance headaches. The double dial mechanism is the key differentiator here; it lets you dial in tension without trial-and-error overtightening that creates pressure points after 6+ hours on the wrist.

Technical Highlights:

• Dual Dial Retention: Independent tightening controls prevent single-point failure and allow fine-tuning of pressure without removing the device—a detail that matters in high-churn environments where 30–40 operators rotate through mounts weekly.
• WT54/6400 Form Factor Lock: Mechanical precision ensures zero side-to-side play once secured, which is essential for barcode scanning accuracy during rapid picking when the operator's arm angle changes frequently.
• Small Profile Accommodation: Eliminates the secondary cost and delay of sourcing universal mounts with adjustable sizing straps—a real friction point when scaling from 5 operators to 50.

Deployment Considerations:

• Verify wrist size limits before provisioning a large batch; returning undersized or oversized inventory creates unplanned downtime and resupply delays.
• The small variant is not interchangeable with standard Zebra wrist mounts—do not assume a single SKU covers your entire workforce. Build separate part numbers into your procurement process.
• Plan for 1 spare per 10 operators; dials can loosen during vigorous scanning or heavy item handling, and operators occasionally lose or damage mounts during high-velocity picking cycles.

Best fit: mid-to-large warehouse operations with diverse operator body types where hands-free picking and rapid barcode scanning are the norm, and where operator comfort directly impacts cycle time and error rates. Skip this if your team uses handheld scanners exclusively or if operator wrist size is consistently in the standard range.
