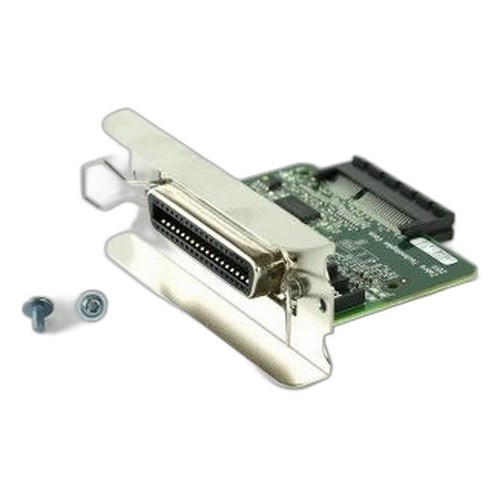

Zebra P1083320-040 Parallel Port Card for ZT600 Series
The P1083320-040 is a parallel port interface card engineered for integration with Zebra's ZT600 series thermal printers. This optional module expands printer connectivity to environments where parallel port communication remains the operational standard — particularly in legacy manufacturing, warehouse management, and point-of-sale systems where USB or Ethernet infrastructure may not exist or where air-gapped parallel channels are required for security or operational reasons.
Overview
The P1083320-040 functions as a direct-install interface module that plugs into the ZT600 printer's modular port bay. It supports industry-standard bidirectional parallel port communication — both DB-25 and Centronics connectors are compatible — without requiring firmware updates or host-side driver reconfiguration beyond what Windows and Linux systems already supply natively. This makes it a drop-in solution for systems that cannot tolerate upgrade cycles or where existing infrastructure investment is too substantial to replace.
Key Features
- ZT600 Series Compatibility: Engineered specifically for Zebra ZT600 thermal printers, ensuring proper electrical integration and firmware handshaking. Eliminates guesswork when retrofitting legacy production lines.
- Bidirectional Parallel Protocol: Supports full-duplex parallel communication, meaning the printer can send status signals and error codes back to the host system. Critical for detecting media-out, temperature faults, or print queue issues in real time without polling.
- DB-25 and Centronics Support: Accommodates both legacy parallel connector types, so you're not forced into cable adapters that introduce latency or intermittent connection failures.
- No Firmware Updates Required: The card functions with existing ZT600 firmware. Reduces deployment risk and eliminates the need for version-control procedures that slow down production environments.
- Plug-and-Play Installation: Mechanical snap-in design into the ZT600 interface slot. No soldering, no internal rewiring, minimal downtime. A trained operator can swap it in under 10 minutes.
- Native Driver Support: Windows and Linux systems recognize standard parallel ports immediately. No proprietary software, no certification delays. If your host already prints to a parallel printer, this card will work.
- Coexistence with Other Interfaces: The ZT600 supports multiple optional interface cards; the P1083320-040 can be installed alongside USB or Ethernet modules. Only one functions as the primary communication channel at any time, preventing port conflicts.
Integration and Compatibility
Installation requires no modifications to the ZT600 print engine, label templates, or host application code. The card integrates directly into the printer's slot architecture — no external breakout boxes or pass-through adapters. Print spool protocols remain unchanged; label design software that exports to parallel printers (ZPL over parallel, ESC/P, raw ASCII) will transmit directly to the P1083320-040 without modification. High-speed label printing — typical ZT600 throughput of 300+ mm/sec — is unaffected by the parallel interface; the card does not become a bottleneck under sustained production loads.
When to Choose This Interface
Deploy the P1083320-040 if your host system uses parallel port communication and upgrading to USB or Ethernet is not feasible due to hardware constraints, software licensing, or operational risk. It is particularly suited to warehouses with legacy WMS systems, manufacturing lines with air-gapped parallel requirements for ISO compliance, or retail environments where POS terminals still rely on parallel printer connections. If your host supports USB or Ethernet natively, those interfaces will offer simpler cabling and often better throughput; the P1083320-040 is the right choice only when parallel is your operational constraint.
Frequently Asked Questions
Q: Will the P1083320-040 work with ZT400 or ZT500 series printers?
A: No. The P1083320-040 is designed exclusively for ZT600 series printers. The interface slot architecture differs across ZT series generations. Do not attempt to install it in earlier models.
Q: Can I run multiple interface cards simultaneously on the ZT600?
A: You can install multiple optional interface cards (parallel, USB, Ethernet) in the same printer, but only one operates as the primary communication channel at any given time. Switching between interfaces typically requires a printer restart or configuration change.
Q: Do I need special drivers for the P1083320-040?
A: No. Standard Windows and Linux parallel port drivers are sufficient. The card is transparent to the operating system; it appears as a standard parallel port.
Q: What is the maximum cable length for parallel communication?
A: Standard parallel port specifications support up to 15 feet (4.5 meters) for reliable communication. Beyond that, signal degradation increases the risk of print failures. Stay within 10–15 feet for production environments.
Q: Can the P1083320-040 be installed in the field, or does it require factory installation?
A: Field installation is supported. The card plugs into a standard slot on the ZT600. Basic mechanical assembly knowledge is sufficient. Consult the ZT600 user guide for the exact slot location and any prerequisite power-down steps.
Q: Is the P1083320-040 compatible with label design software like Zebra Designer or Bartender?
A: Yes, provided your label design software supports parallel port output. The card does not alter ZPL (Zebra Programming Language) or ESC/P protocol handling; any software that sends parallel print jobs to a Zebra printer will work.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Zebra P1083320-040 during several printer integration projects for warehouse and manufacturing clients. This parallel port card solves a specific, persistent problem: legacy host systems that cannot migrate to USB or Ethernet without incurring unacceptable operational risk or cost. The P1083320-040 is genuine OEM hardware, which matters — third-party parallel adapters introduce intermittent failures that consume far more troubleshooting time than the cost of the original card ever justifies.
Technical Highlights:
- Bidirectional Communication: The card supports full parallel handshaking, meaning the ZT600 sends status codes and error signals back to your host system. This prevents silent print failures in unattended production lines. Detect media-out, temperature faults, or offline conditions in real time without polling loops that slow throughput.
- No Firmware Coupling: The P1083320-040 does not require ZT600 firmware updates or version synchronization. Deploy it into existing ZT600 installations running current production firmware without regression testing — a significant advantage in validated manufacturing environments where firmware changes demand QA sign-off.
- Standard Protocol Compliance: Implements bidirectional parallel port protocol (IEEE 1284) for full compatibility with legacy WMS systems, POS terminals, and production controllers that expect standard parallel behavior. No proprietary protocol stacks, no undocumented handshake sequences.
Deployment Considerations:
- Single-Channel Operation: Although the ZT600 supports multiple interface modules, only one can be active at any time. If you need to switch from parallel to USB for a temporary integration test, plan for a printer restart or configuration reload — not a show-stopper, but understand the operational impact in high-throughput environments.
- Cable Distance Limitation: Standard parallel port specs support reliable communication to 15 feet. If your host system and printer are farther apart, signal integrity degrades. Longer runs demand active repeaters or a migration to USB or Ethernet — costs that argue for upgrading the host system if distance is a constraint.
- Windows/Linux Driver Availability: The card relies on OS-native parallel port support. Modern Windows Server editions still include this, and Linux has long-term support, but embedded or specialized operating systems may not. Verify driver availability before committing to parallel infrastructure in non-standard host environments.
The P1083320-040 is the right choice for warehouse and manufacturing integrators who must connect a ZT600 to legacy WMS or production control systems that mandate parallel communication. It's not a performance upgrade — parallel bandwidth was never the constraint — but it eliminates the hardware-mismatch friction that forces unnecessary system replacements. Deploy it when your host is locked into parallel for operational or compliance reasons, not as a default choice.
