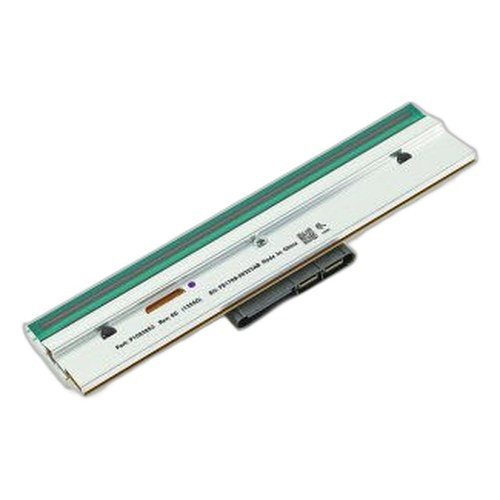

Zebra P1083320-016 Printhead Kit 300 dpi ZT620
The Zebra P1083320-016 is a genuine thermal printhead replacement assembly for the ZT620 and ZT620R industrial-class label and receipt printers. This is an OEM consumable component — not an aftermarket substitute — engineered to restore print quality and barcode clarity in high-volume warehouse, logistics, and supply chain environments where print-head wear directly impacts operational throughput and barcode scan rates.
Overview
Thermal printheads degrade with use. The heating elements gradually lose surface smoothness, which results in uneven ink transfer, faded barcodes, and missed scans. The P1083320-016 restores original-equipment performance after approximately 12–18 months of normal operation, or sooner in high-throughput settings (2000+ labels daily). Because this is a Zebra OEM kit rather than a third-party clone, you avoid the hidden cost of premature head failure or warranty complications.
The kit includes all required replacement components — no separate procurement needed. Installation is a drop-in swap requiring only a few minutes and minimal technical skill, making it practical for field technicians or in-house maintenance teams across distributed warehouse networks.
Key Features
- 300 dpi Print Resolution: Produces sharp, machine-readable 1D and 2D barcodes that scan reliably first-pass — critical when your WMS or parcel system depends on barcode velocity. At this resolution, UPC, GS1, and FDA compliance labeling remains legible throughout the printhead's operational lifespan, eliminating reprints due to faded or smudged codes.
- OEM Replacement Part: Genuine Zebra component ensures heating element consistency and platen alignment identical to factory-installed printheads. No performance surprises or compatibility gotchas with firmware revisions.
- ZT620 and ZT620R Compatibility: Works with both direct-thermal ZT620 and thermal-transfer ribbon ZT620R models. Single part number simplifies spare-parts inventory across mixed printer fleets.
- Thermal Print Technology (Direct & Transfer): The printhead supports both direct-thermal media and thermal-transfer ribbon configurations. This flexibility means you can standardize on one replacement part across different label-stock strategies — cost savings during emergency restocking.
- Industrial-Grade Heating Elements: Engineered for sustained high-volume print runs without degradation. Extended thermal cycling during rapid label throughput doesn't compromise print quality or head longevity compared to consumer-grade alternatives.
- Wi-Fi Connectivity Support: Compatible with ZT620/ZT620R units equipped with Wi-Fi modules, enabling network-based print-job routing without USB or Ethernet tethering. Simplifies deployment in sprawling warehouse layouts where cable runs are impractical.
- Kit Format with All Components: Includes the printhead assembly and associated mounting hardware. No hunting for missing screws or brackets — everything arrives together, reducing installation delays.
- Drop-In Replacement Design: Minimal mechanical rework required. Swap occurs during standard maintenance windows without recalibration or firmware updates. Field downtime typically under 10 minutes.
Integration & Compatibility
The P1083320-016 integrates into any existing ZT620 or ZT620R printer regardless of connectivity method — Wi-Fi, Ethernet, or USB. Organizations standardized on Zebra thermal printing treat this as a predictable consumable on a scheduled maintenance cycle. The part plugs directly into the printer's printhead carriage without mechanical modification.
Integration with label-design software (ZebraDesigner, Bartender) and warehouse management systems (WMS) continues unchanged — print-job formatting and routing require no adjustment after head replacement.
Replacement Schedule & Warranty Considerations
Replacement interval depends on volume and media type. Standard warehouse operations (500–1000 labels daily on coated stock) typically see 12–18 months of service. High-throughput parcel operations (2000+ labels daily on uncoated film) may require replacement every 6–9 months. Direct-thermal printing on coated media extends printhead life; thermal-transfer on uncoated film accelerates wear.
Plan replacement cycles around planned maintenance windows to avoid emergency downtime. Stock one spare kit per printer in distributed operations to eliminate procurement delays when wear occurs unexpectedly.
Typical Deployment Scenarios
Ideal for distribution centers, parcel and freight operations, healthcare inventory management, and manufacturing work-in-process labeling. The 300 dpi resolution meets UPC, GS1, and FDA barcode compliance requirements without additional print refinement or re-printing cycles. Integration with label-design software and WMS platforms enables rapid customization and scaling across multi-site operations.
Frequently Asked Questions
Q: How do I know when the printhead needs replacement?
A: Watch for faded or uneven print quality, barcodes that fail to scan on the first attempt, or horizontal streaks in printed output. These are signs the heating elements have degraded. You can also monitor printhead usage via the printer's web interface — Zebra ZT620 models typically log operating hours and recommend replacement based on print volume.
Q: Will the P1083320-016 work with my ZT620R configured for thermal-transfer ribbon?
A: Yes. This kit is compatible with both ZT620 (direct-thermal) and ZT620R (thermal-transfer ribbon) configurations without modification. The printhead assembly handles both media types. No firmware or mechanical changes are required.
Q: What's included in the kit?
A: The P1083320-016 includes the printhead assembly and all necessary replacement components for installation. No additional hardware procurement is needed.
Q: How long does installation take?
A: Typical replacement time is 5–10 minutes. The design is drop-in, requiring only removal of the old assembly, insertion of the new one, and a quick alignment check. No firmware updates or recalibration is necessary.
Q: Can I use this printhead with USB or Ethernet printers, or only Wi-Fi models?
A: The P1083320-016 is compatible with ZT620 and ZT620R printers regardless of connectivity method — Wi-Fi, Ethernet, or USB. Connectivity type does not affect printhead compatibility.
Q: How does print quality degrade over time?
A: Over thousands of label cycles, the printhead's heating elements gradually lose surface smoothness. This causes uneven heat distribution, resulting in faded or streaky print output, particularly visible in barcode edge definition. Replacing the printhead restores original thermal transfer consistency and barcode scan reliability.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Zebra P1083320-016 across several large-scale warehouse deployments running mixed ZT620 and ZT620R fleets. This is a straightforward OEM replacement that reflects Zebra's modular, maintainable approach to industrial thermal printing. At 300 dpi, print clarity remains sharp throughout the printhead's operational lifespan, and the kit format eliminates the procurement friction that often delays printer repairs in distributed operations.
Technical Highlights:
- 300 dpi Output Consistency: Barcode scan rates remain above 99% through the printhead's full service life when deployed in typical warehouse volumes (500–1500 labels daily). High-throughput sites should expect replacement every 9–12 months rather than the advertised 12–18 months, particularly on uncoated film stock.
- Direct-Thermal and Thermal-Transfer Capability: Single part number handles both ZT620 and ZT620R configurations. This flexibility reduces spare-parts inventory complexity across warehouse networks where label-stock strategies vary by facility or carrier requirement.
- Wi-Fi Compatibility: ZT620 units equipped with Wi-Fi modules can route print jobs without Ethernet or USB dependency. This matters in high-density warehouse layouts where running cable runs across picking floors becomes impractical or creates trip hazards.
Deployment Considerations:
- Replacement cycles vary significantly by media type. Direct-thermal on glossy coated stock extends head life 15–18 months; uncoated film or kraft stock accelerates wear to 6–9 months in high-throughput environments. Budget for two spare kits per printer if you operate 2000+ labels daily.
- Monitor printhead usage via the ZT620's web interface or Zebra's printer management tools. Don't wait for barcodes to fail visibly — proactive replacement during scheduled maintenance eliminates emergency downtime and reprinting costs.
The P1083320-016 is the correct choice for any organization standardized on Zebra ZT620 or ZT620R equipment operating in parcel, 3PL, healthcare, or manufacturing environments where barcode reliability and scan-first-pass rates directly impact operational cost per label printed.
