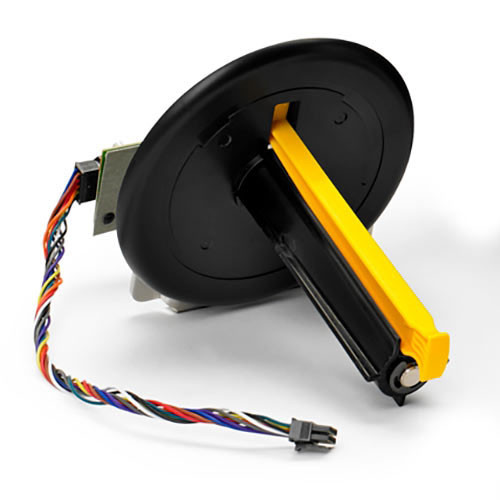

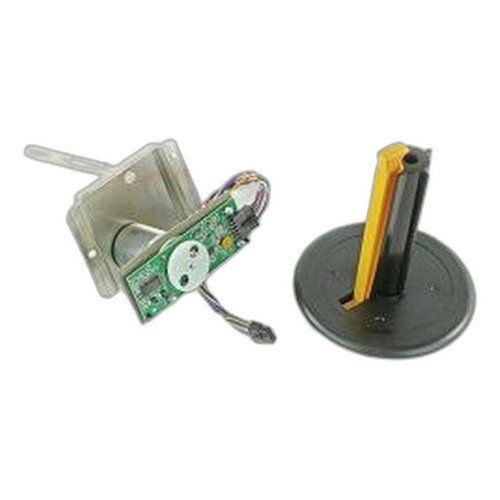

Zebra P1058930-052 ZT410 Liner Take-Up Spindle & Motor

Zebra P1058930-052 ZT410 Liner Take-Up Spindle & Motor

Overview

The Zebra P1058930-052 is a genuine OEM liner take-up spindle and motor assembly engineered specifically for the ZT410 industrial thermal label printer. This spare part enables automated removal of release liner from finished labels—eliminating a manual bottleneck in high-volume production environments. When label printing speed outpaces operator handling capacity, this motor-driven spindle keeps production flowing without adding headcount. The P1058930-052 (often searched as P1058930 052) integrates directly into existing ZT410 hardware via wired connection to the printer's control electronics, requiring no external power supply or additional infrastructure.

Key Features

• OEM Genuine Component: Direct Zebra replacement part—ensures full compatibility and meets all ZT410 performance specifications. Using genuine parts avoids the risk of firmware conflicts or mechanical misalignment that can occur with third-party alternatives.
• Complete Assembly Kit: Spindle mechanism and integrated motor ship as a matched pair, meaning no separate procurement or integration testing. One part number covers the entire take-up function.
• Wired Motor Control: Connects directly to the ZT410's motor control board via integrated harness. No wireless or Bluetooth complications—deterministic electrical integration eliminates timing variance in label feed.
• Automated Liner Removal: Eliminates manual peeling of release liner after print. In environments printing 500+ labels per hour, manual removal becomes a production constraint; automation here recovers operator time for other tasks and reduces label jams caused by incomplete liner separation.
• Drop-In Installation: Designed for ZT410 models equipped with take-up motor mounting brackets. Installation does not require firmware updates or recalibration—mount, wire, and operate. Straightforward enough for field deployment without vendor support.
• High-Volume Production Ready: Built for continuous duty cycles typical in distribution centers, manufacturing label production, and logistics operations. Motor is rated for the thermal printer's standard operating envelope (temperature, humidity, print speed range).

Integration & Compatibility

The P1058930-052 mounts to the ZT410 using existing bracket provisions on the printer frame. Electrical connection is via a single wired harness to the printer's motor control subsystem. No additional drivers, firmware patches, or third-party software are required—the ZT410's standard control firmware recognizes and operates the motor automatically once installed. This modular design allows operators to retrofit existing ZT410 units with take-up capability without replacing the printer itself, extending the useful life of installed equipment and deferring capital expenditure on a full printer upgrade.

Application & Use Cases

Typical deployments include regional distribution centers printing shipping labels at high speed where manual liner removal becomes an operator bottleneck; manufacturing plants producing labeled products (food, pharmaceuticals, consumer goods) where labels carry release liner and must be finished before application; and logistics hubs running continuous label production across multiple shifts. The spindle motor reduces jam risk by ensuring consistent liner separation, improving print-to-application uptime. In facilities running two or three shifts, automating liner removal often justifies the P1058930-052 cost within the first few months via reduced waste and labor reallocation.

Frequently Asked Questions

Q: Is the P1058930-052 compatible with all ZT410 models?

A: The P1058930-052 is designed for ZT410 printers equipped with take-up motor mounting brackets. Verify that your ZT410 has the bracket provisions before ordering. Consult your ZT410 documentation or your distributor if unsure.

Q: Does the motor require a separate power supply?

A: No. The P1058930-052 draws power from the ZT410's internal motor control board via the integrated wired harness. No additional AC or DC supply is needed.

Q: Can I retrofit this to an existing ZT410 in the field?

A: Yes. Installation is a field-replaceable assembly—mount to bracket, connect the harness, and power on. No firmware update or recalibration required. Most installations take under 30 minutes.

Q: What is the warranty on the P1058930-052?

A: Warranty terms vary by distributor and region. Contact your authorized Zebra distributor for specific warranty coverage and support terms for this spare part.

Q: Does the motor work with both woven and adhesive-backed labels?

A: The spindle removes release liner, so it is compatible with any label format that carries a release liner (facestock + liner combination). It does not directly interact with label adhesive or backing material.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Zebra P1058930-052 during ZT410 deployment planning for a regional distribution center handling 2,000+ labels per shift. This liner take-up spindle and motor kit directly addresses a real production constraint: at print speeds exceeding 150 mm/second, manual liner peeling becomes the bottleneck, not the printer. The P1058930-052 solves that by automating what was consuming 15–20% of a label finisher's shift.

Technical Highlights:

• Wired Motor Integration: Direct connection to ZT410 control board eliminates wireless latency and synchronization issues. Motor timing is deterministic—liner removal happens at print speed, not after operator intervention.
• OEM Genuine Part: Using Zebra's own assembly avoids mechanical tolerance stacking that occurs with aftermarket spindles. Liner separation is consistent, reducing jams from partial-peel failures.
• No External Power: Motor draws from ZT410 internal supply via harness. Eliminates the need for a separate 24VDC outlet or additional cabling runs—simplifies installation in constrained print-area footprints.

Deployment Considerations:

• Verify your ZT410 has the motor mounting bracket before ordering—not all ZT410 units ship with this provision. Check the printer's option list or contact your distributor.
• Installation is straightforward, but the spindle motor assumes labels are printed with a release liner. If you switch to non-liner labels, the motor becomes inert—not a problem, just unused capacity.

For distribution centers and manufacturing facilities printing 500+ labels daily with liner formats, the P1058930-052 is a justified upgrade. It recovers operator capacity, reduces jam-related downtime, and costs a fraction of a new printer. Retrofit it into an aging ZT410 to extend its operational life by 3–5 years.
