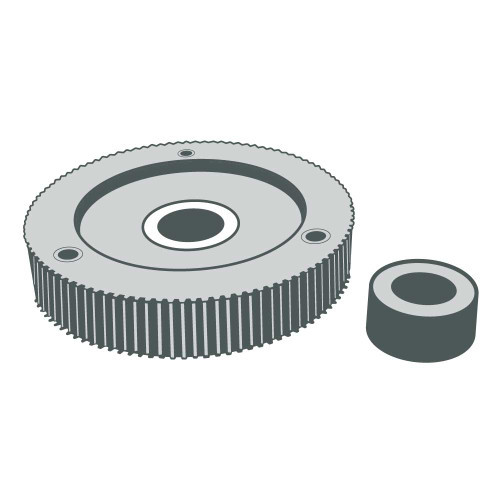

Zebra P1046696-901 Compound Pulley Kit for ZE500 Series Printers
Overview
The Zebra P1046696-901 is an OEM compound pulley kit designed specifically for Zebra ZE500 series thermal barcode and label printers operating at 300 dots per inch (dpi) resolution. This spare part is engineered to maintain precise mechanical operation of the printer's media drive system and is part of Zebra's comprehensive parts ecosystem for enterprise-grade printing solutions. The P1046696-901 (often searched as P1046696 901) is a critical component for facilities managing high-volume printing environments where reliability and uptime are non-negotiable.
Key Features
- OEM Specification: Manufactured to exact Zebra specifications for ZE500 series compatibility, ensuring seamless integration with existing printer systems
- 300dpi Print Resolution Support: Designed for use with ZE500 printers configured for 300dpi output, supporting label and barcode applications requiring fine detail
- Media Drive System Component: Functions as part of the media advancement mechanism, enabling consistent and precise label feeding during print cycles
- Compound Pulley Design: Multi-stage pulley geometry distributes tension and load across the media drive belt system, reducing wear and extending service intervals
- Replacement Part Status: Direct replacement for worn or damaged pulleys in ZE500 series units; part of routine preventive maintenance programs
- ZE500 Series Compatibility: Universal fitment across ZE500 model variants, including ZE500-4 and ZE500-6 configurations
Integration & Compatibility
The P1046696-901 is compatible with all Zebra ZE500 series thermal printers manufactured for 300dpi operation. This kit is intended for replacement during scheduled maintenance cycles or when media drive performance degradation is detected. Integration requires basic mechanical tools and familiarity with printer maintenance procedures. Zebra recommends replacing pulleys as part of comprehensive printer maintenance programs in high-volume printing facilities to maintain consistent label quality and reduce unplanned downtime.
Maintenance & Operational Context
Compound pulleys in thermal printer media drive systems experience cumulative wear from repeated belt tension cycles and media friction. Regular inspection and preventive replacement of the P1046696-901 kit is recommended every 12–18 months in facilities printing 10,000+ labels per day, or as media drive performance metrics indicate. Worn pulleys typically manifest as uneven label advancement, media jams, or increased motor load on diagnostics. Replacement of the complete pulley kit ensures balanced tension restoration across the media path.
This part is held in inventory by authorized Zebra distributors and integrators supporting enterprise printing networks. Stocking this spare part reduces repair turnaround time and minimizes production disruption in warehouse, logistics, and retail environments dependent on continuous label printing.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Zebra P1046696-901 compound pulley kit across multiple high-volume label printing deployments. This OEM part is critical for maintaining media drive reliability in ZE500 series printers, especially in logistics and warehouse environments where print volume and duty cycle demand preventive maintenance discipline.
Technical Highlights:
- Media Drive Integrity: The compound pulley design maintains consistent belt tension across multiple drive points, directly supporting label advancement precision and print quality consistency
- 300dpi Resolution Optimization: Designed specifically for fine-resolution printing where media alignment tolerance is tight; worn pulleys degrade registration accuracy
Deployment Considerations:
- Stock this kit in your parts inventory if you operate three or more ZE500 series printers; replacement cycles are predictable and having on-site spares eliminates service delays
- Schedule pulley kit replacement during planned maintenance windows rather than reactive failure mode; worn pulleys generate increasing motor load, visible in printer diagnostics before complete failure
For facilities committed to continuous printing operations, the P1046696-901 is a foundational preventive maintenance item. Pair with belt replacement kits (such as P1046696-145) for comprehensive media drive system renewal every 18–24 months depending on print volume.
