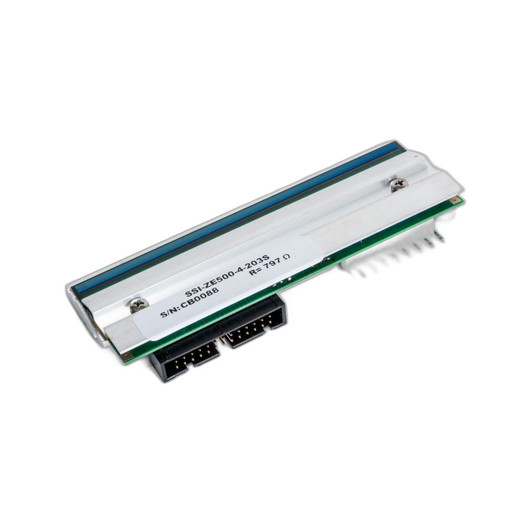

Zebra P1046696-099 Thermal Printhead 203 DPI

Zebra P1046696-099 Thermal Printhead

Overview

The Zebra P1046696-099 is a replacement thermal printhead designed for ZE500-4 series industrial label and barcode printers. This printhead operates at 203 dots per inch (DPI) resolution and supports both thermal transfer and direct thermal printing modes, making it suitable for a wide range of labeling applications in warehousing, logistics, and asset tracking environments. The P1046696-099 is engineered for continuous production environments where reliable, high-volume printing is essential.

Key Features

• 203 DPI Resolution: Delivers sharp, scannable barcode and label output for standard industrial applications including UPC, QR codes, and variable data printing
• Dual Thermal Technology Support: Compatible with both thermal transfer ribbon and direct thermal media, providing flexibility in media selection and cost management
• ZE500-4 Compatibility: Purpose-built replacement component for Zebra ZE500-4 printer series, with both right-hand (RH) and left-hand (LH) mounting configurations available
• Industrial-Grade Construction: Manufactured to withstand continuous production cycles with reliable performance in high-throughput warehouse and distribution environments
• OEM Part: Genuine Zebra component ensuring compatibility and warranty protection
• Drop-In Replacement: Direct replacement part that integrates seamlessly with existing ZE500-4 printer infrastructure without recalibration or system modifications

Thermal Printing Technology

The P1046696-099 printhead uses proven thermal printing technology that eliminates the need for printing inks or toners. Thermal transfer printing uses a heated element to transfer wax or resin-based ribbon onto label stock, while direct thermal printing applies heat directly to thermally sensitive media. This dual-mode capability means you can optimize your consumable costs based on application requirements—thermal transfer for durability on labels that require extended shelf life, or direct thermal for short-term labeling where cost efficiency is prioritized.

Integration & Compatibility

The Zebra P1046696-099 is engineered specifically for Zebra ZE500-4 industrial label printers and is available in both right-hand and left-hand configurations to accommodate different printer setups and mounting arrangements. This part is compatible with Zebra's complete ZE500 series ecosystem and integrates directly with existing printer control systems. Operators should reference printer documentation for specific installation procedures and calibration requirements following printhead replacement.

Application Suitability

This printhead is ideal for manufacturing, warehouse operations, logistics hubs, and distribution centers where high-volume barcode and label printing is required. Industries leveraging this component include third-party logistics (3PL), e-commerce fulfillment, healthcare asset tracking, and manufacturing operations tracking. The 203 DPI resolution provides sufficient clarity for both standard linear barcodes and 2D codes while maintaining fast print speeds characteristic of ZE500-4 printers.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During deployment planning for a mid-sized distribution facility, I evaluated the Zebra P1046696-099 as part of a ZE500-4 printer refresh. This is a straightforward replacement component that should be stocked as a spare part by any organization running Zebra industrial printers in high-volume environments. The dual thermal technology support gives you operational flexibility—you're not locked into a single consumable stream.

Technical Highlights:

• 203 DPI Thermal Output: Supports both thermal transfer and direct thermal modes, allowing cost optimization across different labeling scenarios
• ZE500-4 Direct Replacement: Available in RH and LH configurations for flexible printer mounting and installation layouts

Deployment Considerations:

• Maintain spare printheads in inventory for high-utilization printer environments—thermal printheads are consumable components with predictable replacement cycles
• Document the RH/LH orientation of your printer configuration before ordering to ensure correct part installation

For organizations running Zebra ZE500-4 printers in production warehouses or fulfillment operations, the P1046696-099 is a critical spare part. Budget for periodic replacement based on your print volume and media type. Thermal transfer operations typically yield longer printhead life than direct thermal, but both consumable patterns are well-established in the industry.
