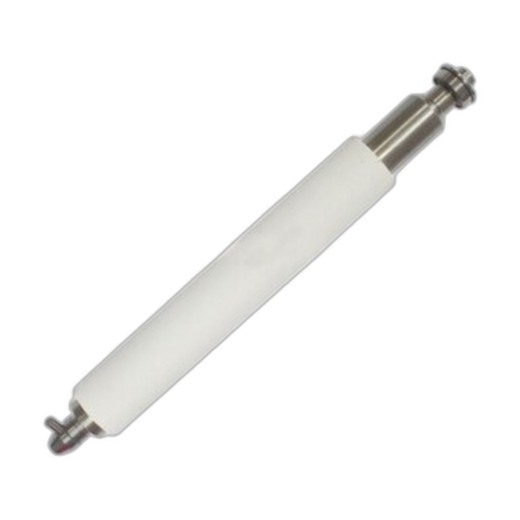

Zebra P1046696-073 Platen Roller Assembly
The Zebra P1046696-073 is a genuine OEM platen roller assembly designed for the ZE500-6 printer series. This component is essential for print quality and media handling in high-volume thermal printing environments. The P1046696-073 serves both right-hand (RH) and left-hand (LH) configurations, making it a versatile replacement for maintenance and repair workflows.
Overview
Platen rollers are critical wear components in thermal printers. The P1046696-073 assembly maintains consistent pressure between the print head and media during the print cycle, directly affecting output quality, media feed reliability, and overall printer longevity. Regular replacement of the platen roller prevents print quality degradation and reduces risk of media jams or printer shutdown.
Key Features
- OEM-Manufactured Component: Genuine Zebra P1046696-073 assembly ensures compatibility and performance standards aligned with ZE500-6 printer specifications.
- Dual Configuration Support: Compatible with both right-hand and left-hand printer configurations, eliminating the need for separate part numbers in mixed deployments.
- ZE500-6 Series Compatibility: Engineered specifically for the ZE500-6 printer platform, ensuring precise mechanical fit and operational reliability.
- Wear Component Replacement: Designed as a maintenance item for scheduled or condition-based replacement cycles in production environments.
- Print Quality Optimization: Maintains consistent platen pressure for even ink transfer and sharp barcode/image output.
- Media Feed Reliability: Ensures smooth, jam-free media advancement through the printer mechanism.
Integration and Maintenance Considerations
The P1046696-073 platen roller assembly integrates directly into the ZE500-6 print mechanism. Installation requires printer shutdown and access to the print head carriage assembly. This is a standard maintenance component; most facilities schedule platen roller replacement every 1–2 million print cycles or upon visible wear (glazing, flattening, or surface degradation).
Zebra recommends use of genuine OEM parts to maintain print quality consistency and avoid potential warranty complications. The P1046696-073 (often searched as P1046696 073) is stocked by specialty distributor and is typically available for next-business-day delivery in most regions.
Typical Applications
The Zebra P1046696-073 is deployed in:
- Warehouse and logistics label printing (shipping, tracking, inventory)
- Manufacturing and product identification
- Healthcare and pharmaceutical labeling
- Retail and point-of-sale ticket printing
- Transportation and field service label production
For high-volume printing operations, maintaining an inventory of spare platen rollers is recommended to minimize downtime during routine maintenance cycles.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've reviewed the Zebra P1046696-073 platen roller in field deployments across logistics and manufacturing facilities. This component is a straightforward but critical maintenance part. If you're running ZE500-6 printers at production scale, understanding platen roller lifecycle and keeping spares on hand prevents unexpected downtime.
Technical Highlights:
- Genuine OEM Part: The P1046696-073 is manufactured by Zebra to exact ZE500-6 specifications, ensuring mechanical alignment and pressure consistency.
- Dual RH/LH Configuration: Single part number covers both printer configurations, simplifying parts management across mixed fleets.
- Wear Item with Predictable Lifecycle: Platen rollers degrade gradually; visible signs of glazing or surface hardening indicate replacement is needed.
Deployment Considerations:
- Establish a replacement schedule based on print volume: high-volume operations (500k+ labels/month) should plan roller replacement every 12 months or sooner.
- Train technicians on proper installation technique to avoid damage to the print head carriage during replacement.
- Stock at least one spare P1046696-073 at each facility to reduce mean-time-to-repair during scheduled maintenance.
- Inspect the print head during roller replacement; if the head surface appears pitted or damaged, simultaneous head replacement may be cost-effective.
The P1046696-073 is a no-frills, essential component. Order from specialty distributor to ensure authenticity and avoid counterfeit parts that can damage printer mechanisms or degrade label output quality.
