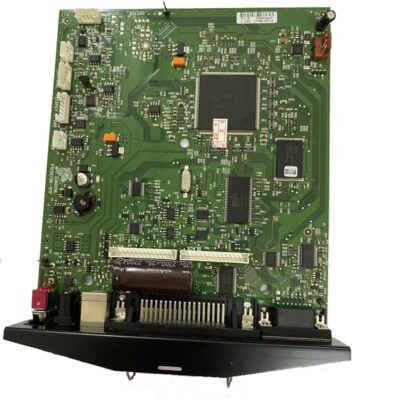

Zebra P1031815-019 GC420 Main Control PCB Assembly

Overview

The Zebra P1031815-019 is the main control PCB assembly for the GC420 thermal printer series. This OEM component manages core printer operations, including print head control, media advancement, cutter activation, and host communication across multiple connectivity standards. The P1031815-019 (often searched as P1031815 019) integrates serial, USB, parallel, and dedicated cutter control interfaces, making it suitable for integration into warehouse management systems, point-of-sale environments, shipping label applications, and inventory labeling workflows.

Key Features

Multi-Protocol Host Communication: Serial, USB, and parallel port interfaces allow flexible integration with legacy and modern host systems without requiring protocol converters.

Integrated Cutter Control: Dedicated cutter output supports automatic label separation, reducing manual handling and improving throughput in high-volume printing operations.

Print Head Management: Direct control of thermal print head operation, including temperature regulation and nozzle firing sequences.

Media Advance Control: Precision stepper motor management for consistent label positioning and spacing across print jobs.

OEM Component Quality: Manufactured to Zebra specifications with validated thermal cycling, electrical noise immunity, and long-term reliability in continuous-duty industrial environments.

Drop-In Replacement: Direct compatibility with GC420 printer models, eliminating firmware or calibration complications during board-level service.

Integration & Compatibility

The P1031815-019 is designed as a direct replacement component for Zebra GC420 thermal printers. Technicians and field service engineers deploying this board should verify host interface cable compatibility—serial (DB-9 or custom), USB (Type B or micro), and parallel (Centronics or DB-25) connectors vary by GC420 configuration. Firmware stored on the board supports Zebra's standard printer command language (ZPL) and PostScript protocols, ensuring compatibility with existing label design software and host applications without reprogramming.

This assembly integrates with GC420 mechanical chassis, power supply modules, and sensor inputs (media detect, printhead open, etc.) through validated connector pinouts. Integration partners should cross-reference the specific GC420 model revision to confirm power supply voltage and connector orientation before installation.

Package Contents

The P1031815-019 ships as a standalone PCB assembly ready for installation into GC420 printer chassis. No external power supply, cables, or accessories are included; these are retained from the existing printer unit or sourced separately according to GC420 configuration specifications.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Zebra P1031815-019 as a board-level replacement during GC420 printer lifecycle support planning. This main control assembly is straightforward to swap in a chassis-level repair scenario, provided the mechanical mounting and connector alignment are confirmed beforehand. The multi-interface design—serial, USB, parallel, plus cutter control—reflects the GC420's flexibility across different warehouse and retail deployment models.

Technical Highlights:

Host Connectivity: Serial, USB, and parallel interfaces eliminate the need for external protocol adapters when replacing failed boards in mixed-legacy infrastructure.
Cutter Integration: Onboard cutter control reduces external relay complexity, particularly valuable in high-speed label-per-demand workflows.

Deployment Considerations:

Verify cable connector types (serial DB-9 pinout, USB Type B, parallel 36-pin) match your existing GC420 configuration before ordering to avoid integration delays.
Test media advance and printhead temperature regulation immediately after installation to confirm electrical continuity and firmware boot-up on the new board.

For organizations running embedded GC420 printers in unattended environments—kiosks, shipping centers, production floors—keeping a spare P1031815-019 on hand minimizes downtime. The board's proven architecture and straightforward replacement process make it a reliable component-level repair option.
