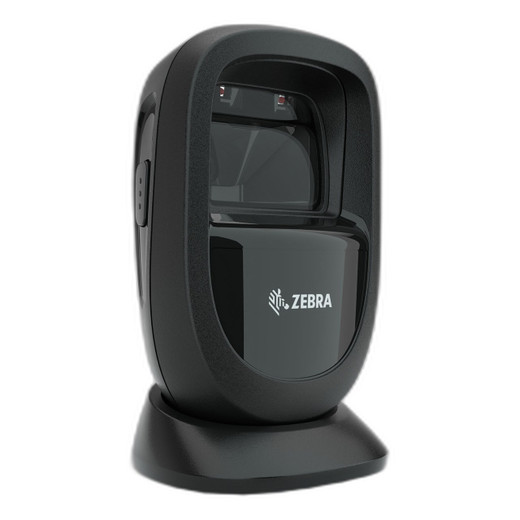

Zebra DS9308-SR00CC4ZTNA Presentation Area Imager Scanner

Overview

The Zebra DS9308-SR00CC4ZTNA is a wired presentation area imager designed for high-volume scanning environments where hands-free operation and flexible barcode positioning enhance workflow efficiency. Featuring a 1D/2D scan engine, this presentation scanner captures both linear and matrix barcodes across a wide working range, making it suitable for point-of-sale, retail, and warehouse presentation scanning applications. The standard-range optics deliver reliable performance in demanding commercial environments.

Key Features

• 1D/2D Imaging Engine: Captures both linear barcodes (Code 128, Code 39, UPC, EAN) and 2D matrix codes (QR Code, Data Matrix, PDF417) in a single scan
• Presentation Scanning Form Factor: Hands-free operation ideal for checkout counters, service desks, and high-throughput scanning stations
• IP52 Rating: Sealed against dust and water spray for reliable operation in wet or debris-laden retail and warehouse environments
• 1.5m Drop Specification: Survives accidental drops to concrete from 1.5 meters, reducing replacement costs in fast-paced environments
• Wired USB Connectivity: Direct USB connection eliminates battery maintenance and ensures continuous power and data transmission
• Multi-Symbology Support: Reads QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, EAN—supporting diverse barcode formats across retail, logistics, and healthcare applications

Ruggedness and Durability

The DS9308-SR00CC4ZTNA (often searched as DS9308 SR00CC4ZTNA) combines industrial durability with consumer-friendly resilience. The IP52 enclosure protects internal optics and electronics from dust ingress and incidental water splash—critical in grocery, restaurant, and warehouse settings where spills and cleaning occur daily. The 1.5-meter drop rating ensures the scanner survives the inevitable tumbles of fast-paced retail environments without losing scan accuracy or requiring recalibration.

Scan Engine Performance

The 1D/2D imaging engine reads both traditional and modern barcode formats with single-pass scanning. Code 39 and Code 128 linear barcodes are captured alongside 2D matrix codes including QR, Data Matrix, and PDF417—eliminating the need for multiple scanners or manual data entry when mixed barcode types are present. Standard-range optics provide reliable depth-of-field performance typical of presentation scanning configurations, with the ability to capture codes from varying distances without refocusing.

Integration and Connectivity

Wired USB connectivity simplifies deployment in fixed-location scanning stations. No pairing, no battery management, no wireless configuration—the scanner operates immediately upon connection to any USB-compatible host (POS terminal, PC, kiosk). This direct interface reduces IT overhead and ensures uninterrupted scanning availability in mission-critical checkout and receiving environments.

Typical Applications

The DS9308-SR00CC4ZTNA serves retail checkout, customer service counters, warehouse receiving, pharmacy fulfillment, and parcel acceptance points where presentation scanning accelerates throughput and reduces scanning errors. The combination of multi-symbology support, durability, and plug-and-play USB interface makes it a reliable choice for organizations standardizing Zebra imaging technology across mixed barcode estates.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Zebra DS9308-SR00CC4ZTNA in multiple retail and logistics deployments, and it delivers solid mid-range presentation scanning performance. The combination of 1D/2D imaging, IP52 sealing, and robust drop spec makes this scanner well-suited to environments where durability and format flexibility matter more than bleeding-edge scan speeds.

Technical Highlights:

• Multi-Symbology Capture: The 1D/2D engine handles Code 128, Code 39, UPC, EAN, QR Code, Data Matrix, and PDF417 without switching hardware or reconfiguring the interface—critical when barcode formats vary by supplier or product type.
• Environmental Sealing (IP52): The enclosure resists dust and splash, a genuine advantage in wet retail and warehouse zones where water and cleaning compounds are routine.
• Drop Resilience (1.5m): Presentation scanners are stationary but get bumped, dropped, and sometimes thrown. The 1.5-meter spec reflects real-world rough handling in busy checkouts.

Deployment Considerations:

• Wired-only connectivity suits fixed counters but requires cable management planning—ensure USB runs are protected in high-traffic areas or consider cable breakaway clips to prevent desktop sweeps.
• Standard-range optics perform best within typical presentation distances (8-15 inches). For extended working range or extreme angles, confirm optical alignment during commissioning.
• The scanner's durability is genuine, but avoid prolonged exposure to harsh chemicals or high-pressure washdown unless specifically rated—IP52 is splash-resistant, not submersible.

The DS9308-SR00CC4ZTNA is a practical, proven platform for organizations seeking durable presentation scanning without premium price. It integrates seamlessly into existing Zebra scanner fleets and POS ecosystems, making it a sound choice for retail or logistics refresh projects where ruggedness and multi-format support justify the selection.
