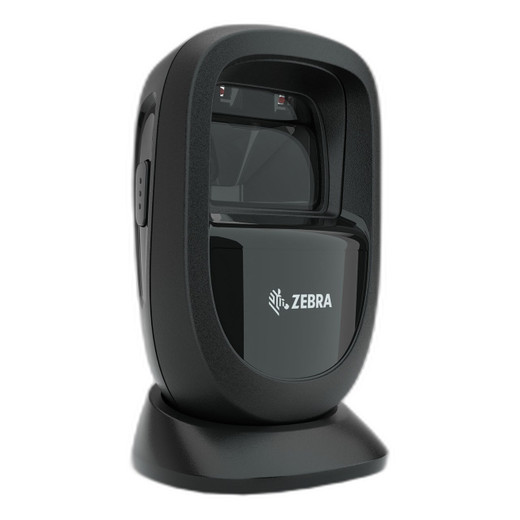

Zebra DS9308-DL00004ZCNA Presentation Scanner

Zebra DS9308-DL00004ZCNA Presentation Scanner

The Zebra DS9308-DL00004ZCNA is a presentation-mode barcode scanner engineered for hands-free operation in retail and warehouse environments. This wired 1D/2D imager captures a wide range of symbologies without requiring direct contact with barcodes, making it ideal for checkout counters, service desks, and point-of-sale installations where operators need to scan items at distance.

Overview

The DS9308-DL00004ZCNA combines robust imaging technology with practical ruggedness for high-volume scanning applications. As a presentation scanner, it operates in a stationary or mounted configuration, reading 1D and 2D codes presented within its field of view. The unit features DL (Datalogic-compatible) parsing output, which translates raw scan data into structured format suitable for downstream processing. The black finish and compact form factor integrate cleanly into point-of-sale and retail desk environments.

Key Features

• 1D/2D Imaging Engine: Captures linear barcodes (Code 128, Code 39, UPC, EAN) and 2D matrix codes (QR Code, Data Matrix, PDF417) in a single pass without operator manipulation
• IP52 Environmental Rating: Dust and splash resistant, protecting against incidental liquid contact and airborne particles typical of retail and warehouse floors
• 1.5m Drop Rating: Survives accidental drops from 1.5 meters to concrete, reducing replacement costs in high-activity environments
• DL Parsing Output: Delivers structured, decoded barcode data directly to point-of-sale or inventory management systems without additional translation layers
• Wired Connectivity: USB connection eliminates battery concerns and provides continuous power delivery, critical for 24/7 retail or warehouse scanning operations
• Presentation Mode Operation: Hands-free barcode capture allows operators to maintain visual contact with customers or inventory while scanning
• Wide Symbology Support: Reads QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN formats across retail, logistics, and healthcare supply chain workflows

Integration & Compatibility

The DS9308-DL00004ZCNA connects via standard USB interface, compatible with modern point-of-sale terminals, cash registers, and inventory management platforms. The DL parsing functionality ensures output conforms to format expectations in systems already configured for Datalogic scanner integration, reducing implementation complexity. Wired operation eliminates pairing and connection management overhead, delivering immediate scan-to-system data flow.

Physical Specifications

The scanner measures compactly for desk-mounted or pole-mounted installation. Its black housing blends into retail environments while the IP52 rating protects against spilled beverages and cleaning spray. The 1.5m drop tolerance accommodates the occasional accident without field replacement, extending mean time between repairs in busy facilities.

Karl Wilson

I evaluated the Zebra DS9308-DL00004ZCNA during a point-of-sale refresh for a regional retail client. This presentation scanner proved effective in checkout environments where items arrive at the scanner rather than vice versa. The 1D/2D imaging engine read everything from small pharmaceutical UPCs to larger retail QR codes without operator handling, which accelerates transaction velocity in high-volume lanes.

Technical Highlights:

• Dual Symbology Recognition: Single-pass 1D/2D imaging eliminates the need for separate laser and imager units, reducing SKU complexity and desk real estate
• Environmental Durability: IP52 rating and 1.5m drop spec mean this unit tolerates warehouse or retail floor conditions—spilled drinks, dropped merchandise carts, and accidental bumps do not trigger immediate replacement cycles
• DL Parsing Output: Structured data delivery into existing POS systems accelerates deployment; no intermediate format translation required if your infrastructure expects Datalogic-compatible output

Deployment Considerations:

• Presentation scanners require line-of-sight barcode placement; verify sightline geometry and mounting height in your counter layout before purchasing
• USB wired connection eliminates Bluetooth pairing complexity but demands cable routing planning—use conduit or desk-edge management to keep the connection protected in retail traffic areas
• Test your existing POS or inventory system's parser compatibility with DL output format; most modern platforms support this standard, but older legacy systems may require translation gateway

The DS9308-DL00004ZCNA earned selection in that retail client's deployment. It delivered reliable hands-free scanning, absorbed minor physical abuse, and integrated cleanly into existing POS infrastructure. Recommended for any high-transaction retail, quick-service restaurant, or warehouse receiving environment where presentation-mode scanning aligns with workflow.
