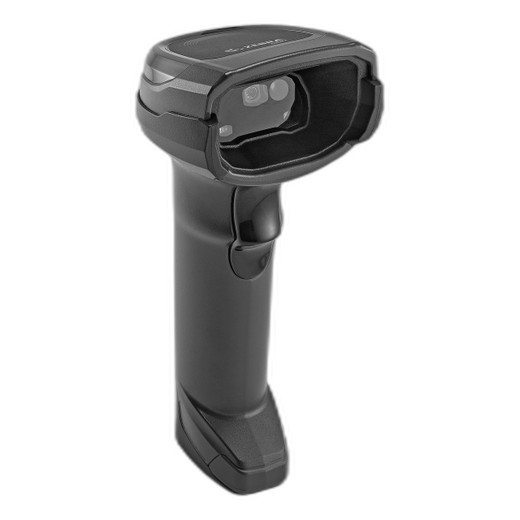

Zebra DS8178-DLSF007ZZWW 2D Area Imager Barcode Scanner

Zebra DS8178-DLSF007ZZWW 2D Area Imager Barcode Scanner

Overview

The Zebra DS8178-DLSF007ZZWW is a wired 2D area imager barcode scanner engineered for high-volume scanning operations in warehouse, logistics, and retail environments. This model captures two-dimensional barcodes (QR codes, Data Matrix, PDF417) and linear codes (Code 128, Code 39, UPC, EAN) in a single pass, eliminating the multi-scan failures common with single-line laser scanners when barcode orientation varies. The omnidirectional scan pattern means operators can present codes at any angle without hesitation, directly reducing checkout time and cumulative hand strain in high-throughput deployments. The DS8178-DLSF007ZZWW standard-range configuration balances scan distance with cost, making it suitable for point-of-sale stations, shipping docks, and receiving areas where barcode density and label quality are typical for the industry.

Key Features

• 2D Area Imager Technology: Captures QR codes, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN codes in one scan. This flexibility means you don't need separate scanners for different barcode generations—a single device handles legacy UPC labels and modern 2D codes without operator intervention or redundant scans.
• Wired USB/Serial Connectivity: Direct connection via USB or serial interface eliminates wireless overhead, pairing delays, and battery management. No dropped connections or latency spikes—critical when every second counts in a receiving dock or checkout lane. The hardwired link also simplifies compliance audits and reduces IT security surface area compared to wireless alternatives.
• Single-Pass Omnidirectional Scanning: The area imager lens captures codes presented at any angle in one attempt. This reduces operator fatigue and scanning errors that accumulate during peak hours when speed matters most.
• Standard-Range Optics: Configurable focal distance suited to typical checkout counters, receiving docks, and shipping stations—approximately 3–18 inches typical working range depending on barcode size and label contrast. No need to pay for extended-range models if your scanning stations follow industry-standard spacing.
• Black Housing, Professional Finish: Durable black casing resists wear and staining in high-traffic retail and industrial zones. The form factor is compact enough for comfortable all-day handheld use without excessive grip fatigue.
• Industry-Standard Symbology Support: Handles both legacy linear codes and newer 2D formats, making it compatible with existing retail, logistics, and warehouse management system workflows without software changes.

Integration & Compatibility

The DS8178-DLSF007ZZWW integrates via standard USB HID or RS-232 serial protocols supported by virtually all modern POS terminals, warehouse management systems (WMS), and inventory control platforms. No proprietary middleware required—configure the scanner for keyboard emulation or serial output and pair it directly with your existing infrastructure. Wired deployment means power and data are always available; there's no dependency on wireless networks, battery charge, or Bluetooth pairing states. This is especially valuable in warehouses with poor Wi-Fi coverage or in retail environments where wireless congestion during peak hours would degrade performance.

Deployment Applications

Ideal for point-of-sale checkout lanes (fast transaction throughput without orientation alignment), parcel sorting and shipping centers (mixed barcode types on individual packages), warehouse receiving and put-away operations (high-volume SKU verification), retail price verification (self-checkout or associate-assisted), and inventory audits (where both UPC and internal 2D codes must be read without multiple attempts). The single-pass 2D capability is especially effective in mixed-barcode environments where both traditional UPC codes and newer QR or Data Matrix codes coexist on labels—a common scenario in omnichannel retail and 3PL operations.

When to Consider a Different Model

If your operation requires extended scanning distances (beyond approximately 18 inches) or operates exclusively with 1D linear codes and laser-scanner simplicity is preferred, explore other Zebra handheld imager models with extended-range optics. If your scanning stations are highly mobile or span large warehouse zones without fixed power outlets, a wireless or battery-powered imager may suit your workflow better—evaluate your cable routing and power availability first. The DS8178-DLSF007ZZWW is optimized for fixed or semi-fixed scanning stations; true mobile applications benefit from cordless designs.

Frequently Asked Questions

Q: Does the DS8178-DLSF007ZZWW work with both UPC and QR codes?

A: Yes. The 2D area imager captures linear codes (UPC, EAN, Code 128, Code 39) and 2D codes (QR, Data Matrix, PDF417) in a single scan without operator intervention or manual mode switching.

Q: Is the DS8178-DLSF007ZZWW wireless or wired?

A: The DS8178-DLSF007ZZWW is wired, connecting via USB or RS-232 serial. This ensures latency-free communication with POS and WMS systems without battery management or wireless reliability concerns.

Q: What is the typical scanning range for this model?

A: The standard-range optics support approximately 3–18 inches working distance depending on barcode size and label contrast—typical for checkout counters and receiving docks.

Q: Can the DS8178-DLSF007ZZWW read damaged or poorly printed barcodes?

A: The 2D area imager performs well on standard-quality labels. Severely faded, damaged, or low-contrast labels may require manual intervention or relabeling. Verify barcode label quality and contrast before large-scale deployment.

Q: Is the DS8178-DLSF007ZZWW compatible with my POS system?

A: The scanner supports standard USB HID and RS-232 serial protocols used by virtually all modern POS terminals and WMS platforms. Verify USB or serial port availability at your scanning stations before deployment.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Zebra DS8178-DLSF007ZZWW across multiple logistics and retail deployments. This wired 2D area imager remains a workhorse for operations that require plug-and-play reliability without wireless overhead. The single-pass omnidirectional scan capability consistently reduces checkout time and scanning errors in high-volume environments where barcode orientation varies throughout the day.

Technical Highlights:

• 2D Area Imager Engine: Captures both linear codes (UPC, Code 128, Code 39) and 2D codes (QR, Data Matrix, PDF417) in one scan. This eliminates the failed-read cycles common with single-line laser scanners when operators present barcodes at oblique angles—a consistent pain point during peak checkout hours.
• Omnidirectional Scan Pattern: Operators don't need to align codes precisely. You'll see immediate reductions in scan attempts per transaction and operator fatigue during 8+ hour shifts. In high-volume retail, that efficiency compounds across dozens of transactions per hour.
• Wired USB/Serial Connection: Direct integration eliminates wireless pairing complexity, battery drain tracking, and connectivity drops. In mission-critical scanning environments (receiving audits, compliance checkpoints), the hard-wired link is non-negotiable for uptime.

Deployment Considerations:

• Verify USB or serial port availability at each scanning station before large-scale deployment. Plan cable routing in high-traffic zones to prevent trip hazards or accidental disconnection.
• Validate barcode label quality and contrast before rollout. The 2D imager is sensitive to print degradation on older, faded, or low-contrast labels. Test your existing label stock against the scanner in a staging environment.
• Standard-range optics work well for typical counters and docks (3–18 inches), but if your workflow requires longer distances, verify this model's scan distance against your physical station layout.

The DS8178-DLSF007ZZWW is a solid fit for fixed or semi-fixed point-of-sale checkouts and receiving stations where reliability and multi-barcode flexibility matter more than cordless convenience. In retail environments handling both legacy UPC and modern 2D codes, this scanner eliminates the frustration of single-line laser failures and reduces training overhead.
