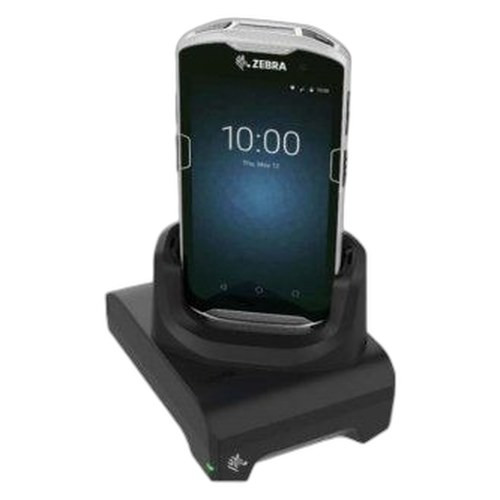

Zebra CRD-TC51-1SCU1-01 TC5X 1-Slot USB Cradle
Overview
The Zebra CRD-TC51-1SCU1-01 is a single-slot wired docking cradle engineered for Zebra TC5X series rugged mobile computers. This accessory provides simultaneous charging and data synchronization via USB connectivity, eliminating downtime between shifts and enabling fast fleet device rotation in warehouse, logistics, and field service environments. The cradle integrates into existing dock infrastructure without requiring supplementary power supplies or network configuration, making it a straightforward drop-in addition to your current TC5X deployment.
Key Features
- 1-Slot Docking Capacity: Accommodates a single TC5X device per cradle unit. Deploy multiple cradles in a bank configuration when fleet device count requires faster turnaround between operational cycles — typical in shift-based warehouse operations where downtime per device must be minimized.
- USB Wired Connectivity: Data synchronization and charging occur over a single USB connection. This design eliminates wireless pairing overhead and battery drain, ensuring predictable charge rates and reliable file transfer without network interference — critical in high-density RF environments (e.g., large distribution centers running competing WLAN/barcode RF networks).
- Compatible with TC51, TC56, and TC57: The cradle works across the full TC5X lineage. If your fleet includes mixed-generation TC51, TC56, or TC57 units, one cradle type supports all three, reducing SKU proliferation and spare parts inventory.
- No External Power Supply Required: The USB port supplies power directly to the docked device. Your existing infrastructure—USB hub, wall charger, or host computer—powers the cradle. This eliminates the need to route dedicated power cables to each dock station and simplifies site planning for multi-bay cradle configurations.
- Minimal Configuration Overhead: Once positioned and USB-cabled, the cradle requires no firmware updates, app installation, or network configuration. It functions immediately as a charging and sync dock. This is valuable in environments with strict IT change-control policies or limited technical staff per location.
- Stable Device Orientation: The single-slot design provides a fixed, stable docking position. Devices remain upright and secure during charging and data operations, reducing risk of accidental disconnection or physical damage compared to loose charging or ad-hoc stacking.
Integration and Compatibility
The CRD-TC51-1SCU1-01 (often searched as CRD TC51 1SCU1 01) integrates with any USB 2.0 or USB 3.0 host port. Typical deployment scenarios include connection to a wall-mounted multi-port USB charger, a desktop or laptop USB hub, or a docking station controller if your IT infrastructure uses centralized device management. The cradle carries no network intelligence—it is purely a mechanical and electrical interface between the TC5X device and the power/data source. Verify your power source can supply minimum current for the TC5X device model in your fleet; consult your device's power specification sheet.
What's in the Box
Frequently Asked Questions
Q: Can I charge multiple TC5X devices simultaneously using one cradle?
A: No. The CRD-TC51-1SCU1-01 is a single-slot cradle. To charge multiple devices in parallel, deploy multiple cradles, each connected to a separate USB power source or hub port.
Q: Does the cradle work with other Zebra mobile computer models?
A: The CRD-TC51-1SCU1-01 is designed for TC51, TC56, and TC57 series devices. Other Zebra mobile computer models (e.g., MC3300, MC9300, TC70) require different cradles. Confirm your device model before ordering.
Q: What power source should I use?
A: Any standard USB power supply, wall adapter, or host computer USB port with sufficient current capacity for your specific TC5X device. Most USB 2.0 and 3.0 sources support the TC5X charging requirements; refer to the TC5X device datasheet for exact power specifications.
Q: Do I need special software or drivers to use this cradle?
A: No. The cradle is a passive USB docking interface. Plug in the USB cable, dock the device, and charging and data sync begin automatically. Your TC5X will recognize the connection as it would any standard USB connection.
Q: Can the cradle be wall-mounted or does it sit on a desk?
A: The cradle is designed as a standalone dock unit. It can rest on a desk, shelf, or flat surface. Wall-mounting or custom enclosure integration may be possible with additional brackets or adapters not included; contact your integrator to discuss custom mounting solutions for your specific workspace layout.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra CRD-TC51-1SCU1-01 is a straightforward but effective dock cradle for TC5X fleet environments. Its strength lies in simplicity: USB-powered, no network dependency, and compatible across TC51/TC56/TC57. If you run a warehouse or logistics operation with frequent device handoffs between shifts, the ability to dock and charge without software overhead is a real operational win.
Technical Highlights:
- Wired USB Connectivity: Single USB cable carries both power and data. Eliminates wireless pairing latency and battery drain associated with Bluetooth or wireless sync — essential when you need 2–3 minute charge top-ups between sorter runs.
- Single-Slot Design: One device per cradle. Scales linearly — deploy 5 cradles for 5 simultaneous charges. Reduces mechanical complexity and failure points compared to multi-bay designs, though requires more physical dock real estate if device count is high (50+).
- No External Power Supply: Draws power from any USB 2.0/3.0 source. Reduces cable clutter and eliminates dedicated power outlet requirements at dock stations — a meaningful constraint relief in retrofit deployments or mobile dock carts.
Deployment Considerations:
- Power Source Validation: Verify your USB power supply has sufficient current for the TC5X model in your fleet. USB 2.0 ports (500mA) may not provide full charging speed for some configurations; USB 3.0 (900mA) or higher-capacity adapters are preferable for consistent sub-1-hour charge cycles.
- Single-Device Bottleneck: If your fleet is large (30+ active TC5X devices per shift) and turnaround time is tight (under 15 minutes between ops), one cradle per device becomes cost-prohibitive. Consider multi-dock solutions or longer break windows if device count outpaces dock capacity.
- No Wireless Fallback: The CRD-TC51-1SCU1-01 is wired-only. If your IT infrastructure uses wireless-only policies (no USB ports at dock stations), you'll need alternative charging architecture (wireless chargers, USB-C docks with local battery, or policy exception).
This cradle is the right fit for small-to-medium TC5X fleets (5–20 active devices) in fixed dock environments with reliable USB power and moderate shift-change frequency. For high-density multi-device charging or bandwidth-intensive sync operations (large app deployments, video capture transfers), evaluate docking stations with integrated USB hubs or network-connected sync/charge cabinets.
