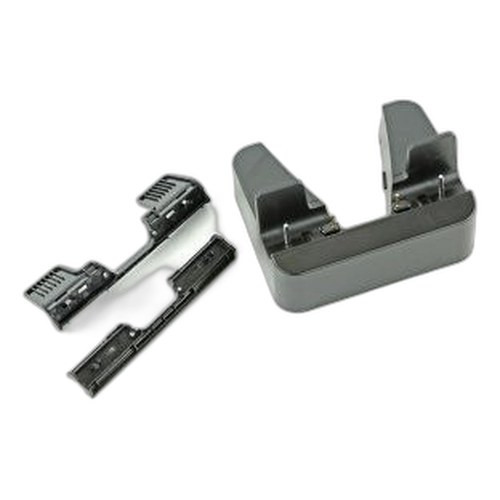

Zebra CRD-ET6X-1SNWS-01 Single-Slot Docking Cradle with HDMI
Overview
The Zebra CRD-ET6X-1SNWS-01 is a single-slot docking station designed for Zebra ET6X rugged mobile computers. This cradle consolidates device charging, data synchronization, and external display connectivity into one fixed workstation deployment. If your operation cycles ET6X units through pick-pack zones, returns processing, or inventory verification stations, this cradle eliminates repeated manual charging and docking cycles — meaning faster device readiness and less time spent tethering devices to chargers scattered across the warehouse floor.
Key Features
- HDMI Output: Native HDMI connectivity allows the docked ET6X to drive external monitors or displays at the workstation. Practical benefit: your warehouse operators can view device content on larger screens for inventory lookup, label printing confirmation, or quality-check workflows without handling the mobile device itself.
- Single-Slot Design: One cradle, one ET6X device at a time. Scales horizontally — deploy multiple cradles across different zones if you need parallel station capacity. Cost-effective for department-level or zone-based deployments rather than enterprise-wide multi-device banks.
- Integrated Charging: The cradle supplies power to the docked ET6X continuously, eliminating battery drain concerns during stationary operations. Devices remain ready for the next shift or operation without manual charging overhead.
- Data Synchronization Support: Dock-to-host communication enables real-time data transfer between the ET6X and backend systems. Warehouse management systems can push route updates, inventory snapshots, or asset assignments while the device sits in the cradle, reducing field sync wait times.
- Rugged Compatibility: Built to work with the Zebra ET6X family — a proven line of mobile computers rated for warehouse and distribution environments. The cradle handles the mechanical and electrical interface, so integrators can rely on established ET6X deployment patterns.
- Straightforward Integration: Installation into existing workstation builds is direct — no special firmware, no ONVIF negotiation, no protocol translation. Integrators can mount the cradle to a desk, counter, or wall bracket using standard mounting practices and connect the HDMI cable to an available display input.
Integration and Deployment Context
This cradle fits environments where mobile devices need fixed "home base" locations — returns desks, shipping docks, receiving bays, or zone-specific pick stations. The CRD-ET6X-1SNWS-01 works as part of a broader mobile device infrastructure, typically paired with a wireless network for field roaming and docking stations for stationary workflows. If operators alternate between handheld scanning (walking the warehouse) and desk-based verification (monitor-driven lookup), a cradle at each desk frees the device from a separate charger and delivers display output without a separate USB video adapter.
In systems requiring multiple concurrent charging or display stations, consider whether you need several CRD-ET6X-1SNWS-01 units deployed across zones, or if a multi-slot charging solution would be more practical. For single-device, single-display scenarios, this single-slot design is the appropriate choice.
What's in the Box
Refer to the manufacturer datasheet for exact contents and any accessory documentation that may be included with your unit.
Frequently Asked Questions
Q: Is the CRD-ET6X-1SNWS-01 compatible with other Zebra mobile devices?
A: The CRD-ET6X-1SNWS-01 is engineered specifically for the Zebra ET6X family. Compatibility with other Zebra models (ET1, ET5, TC5X, etc.) is not supported — use the cradle model designated for your specific device.
Q: What display resolution or refresh rate does the HDMI output support?
A: Refer to the ET6X mobile computer datasheet for HDMI output specifications. The cradle acts as a pass-through connector; actual HDMI performance depends on the ET6X processor and GPU capabilities.
Q: Can I daisy-chain multiple cradles to one power source?
A: Each cradle should be powered independently according to manufacturer guidance. Consult the datasheet or your integrator for power supply recommendations when deploying multiple units in a single location.
Q: Does the cradle support wireless charging?
A: No. The CRD-ET6X-1SNWS-01 is a wired docking cradle. Charging occurs only when the ET6X is mechanically seated in the cradle and electrically connected.
Q: What mounting options are available for the CRD-ET6X-1SNWS-01?
A: The cradle can be desk-mounted or integrated into a custom workstation frame. Consult the datasheet or contact your integrator for specific mounting bracket compatibility and installation templates.
Q: Is the cradle compatible with Zebra rugged case or protective enclosures on the ET6X?
A: Docking compatibility depends on device case thickness and connector access. Verify with the case manufacturer and test fitment before mass deployment — some protective cases may interfere with the cradle mechanical interface.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CRD-ET6X-1SNWS-01 is a straightforward accessory, but its deployment value hinges on how tightly your warehouse operations actually separate mobile and stationary workflows. I've seen integrators overestimate demand for multiple cradles — they deploy one per zone and then watch operators hand-carry devices between zones because the cradle adds friction rather than reducing it. The HDMI output is the real feature here; if your backend needs device output on a fixed monitor, this cradle eliminates the need for a separate USB-to-HDMI adapter or a mirroring setup.
Deployment Highlights:
- HDMI Output: Direct video pass-through to external displays. No middleware, no wireless mirroring lag. Real-world benefit: a returns processor can dock the ET6X at a desk and instantly see barcode scans, label data, or inventory lookups on a 24" monitor without touching the device. That's worth the cradle investment if you have 5+ stationary workstations.
- Single-Slot Capacity: One device per cradle. If you need to charge 10 ET6X units in parallel, you're buying 10 cradles or a multi-bay charging block — think ahead on SKU count and footprint.
- Powered Docking: The cradle handles power delivery; no external charger needed at the desk. Reduces cable clutter and operator confusion about which plug goes where.
Integration Gotchas:
- Case Compatibility: Rugged protective cases on the ET6X can block cradle engagement. If your fleet uses heavy drop-shocks cases, test fitment on a sample unit before ordering in volume. Some cases are too thick and prevent proper seating.
- HDMI Cable Management: The cradle itself doesn't include the display cable or power supply — those are your responsibility. Plan cable routing (especially in tight desks) and ensure the power outlet is nearby. Long HDMI runs can introduce signal degradation; stay within 15 meters if possible.
Best fit: distribution and fulfillment operations where operators dock devices at fixed pick-verification or QC stations. Avoid for highly mobile workflows where the cradle becomes a bottleneck. For zone-based deployments (returns, shipping, receiving), deploy one CRD-ET6X-1SNWS-01 per zone and validate operator adoption in pilot before rolling out fleet-wide.
