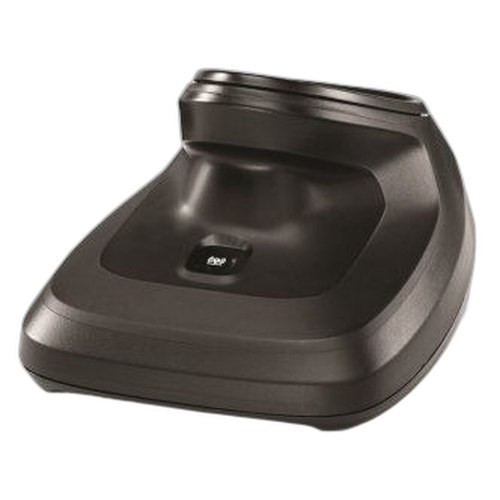

Zebra CR8178-PC100F4WW Presentation Cradle for DS8178
The Zebra CR8178-PC100F4WW is a docking cradle engineered specifically for the DS8178 handheld 2D scanner platform. This accessory eliminates the need to hold or repeatedly pick up a barcode scanner during high-volume checkout, service counter, or point-of-sale transactions — a concrete productivity gain when operators process dozens of items per minute. The cradle stabilizes the scanner in a presentation angle, enabling single-handed scanning operations while keeping both hands free for customer interaction, payment processing, or merchandise handling.
Key Features
- Bluetooth Wireless Connectivity: Communicates wirelessly with POS terminals and enterprise systems, eliminating cable clutter at the checkout counter and reducing tripping hazards. Wireless range and latency sufficient for retail environments where scanner-to-terminal distance typically stays under 30 feet.
- IP42 Environmental Rating: Dust and splash resistant, meaning spilled beverages, cleaning water, or dust from high-traffic retail floors won't immediately disable the cradle. Not submersion-rated — keep it away from sink-level hose-downs, but it tolerates everyday POS area conditions without protective enclosures.
- Hands-Free Presentation Mode: Positions the DS8178 scanner at a fixed angle suitable for retail transactions. Operator places item in front of scanner window and triggers the scan without gripping or repositioning the scanner between items — reduces hand fatigue and wrist strain during 8-hour shifts.
- DS8178 Platform Compatibility: Designed around the physical and electrical interface of the DS8178 scanner family. Do not assume compatibility with other Zebra scanner models without explicit verification — cross-family docking is not guaranteed.
- Black Finish: Standard industrial finish. Suitable for retail, hospitality, and light logistics environments where aesthetic consistency with typical POS hardware matters.
- Stable Docking Interface: Mechanical hold and electrical contacts are engineered to support repeated insertion/removal cycles typical in retail settings where scanners may be pulled for mobility tasks or troubleshooting.
Integration & Compatibility
The CR8178-PC100F4WW integrates with any enterprise system that accepts Bluetooth input from a DS8178 scanner — this includes standard POS terminals, cash registers, mobile devices running inventory or retail management software, and enterprise management platforms supporting HID (Human Interface Device) Bluetooth profiles. Configuration depends on your terminal or system's Bluetooth pairing process; consult your device documentation for specific steps. If your POS system requires USB-only input or legacy serial scanning, this cradle will not work without a Bluetooth-to-USB adapter or protocol gateway.
When to Choose a Different Solution
If your operators need mobile scanning — moving between aisles, roaming a warehouse, or scanning items on shelves — a handheld cradle or belt clip attachment to the scanner itself is more practical than a stationary presentation cradle. If your POS hardware does not support Bluetooth pairing or your IT policy restricts wireless devices on the retail network, consider wired cradle options within the Zebra scanner accessory line or upgrade your POS terminal to Bluetooth-capable hardware.
Frequently Asked Questions
Q: Does the CR8178-PC100F4WW work with other Zebra scanners?
A: No. This cradle is designed specifically for the DS8178 scanner platform. Do not attempt to dock other Zebra models without explicit manufacturer compatibility confirmation, as physical mounting and electrical contacts are engineered for DS8178 dimensions and connector type.
Q: Is the cradle Bluetooth secure enough for retail payment processing?
A: Bluetooth security depends on your POS system's implementation and encryption standards. The CR8178-PC100F4WW cradle itself does not add encryption — it passes scanning data via standard Bluetooth. Verify that your terminal or payment processor supports encrypted Bluetooth profiles (e.g., Bluetooth 5.0 with AES-CCM) and implements PIN or NFC pairing. Contact your payment processor or POS vendor for compliance requirements.
Q: Will IP42 protection survive daily cleaning?
A: IP42 means the cradle resists splashing water and light dust, but not sustained spray or submersion. Wipe-down with a damp cloth is acceptable. High-pressure spray hoses or steam cleaning will likely damage it. If your counter environment requires frequent washdown, consider a higher-rated accessory or protect the cradle with a waterproof cover during cleaning cycles.
Q: Can I wall-mount the CR8178-PC100F4WW?
A: Evidence does not indicate wall-mount or arm-mount compatibility. This is a tabletop presentation cradle. If wall mounting is required, consult Zebra's DS8178 accessory lineup for alternative docking solutions or mounting hardware designed for vertical installation.
Q: What is the warranty on the CR8178-PC100F4WW?
A: Warranty details are not provided in available documentation. Check your purchase order, invoice, or contact the vendor for warranty terms — typically Zebra accessories carry a 1- or 2-year manufacturer's defect warranty.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the CR8178-PC100F4WW in retail environments where scanner ergonomics and presentation-mode scanning directly affect operator throughput and error rates. The Bluetooth wireless architecture and IP42 environmental tolerance make this a practical fit for high-traffic checkout counters where repeated scanning volume justifies a stationary cradle — but integration success hinges on POS Bluetooth support and a clear understanding of what IP42 actually protects against.
Technical Highlights:
- Bluetooth Wireless (no cable): Eliminates the USB/serial tether between scanner and POS terminal. Eliminates cable replacement as a maintenance burden — real cost saving in multi-terminal retail chains. Wireless range adequate for standard checkout counter footprint (10–30 feet typical).
- IP42 Dust & Splash Resistance: Defeats accidental beverage spills and dust accumulation from open retail floors. Does not survive high-pressure washdown or submersion — if your cleaning protocol includes spray hoses, this is not the right cradle.
- DS8178 Platform Lock-In: Mechanical and electrical interface is DS8178-specific. Cross-docking with other Zebra scanner models or third-party scanners will result in misalignment, contact failure, and potential damage. Verify scanner model before procurement.
Deployment Considerations:
- POS Bluetooth pairing: Many older or budget POS terminals lack Bluetooth capability. Verify terminal specs before committing to wireless scanning — a wired cradle or USB adapter may be your only fallback if hardware doesn't support pairing.
- Gotcha — IP42 vs. retail washdown: IP42 is NOT waterproof. If your team uses a damp cloth for daily wipe-down, you're fine. If cleaning involves spray bottles or hose-downs, the cradle will fail. Plan your maintenance protocol before installation.
Position the CR8178-PC100F4WW as a checkout or service counter solution where presentation-angle scanning improves operator ergonomics and throughput justifies a dedicated, stationary docking point. It's not a roaming or multi-location tool — it's a single-station productivity play for high-volume retail or hospitality environments.
