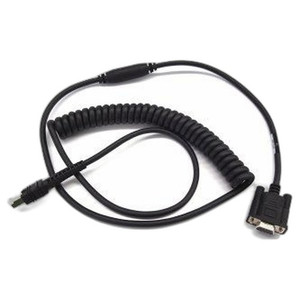

Zebra CBA-RF2-C09ZAR 9ft RS232 Serial Power Cable
Overview
The Zebra CBA-RF2-C09ZAR is a 9-foot coiled RS232 serial and power cable engineered to connect Zebra barcode scanners and point-of-sale equipment directly to host systems. This single cable handles both data transmission and power delivery, eliminating the need for separate serial and power connections—a genuine space-saver in tight checkout counters or warehouse workstations where cable clutter degrades workflow.
The cable features a 9-pin D-Sub female (DB9F) connector on one end and a 9-pin serial header connector on the other. The coiled design stretches to full 9-foot length when needed, then retracts to keep slack out of the way—critical in environments where trips and snags cause downtime. Standard RS232 signaling ensures compatibility with legacy scanning infrastructure and modern Zebra systems alike.
Key Features
- Integrated Serial and Power: Both data and power flow through a single cable, cutting installation time and reducing connector count at the host side. Fewer connections mean fewer potential failure points.
- 9-Foot Length: Provides reach across standard warehouse aisles, retail counter depths, and dock areas without requiring daisy-chaining or bulky extension cords that add cost and latency risk.
- Coiled Design: Retracts when not fully extended, keeping workspace uncluttered and reducing trip hazards that lead to equipment damage or worker injuries.
- DB9F Connector: Standard 9-pin D-Sub interface integrates seamlessly with legacy serial hosts, industrial PCs, and Zebra peripherals that predate USB-only architectures.
- Extended Temperature Range: Operates from −30°C through standard operating conditions, making it suitable for unheated warehouse areas, shipping docks, and refrigerated environments where standard cables fail.
- Standard RS232 Protocol Support: Communicates via industry-standard serial signaling, ensuring compatibility with established barcode scanning workflows and reducing integration complexity.
Integration & Compatibility
The CBA-RF2-C09ZAR connects to Zebra scanner models and point-of-sale systems that require RS232 serial connectivity with integrated power delivery. If your scanner or POS equipment has a 9-pin serial header input and draws power from that same connector, this cable is a direct fit. Verify your host system's connector type and power specifications before ordering—a mismatch will require an adapter or different cable.
This cable is particularly valuable in warehouses, retail chains, and logistics operations running older Zebra scanners or industrial systems that still rely on RS232 for data integrity in noisy RF environments. Modern USB-based scanners are common, but serial connectivity remains the standard for mission-critical scanning where RS232's built-in handshaking prevents data loss under high transaction volumes.
What's in the Box
- 1x Zebra CBA-RF2-C09ZAR 9ft Coiled RS232 Serial Power Cable
Frequently Asked Questions
Q: Will the CBA-RF2-C09ZAR work with my legacy Zebra scanner?
A: Yes, provided your scanner has a 9-pin serial header input and draws power from that connector. Check your scanner's installation guide for connector specifications before purchase.
Q: Can I use this cable in a refrigerated warehouse environment?
A: Yes. The CBA-RF2-C09ZAR operates from −30°C, making it suitable for cold storage and unheated loading docks where standard cables become brittle and fail.
Q: Does the coiled design affect data transmission quality?
A: No. The coil is a cable management convenience and does not impact RS232 signal integrity. Extend the cable fully when in use and retract it when not needed.
Q: What if my host system uses a different serial connector type?
A: The CBA-RF2-C09ZAR is keyed for 9-pin D-Sub and 9-pin serial header connectors. If your host uses a different format (e.g., RJ-45, mini-DIN), you'll need a different cable or an adapter.
Q: Is power delivery sufficient for my scanner?
A: The cable supports standard Zebra scanner power requirements when connected to a compatible host. Verify your scanner's power specifications in its documentation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CBA-RF2-C09ZAR is a straightforward cable—but its simplicity masks a real deployment win. If you're retrofitting a warehouse or retail environment with legacy Zebra scanners, integrating data and power into a single 9-foot coiled connector reduces both installation time and the failure surface. The extended temperature range (−30°C) is not window dressing; cold-chain facilities and unheated loading docks destroy ordinary cables, so this spec directly reduces callout costs.
Technical Highlights:
- Integrated Serial + Power: Eliminates dual-connector complexity; one cable carries both RS232 data and power, cutting host-side wiring and reducing connection-related intermittent failures.
- 9-Foot Coiled Length: Stretches to 9 feet when extended, retracts when stowed—a genuine space saver in crowded dock or counter setups. No need for external cable management or secondary extensions.
- −30°C Operating Floor: Validates use in cold storage, freezer aisles, and unheated receiving areas where standard PVC cables become brittle within weeks.
Deployment Considerations:
- Verify host connector type before purchase. A 9-pin D-Sub female (DB9F) on the host and a 9-pin serial header input are non-negotiable. Mismatches require adapters and add cost.
- RS232 signal quality depends on cable length and source grounding. At 9 feet this is well within RS232 spec (up to 50 feet for low-capacitance runs), but run a quick handshake test after installation to confirm data integrity.
- Power delivery is integrated but not unlimited. Check your scanner's current draw against the host's serial-port power budget. Newer enterprise scanners may exceed what the cable can safely deliver.
Deploy the CBA-RF2-C09ZAR in retrofit or brownfield warehouse integrations where Zebra RS232 scanners are already installed and you need a single, cold-resistant cable to replace worn or damaged originals. Skip it if your environment is climate-controlled and your scanners already have working cables; buy it if you're standardizing on a single Zebra serial infrastructure or qualifying equipment for refrigerated operations.
