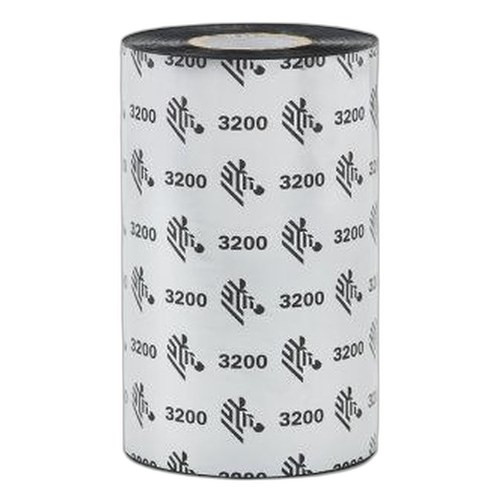

Zebra 03200BK04045 Wax/Resin Thermal Transfer Ribbon
The Zebra 03200BK04045 is a consumable-grade thermal transfer ribbon engineered for high-volume barcode label production in warehouse, logistics, and supply chain environments. This wax/resin formulation balances print permanence with material cost — a critical consideration when processing thousands of labels per shift across multiple printers.
Overview
Thermal transfer ribbons are essential consumables for barcode generation. The 03200BK04045 features a proven wax/resin blend chemistry that outperforms pure wax ribbons in durability and adhesion while maintaining a lower cost profile than 100% resin solutions. Each roll measures 40mm wide and stretches 450 meters in length — the extended capacity reduces ribbon cartridge changeover frequency, which matters in high-throughput picking and shipping operations where downtime directly impacts throughput. The product ships as a box of 6 rolls, reducing order frequency and ensuring consistent reserve stock for operations that cannot tolerate supply interruptions.
The wax/resin composition is optimized for coated paper and synthetic label stocks. This means you'll see strong print contrast and reliable adhesion even under thermal stress during the printing process — no edge smudging, no ink transfer to subsequent labels. The formulation performs consistently across standard label materials, reducing quality variability from one batch to the next.
Key Features
- Wax/Resin Formulation: Balanced chemistry delivers superior durability versus pure wax while staying cost-competitive compared to 100% resin ribbons — a meaningful tradeoff when ribbon spend scales across dozens of printers
- 40mm Width: Standard ribbon width compatible with industrial thermal printers from Zebra's ZD, ZT, and GK series that accept 40mm ribbon cartridges
- 450m Roll Length: Extended capacity per roll minimizes changeover downtime during peak warehouse operations — fewer ribbon swaps mean fewer production pauses
- Box of 6 Rolls: Bulk packaging provides working inventory cushion for mid-to-large operations, reducing unplanned supply chain disruptions
- Enhanced Adhesion: Wax/resin blend ensures strong ink bond to coated papers and synthetic polyester-based label stocks without edge bleeding or print ghosting
- Print Quality: Delivers crisp, high-contrast barcode and text output suitable for GS1, UPC, Code 128, and 2D barcode scanning without readability failures
- Thermal Stability: Engineered to withstand sustained print head temperatures across extended print runs — no ribbon curling, no coating separation, no mid-run failures
Integration & Compatibility
The 03200BK04045 ribbon is designed for Zebra thermal transfer printers accepting 40mm ribbon cartridges. Before deployment, confirm your printer's ribbon supply system matches the 40mm width specification and standard cartridge loading mechanism. Proper ribbon tension and print head alignment are prerequisites for optimal adhesion and barcode readability — verify these during initial commissioning. The wax/resin formulation is compatible with direct thermal paper, coated stock, and synthetic label materials commonly used in warehouse and logistics workflows. For printers requiring alternate ribbon widths (e.g., 24mm or 60mm) or alternative chemistries (pure wax for cost-sensitive applications, 100% resin for extreme durability), consult your printer documentation or a thermal printer specialist to confirm the correct part number before ordering.
Frequently Asked Questions
Q: What is the difference between wax, wax/resin, and resin ribbons?
A: Wax ribbons are the most cost-effective but offer lower durability and are best for short-term labels. Wax/resin (like the 03200BK04045) balances cost and durability, making it suitable for most coated papers and synthetic labels in warehouse environments. Resin ribbons provide maximum durability and chemical resistance but cost significantly more — reserve them for extreme conditions like outdoor labeling, chemical exposure, or long-term archive requirements.
Q: Will the 03200BK04045 work with non-Zebra thermal printers?
A: The 03200BK04045 is optimized for Zebra printers, but many third-party thermal printers that accept standard 40mm ribbon cartridges may be compatible. Always verify your printer's ribbon specification and cartridge mechanism before ordering — incorrect ribbon width or cartridge type can cause jam or print quality issues.
Q: What is the expected yield per roll?
A: Yield depends on label size and printer settings. A 450-meter roll will produce roughly 1,000–3,000 labels depending on label width and whether the printer applies full-coverage graphics or sparse barcode-only printing. For high-volume operations, tracking actual usage per roll helps forecast consumable spend and reorder frequency.
Q: Can I store ribbon rolls long-term without degradation?
A: Yes. Keep rolls in cool, dry conditions away from direct sunlight and humidity. Wax/resin ribbons are stable for extended periods if stored properly. Avoid damp environments, which can cause coating separation or adhesion loss.
Q: What should I do if print quality degrades mid-roll?
A: Print quality decline typically signals ribbon contamination, misaligned print head, or worn print head elements — not ribbon age. Stop printing, inspect the print head for debris or scratches, clean if needed, and re-tension the ribbon. If quality does not recover, the print head may require professional cleaning or replacement. Do not assume the ribbon is defective without ruling out printer hardware.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In warehouse and logistics environments where label throughput drives operational cost, the Zebra 03200BK04045 represents a pragmatic consumable choice. The wax/resin chemistry strikes an effective balance between print permanence and material cost — a distinction that compounds significantly when you're processing thousands of labels per shift across multiple printer stations. I've seen operations reduce ribbon waste and improve first-pass barcode quality by staying disciplined about ribbon-to-printer matching.
Technical Highlights:
- 450-Meter Roll Capacity: Extended length minimizes ribbon cartridge changes during peak picking and shipping cycles — reduces production pauses and keeps label streams moving consistently
- Wax/Resin Chemistry: Delivers durable adhesion across standard coated label stocks without the cost premium of 100% resin — meaningful when ribbon spend scales across 5+ printers
- 40mm Standard Width: Compatible with industry-standard Zebra ZD, ZT, and GK series cartridge mechanisms — no custom fittings, no inventory SKU explosion
Deployment Considerations:
- Always verify your printer accepts 40mm ribbon cartridges before ordering — width mismatches cause jams and downtime, not gradual degradation
- Track actual label yield per roll under your specific print settings (label size, coverage, speed) — generic yield estimates (1,000–3,000 per roll) vary widely depending on application
- Inspect print head alignment and tension during initial deployment — misalignment degrades print quality faster than ribbon chemistry ever will, and operators often misattribute print head wear to ribbon age
For warehouse operations running consistent barcode label workflows on Zebra thermal printers, the 03200BK04045 delivers reliable output at predictable cost. If you're running variable-format graphics or long-dwell outdoor labels, move up to a 100% resin ribbon and budget accordingly — the chemistry matters in those scenarios.
