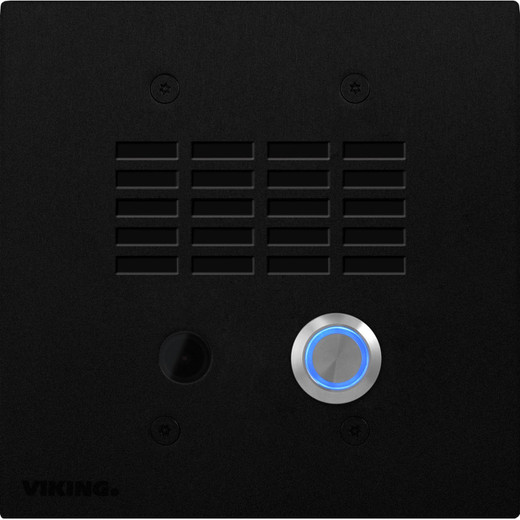

Viking X-35-BK with Enhanced Weather Protection (EWP) - X-35-BK-EWP

Viking Electronics X-35-BK-EWP IP Video Intercom with Enhanced Weather Protection

The Viking Electronics X-35-BK-EWP is a SIP-based IP video intercom engineered for demanding entry-control applications where standard intercoms fail — freezing loading docks, rain-soaked vestibules, coastal facilities, and anywhere humidity or temperature swings would compromise conventional units. Built into a 14-gauge 316 stainless steel faceplate with a #4 brushed finish, the X-35-BK-EWP delivers 1080p HD video, hands-free voice, and relay-controlled door strike or gate access over a standard PoE network connection.

Overview

Where most IP intercoms carry a standard IP65 or IP66 rating and call it weatherproofing, Viking's Enhanced Weather Protection (EWP) designation means the X-35-BK-EWP is rated to operate at up to 100% relative humidity — fully saturated air — while handling temperature extremes from -40°F to 140°F (-40°C to 60°C). That range covers arctic cold storage entryways, desert warehouse exteriors, and everything in between. This is not a rebranded consumer doorbell camera; it is a commercial-grade access intercom designed to integrate directly into a SIP VoIP infrastructure with zero additional gateways or adapters required.

Key Features

• 1080p HD Video with 126° Wide-Angle View: The 126-degree lens captures the full width of a standard doorway plus flanking area in a single frame — no blind spots at the door edges that force a visitor to center themselves for recognition. At 1080p, facial detail is clear enough to support access decisions without a secondary camera overhead.
• Enhanced Weather Protection — 100% Humidity, -40°F to 140°F: The EWP rating is the key differentiator of this SKU over the base X-35-BK. Rated to 100% relative humidity and the full -40°F to 140°F thermal range, this unit installs confidently at exterior gates, cold-storage entries, and coastal properties where condensation and temperature cycling destroy standard intercoms within a season or two.
• SIP 2.0 (RFC 3261) Native Integration: The X-35-BK-EWP registers directly as a SIP endpoint on any RFC 3261-compliant PBX or hosted VoIP platform. Calls route through your existing phone system to a desk phone, softphone, or mobile app — no proprietary call server needed. If your facility already runs a SIP PBX, this intercom drops in like any other extension.
• PoE Class 1 — Under 4 Watts: Drawing under 4W via IEEE 802.3af PoE, the X-35-BK-EWP places virtually no load on your switch's power budget. A single Cat5e/Cat6 run handles power, video, audio, and signaling — no conduit for a separate 12V or 24V power supply, no junction box for power injection.
• 2-Amp Relay Output: The onboard 2-amp relay handles most electric strikes and magnetic locks directly, eliminating the need for an external relay board in the majority of single-door installations. Wire the relay to your strike, configure the unlock duration in software, and the intercom handles access release from the SIP call.
• Gigabit Ethernet (1000BASE-T): The X-35-BK-EWP connects at up to 1000 Mbps — meaningfully useful if you are streaming HD video to a recording server or VMS platform alongside the live intercom call. A 100Mbps port would work for basic calls, but the Gigabit interface ensures the unit doesn't become a bottleneck if you integrate it with video management software.
• H.264 and MJPEG Video Codecs: H.264 compression keeps the video stream lean for continuous recording or remote monitoring. MJPEG is available for VMS platforms or recording workflows that require individual frame access without decoder dependencies. Both codecs run natively — no transcoding on the server side needed.
• G.711u, G.711a, and G.722 Audio Codecs: G.722 wideband audio (7 kHz) delivers noticeably clearer voice quality than G.711 narrowband — relevant at a noisy exterior entry where intelligibility matters. The unit supports all three codecs and negotiates automatically with the SIP endpoint, so wideband audio engages when the far end supports it.
• 14-Gauge 316 Stainless Steel Faceplate: 316 alloy (not 304) is specified here — the marine-grade stainless with molybdenum content that resists chloride pitting in coastal or pool-deck environments. The #4 brushed finish matches commercial architectural hardware standards and resists fingerprint visibility in high-traffic lobbies.
• Compact 5" x 5" x 2.25" Form Factor: At 5 inches square and 2.25 inches deep, the X-35-BK-EWP fits a standard single-gang surface-mount or flush-mount enclosure. The compact depth — 2.25 inches — is achievable in a standard 2-inch deep electrical box with a surface extension ring, which simplifies retrofit installations in existing masonry or metal stud walls.

Integration & Compatibility

The X-35-BK-EWP integrates with any SIP 2.0 (RFC 3261)-compliant PBX or hosted VoIP platform — 3CX, FreePBX, Asterisk, Cisco UCM, Microsoft Teams Direct Routing via SIP gateway, and similar systems. Video is delivered as an H.264 or MJPEG stream, compatible with most SIP video phones and software clients that support video calling. For sites that want to record the door camera feed independently of the SIP call, the H.264 stream can be pulled by a compatible network video recorder or VMS. Network provisioning follows standard IEEE 802.3af PoE — any 802.3af-capable PoE switch port supports the unit without special configuration. For broader context on Viking Electronics intercoms and entry systems, the full line spans analog, SIP, and cellular entry solutions. If you are designing a multi-door facility, review the IP intercom category for companion units and associated door controllers. Installation planning for PoE-powered entry devices is covered in our PoE infrastructure planning guide.

Frequently Asked Questions

Q: What does the EWP (Enhanced Weather Protection) rating on the X-35-BK-EWP actually mean compared to a standard IP rating?

A: EWP means the unit is rated to operate at up to 100% relative humidity — fully saturated air — while maintaining the full -40°F to 140°F operating temperature range. Standard IP-rated intercoms may handle rain splash (IP65) or direct water jets (IP66) but are not necessarily tested at 100% humidity across that full thermal range. EWP is the appropriate spec for cold storage entries, steam-adjacent environments, coastal installations, or anywhere condensation cycling is a regular condition.

Q: Does the X-35-BK-EWP require a proprietary call server or controller, or does it work with an existing SIP PBX?

A: No proprietary server is required. The X-35-BK-EWP registers natively as a SIP 2.0 endpoint (RFC 3261) on any compatible SIP PBX or hosted VoIP platform. It operates as a standard SIP extension — calls can route to desk phones, softphones, or mobile apps depending on your dial plan.

Q: What type of PoE does the X-35-BK-EWP require, and will it work on a standard 802.3af switch?

A: The unit is PoE Class 1 and draws under 4 watts, which falls well within the 802.3af standard's 15.4W available budget. Any 802.3af-compliant switch port will power it — no 802.3at (PoE+) or higher is needed. A single Cat5e or Cat6 cable handles power, audio, video, and data.

Q: Can the onboard relay directly control an electric door strike or magnetic lock?

A: Yes. The X-35-BK-EWP includes a 2-amp relay output that handles most electric strikes and magnetic locks directly without requiring an external relay board. Configure the unlock duration via the unit's software and the relay triggers from the SIP call interface.

Q: What is the video resolution and viewing angle of the X-35-BK-EWP camera?

A: The camera delivers up to 1080p HD video with a 126-degree wide-angle viewing field, which covers the full width of a standard doorway plus flanking area in a single frame. Video streams are available in H.264 and MJPEG formats.

Q: What is the faceplate material, and is it suitable for coastal or corrosive environments?

A: The faceplate is 14-gauge 316 stainless steel with a #4 brushed finish. 316 alloy includes molybdenum, which provides chloride pitting resistance that 304 stainless does not — making it an appropriate choice for coastal, pool-deck, or chemically active environments where standard stainless would corrode.

Ted Perry

The spec that defines the X-35-BK-EWP's deployment profile is the 100% relative humidity rating paired with that -40°F to 140°F thermal range — together they put this unit in a different class from the intercoms I typically see quoted for exterior applications. Most projects I review use standard IP66-rated intercoms on cold-storage entries or coastal gates and then deal with condensation failures within 18 months. The EWP designation on the X-35-BK-EWP directly addresses that failure mode.

Technical Highlights:

• PoE Class 1 (<4W): Drawing under 4 watts on 802.3af, this unit consumes less switch power budget than a basic IP camera. On a 24-port 802.3af switch with 185W total budget, you could theoretically power 46 of these — practically, this means it will never be the device that pushes a port into power-sharing mode on a loaded switch.
• 316 Stainless Steel, 14-Gauge: The alloy choice matters. 316 with molybdenum handles chloride environments — sea spray, pool chemicals, deicers — where 304 stainless develops pitting within a year or two. The 14-gauge thickness adds impact resistance that thin stamped panels can't match at a typical entry point.
• SIP 2.0 RFC 3261 + G.722 Wideband Audio: G.722 runs at 7 kHz bandwidth versus G.711's 3.4 kHz — the audible difference at a noisy exterior entry (vehicle traffic, HVAC exhaust) is meaningful. The unit negotiates codec automatically, so wideband engages whenever the far-end SIP endpoint supports it, with no manual configuration required.

Deployment Considerations:

• The 2.25-inch depth fits a standard 2-inch electrical box with a surface extension ring — plan the rough-in depth carefully on masonry or insulated wall assemblies where you have less flexibility. A surface-mount enclosure is the safer choice on retrofit projects where wall depth is uncertain.
• The evidence shows a resolution reference of 352x288 in the source snippet alongside the 1080p claim — confirm with the Viking datasheet which stream profiles are available at full 1080p versus sub-stream resolutions before finalizing recording server storage estimates.

The X-35-BK-EWP is the right specification for exterior entry points on food processing facilities, cold-chain warehouses, coastal commercial properties, or any site where humidity and temperature cycling have historically caused intercom failures — this is not a marginal upgrade over a standard unit, it is a different environmental specification category entirely.
