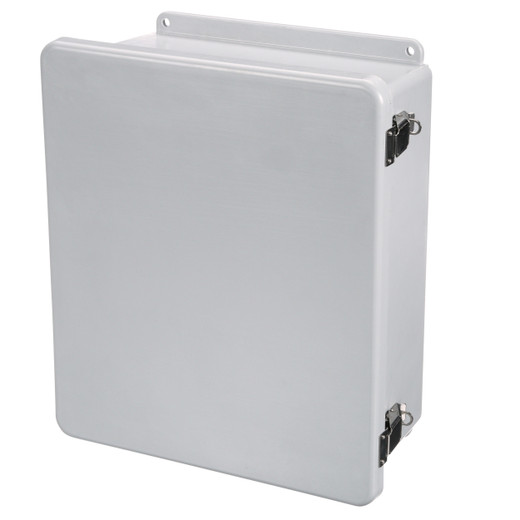

Panduit PZNWE12 NEMA 4X Wireless Enclosure

Panduit PZNWE12 Wireless Access Point Enclosure

Deploying wireless infrastructure in industrial environments requires more than standard IT-grade enclosures. The Panduit PZNWE12 provides NEMA 4X and IP66-rated protection for wireless access points and associated PoE equipment in harsh environments where moisture, dust, chemicals, and temperature extremes would compromise standard installations. Part of Panduit's IndustrialNet™ series, this 12\" × 12\" fiberglass enclosure delivers RF-transparent protection without the signal attenuation issues inherent to metal boxes—critical for maintaining wireless coverage in manufacturing plants, outdoor logistics yards, chemical processing facilities, and marine installations.

Key Features

• NEMA 4X and IP66 rated for harsh environment protection against water, dust, corrosion, and chemical exposure
• Fiber-reinforced polyester (FRP) non-metallic construction—RF transparent, won't attenuate WiFi signals like metal enclosures
• 12\" × 12\" (305mm × 305mm) interior accommodates enterprise-grade access points plus PoE injectors or switches
• UL508A listed for industrial control panel applications
• Gray UV-resistant finish withstands prolonged outdoor exposure without degradation
• Chemical-resistant fiberglass construction suitable for food processing, chemical plants, and corrosive atmospheres
• Continuous hinge and quarter-turn latch system with gasketed sealing
• Pre-drilled mounting holes for wall or pole mount installations
• RoHS compliant, IndustrialNet™ series integration with Panduit structured cabling ecosystem

The PZNWE12's fiberglass-reinforced polyester construction addresses a fundamental problem with industrial wireless deployments: metal enclosures block or significantly attenuate RF signals, forcing installers to mount antennas externally (adding cost, complexity, and additional ingress points) or accept degraded coverage. FRP is RF-transparent across 2.4 GHz and 5 GHz WiFi bands, allowing internal antenna mounting while maintaining full NEMA 4X environmental protection. The material is molded rather than fabricated, eliminating the welded seams and riveted joints that can compromise long-term weather resistance in harsh service. Panduit's continuous piano hinge runs the full height of the door, distributing stress and maintaining gasket compression even after thousands of open/close cycles. The quarter-turn latches provide tool-free access for maintenance while ensuring positive closure—critical for maintaining the IP66 ingress protection rating that guarantees complete dust-tight sealing and protection against heavy seas or powerful water jets (tested to 100 liters/minute at 100 kPa for 3 minutes from any direction).

Industrial WiFi deployments present challenges rarely encountered in office environments. Warehouses require coverage across 40-foot clear heights with narrow aisles creating RF shadow zones. Food processing plants demand chemical resistance to withstand daily washdown with caustic cleaners and sanitizers. Outdoor logistics yards need UV resistance for years of sun exposure plus resistance to rain, snow, and temperature swings from -40°F to 140°F. Mining and oil & gas sites introduce explosive atmosphere considerations, corrosive gases, and vibration. The PZNWE12 addresses the environmental half of this equation—pair it with industrial-grade access points rated for extended temperature ranges and you have a complete harsh-environment wireless solution. The 12\" × 12\" interior provides space for ceiling-mount or wall-mount access points from Cisco (Catalyst IW6300, AP4800), Aruba (AP-518/535), Ruckus (T350 series), Cambium (XV2-2/XV3-8), or Ubiquiti (UniFi 6 Enterprise), with room alongside for a PoE injector or small PoE switch when midspan power injection is required. Wall mounting is straightforward via the four corner mounting holes on the integral back panel; pole mounting requires an optional adapter bracket (Panduit PZACCKIT or third-party NEMA-compatible pole mount kits).

Cable entry is via knockout points on the bottom, sides, or back of the enclosure—installers select entry location based on conduit routing and then install appropriate cable glands or liquid-tight fittings to maintain the NEMA 4X rating. For PoE-powered deployments running a single Cat6A cable from a remote switch, a single bottom entry with a PG16 or 3/4\" NPT cable gland is typical. For deployments with local PoE injection, you'll route both the data cable (from the network) and AC power (to a plug-in PoE injector inside the box), requiring two entry points. Grounding deserves attention: while the FRP enclosure is non-conductive and doesn't require bonding to building ground, the access point and any metal PoE equipment inside the box do require grounding per NEC Article 810. Run a ground wire in with your power or data cable and bond it to the access point's ground terminal and any metal equipment chassis. Some installers mount a small ground bar inside the enclosure to provide a common grounding point for all internal equipment.

UL508A listing qualifies the PZNWE12 for use in industrial control panels—relevant for installations where the wireless network is part of a manufacturing execution system (MES) or industrial IoT deployment subject to UL508A requirements. RoHS compliance addresses the European and California restrictions on hazardous substances, required for OEM equipment builders shipping machinery internationally. The IndustrialNet™ designation indicates compatibility with Panduit's broader industrial Ethernet portfolio (Mini-Com fiber and copper jacks, harsh-environment cable, industrial switches, DIN-rail PoE injectors), supporting a single-vendor approach for industrial network infrastructure. The gray finish is standard—specify RAL color matching if you need to match existing equipment colors at a site with strict visual standards. For applications where NEMA 4X isn't sufficient (explosive atmospheres requiring Class I Division 2 or ATEX certification, for example), this enclosure alone is not rated—you would need to specify a purge/pressurization system or step up to a purpose-built explosion-proof enclosure, neither of which is practical for wireless given the antenna requirements. For most industrial wireless deployments—chemical plants (non-explosive areas), food processing, outdoor logistics, wastewater treatment, marine, mining (surface operations), and general manufacturing—the PZNWE12's combination of NEMA 4X environmental protection and RF-transparent construction solves the core requirement: keep the access point alive and keep the signal strong.
