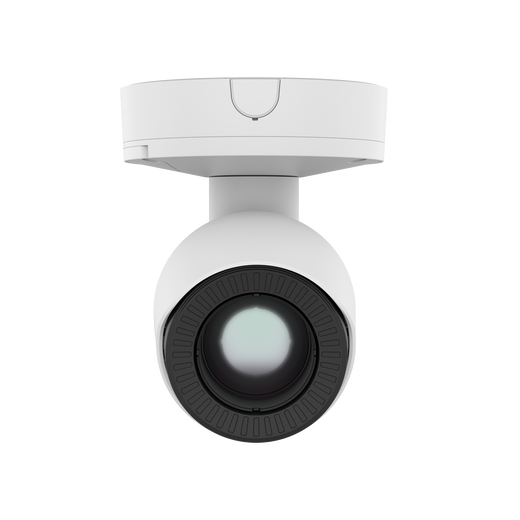

Hanwha TNO-C3082T Thermal Compact Bullet Camera
The Hanwha TNO-C3082T is a Wisenet T network thermal compact bullet camera engineered for long-range thermal detection and classification in complete darkness, adverse weather, and low-contrast conditions. This uncooled thermal camera delivers 384 x 288 native QVGA resolution with support for upscaled 768 x 576 output at 8 fps. Paired with a 60mm fixed focal lens providing a 6.2° horizontal field of view, the TNO-C3082T excels at distant target acquisition for perimeter security and rooftop surveillance without requiring pan/tilt mechanics.
Key Features
- Uncooled Thermal Sensor: Captures thermal signatures with superior sensitivity to detect persons and vehicles regardless of lighting or weather conditions
- Long-Range Optics: 60mm fixed focal lens with extended detection range ideal for perimeter fencing, rooftop, and distant target identification
- AI-Powered Analytics: WiseStream III engine delivers Person/Vehicle detection, virtual line crossing with direction tracking, and virtual area loitering/intrusion/enter/exit events for proactive threat response
- Comprehensive Event Suite: Motion detection, tampering detection, audio detection, sound classification, shock detection, and virtual area appear/disappear events
- Triple Codec Support: H.265, H.264, and MJPEG compression with WiseStream II optimization for efficient bandwidth and storage management
- Rugged Outdoor Design: IP66 weather resistance and IK10 impact resistance for harsh environments
- Power Efficient: PoE 802.3af powered for simplified integration into standard network infrastructure
Technical Specifications
- Resolution: 384 x 288 (QVGA thermal), upscaled to 768 x 576 @ 8 fps
- Lens: 60mm fixed focal length with 6.2° horizontal field of view
- Video Compression: H.265, H.264, MJPEG
- IP Rating: IP66 (dust and water resistant)
- Impact Rating: IK10 (vandal-resistant)
- Power: PoE 802.3af compliant
- Form Factor: Compact bullet design
Applications
Ideal for perimeter protection, fence line monitoring, rooftop surveillance, critical infrastructure protection, and any outdoor or indoor environment where thermal detection without visible light illumination is essential. The combination of fixed long-range optics, robust weather sealing, and AI-driven analytics makes the TNO-C3082T suitable for airports, ports, utilities, and enterprise campuses requiring 24/7 thermal awareness.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TNO-C3082T represents a specialized tool in thermal surveillance. Its uncooled sensor technology eliminates the need for active cooling, reducing operational costs and complexity while maintaining consistent performance across temperature extremes. The 60mm lens and 6.2° field of view position this camera as a long-range detection tool rather than wide-area coverage; deployments should account for this narrower perspective in site planning.
WiseStream III analytics significantly reduce false alarms compared to legacy thermal cameras, while H.265 codec support ensures efficient storage for continuous 24/7 recording. The PoE 802.3af power budget is generous for thermal sensors, enabling straightforward integration into standard PoE switch infrastructure without specialized power injectors. IP66/IK10 ratings confirm suitability for exposed outdoor mounting, though thermal lens fogging in high-humidity transitional climates may require periodic maintenance.
Available in White.
