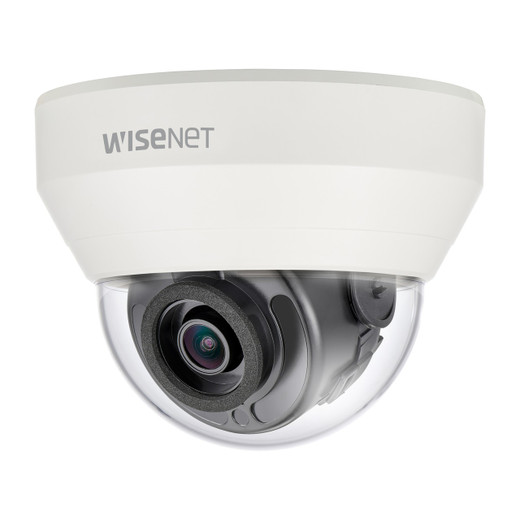

Hanwha HCD-6010 Overview
The Hanwha HCD-6010 is a 2MP Wisenet HD+ analog dome camera designed for indoor surveillance installations requiring Full HD (1,920 x 1,080) resolution and reliable day/night performance. This fixed-lens dome provides flexible video transmission across multiple analog protocols (AHD, TVI, CVI, CVBS) on a single camera platform, simplifying system integration for installers and reducing SKU management for integrators. The compact 4.33" x 3.39" form factor and plug-and-play 12VDC power design make it ideal for standard indoor deployments in retail, office, and facility environments.
Hanwha HCD-6010 Key Features
- Full HD 1080p Resolution — Captures 1,920 x 1,080 video at 30 fps (NTSC/PAL), delivering crisp facial and object recognition detail across typical indoor surveillance distances.
- Multi-Protocol Video Output — Single camera compatible with AHD, TVI, CVI, and CVBS (composite) coaxial transmission standards, eliminating the need for protocol-specific camera variants and streamlining mixed-technology deployments.
- 2.8mm Fixed Wide-Angle Lens — Factory-installed 2.8mm focal length provides wide horizontal field of view coverage suitable for corridor, lobby, and open-space monitoring without refocusing or adjustment in the field.
- Day/Night Capability with ICR — Integrated IR Cut filter (ICR) automatically switches between color mode during daylight and black-and-white mode in low-light conditions, enabling 24/7 surveillance. Achieves 0.27 Lux in color mode (F2.0) and ultra-low 0.017 Lux sensitivity in black-and-white mode for effective performance in dimly lit indoor spaces.
- Wide Dynamic Range (WDR) 120dB — Compensates for high-contrast indoor lighting conditions (windows, overhead fixtures, mixed ambient light), maintaining detail in both bright and shadow areas simultaneously without require manual exposure adjustment.
- Motion Detection & Privacy Masking — Built-in motion detection triggers alerts and recordings; supports up to 8 rectangular privacy mask zones to obscure sensitive areas and ensure compliance with privacy policies.
- Advanced Image Processing — SSNR (Spatial-Temporal Noise Reduction) IV reduces noise in low-light conditions while maintaining edge clarity; electronic shutter speed ranges from 1 to 1/12,000 second for exposure control; gain control supports Low, Middle, High, and Very High settings to adapt to varying illumination.
- White Balance Flexibility — Multiple white balance modes (ATW, AWC, Manual, Indoor, Outdoor presets) ensure accurate color reproduction across different lighting temperatures and indoor environments.
- Extended Transmission Distance — Supports up to 500 meters (1,640 feet) coaxial transmission distance, accommodating large indoor facilities and multi-zone deployments on standard surveillance cabling.
- Low-Power 12VDC Operation — Draws maximum 3.6W at 12VDC, reducing power supply requirements and enabling cost-effective installation in facilities with existing 12V DC systems. Plug-and-play design simplifies wiring and installation.
- Compact Polycarbonate Dome Housing — Ivory-colored PC dome (4.33" x 3.39", 221g / 0.49 lb) blends into standard indoor ceiling environments; lightweight design minimizes ceiling load and simplifies mounting.
- Video Rotation & Flip Modes — Software-controllable video flip and mirror functions allow installers to orient the image without remounting the camera, adapting to corner placements and angled installations.
Hanwha HCD-6010 Integration & Compatibility
The HCD-6010 supports ACP, TCP, and CCP coaxial protocols in addition to standard CVBS composite video output, providing compatibility with existing analog DVR systems, hybrid recorders, and analog transmission infrastructure. The camera integrates with a comprehensive range of Hanwha mounting accessories including pendant mounts (SBP-300CM), wall mounts (SBP-120WM), corner bases (SBP-300KM1), hanging mounts (SBP-300HM7), parapet mounts (SBP-300LM), and installation boxes (SBP-300NB), accommodating varied ceiling types and structural configurations. Tinted bubble covers (SPB-IND12) and protective domes (SPG-IND12B) are available for enhanced vandal resistance and aesthetic integration. Operating temperature range of -10°C to +55°C (14°F to 131°F) with 0–90% RH (non-condensing) humidity tolerance supports standard indoor climate-controlled environments.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I spec the HCD-6010 for straightforward indoor installs where you need solid 1080p clarity without the infrastructure overhead of IP. The multi-protocol output is genuinely useful—you can drop this dome into AHD, TVI, CVI, or legacy CVBS environments without stocking separate SKUs, which matters when you're managing inventory across service calls. The 2.8mm lens gives you roughly 100° horizontal coverage, so it works well in lobbies, hallways, and small retail spaces where you want wide situational awareness rather than zoomed detail at distance.
One thing to confirm upfront: verify your DVR's protocol compatibility and firmware revision before deployment. While the camera supports all four coax standards, you'll need to physically switch the camera to match your recorder—it's a DIP switch setting, not auto-sensing. Also, this is a fixed-lens unit, so if your coverage area requires optical zoom or telephoto reach beyond about 20 feet for facial ID, you'll want a varifocal model instead. For standard indoor monitoring with existing coax infrastructure, it's a reliable workhorse.
