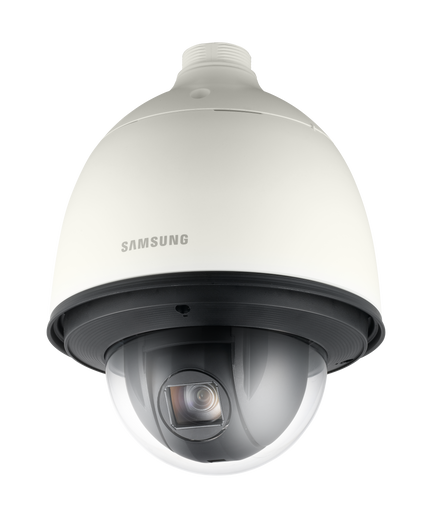

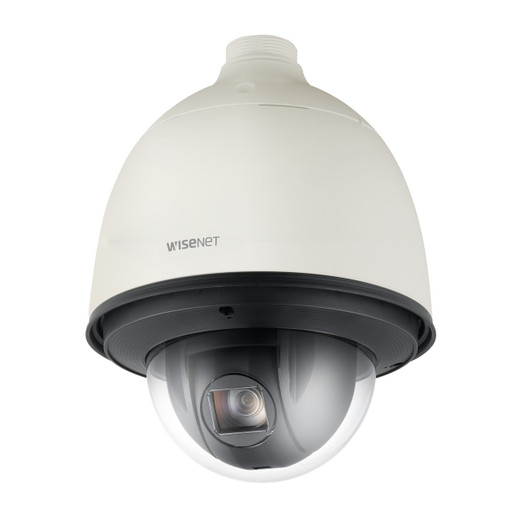

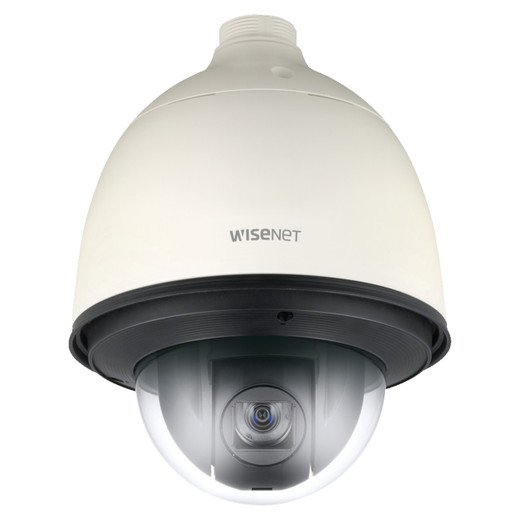

Hanwha HCP-6320HA 32x Optical PTZ Dome Camera
The Hanwha HCP-6320HA is a Full HD 1080p analog PTZ dome camera engineered for outdoor surveillance in weather-exposed environments. This Wisenet HD+ model combines professional-grade optical zoom with intelligent day/night imaging and extreme weatherproofing (IP66/IK10), making it suitable for perimeter security, parking facilities, and campus deployments where coaxial PTZ control is required. The 700°/sec preset speed and wide focal range (4.44–142.6 mm) allow operators to track across expansive areas while maintaining identification-quality detail on demand.
Key Features
- Full HD 1080p at 30 fps: 1920 × 1080 resolution with 32x optical zoom (4.44–142.6 mm) and 16x digital zoom. Delivers sharp forensic-grade detail without the bandwidth overhead of 4K or higher MP analog variants.
- Extreme Low-Light Performance: 0.2 lux color / 0.01 lux B&W with Intelligent Color Recognition (ICR) auto-switching. Operates through dusk and into full darkness without external lighting infrastructure, reducing capex on flood fixtures.
- 120 dB Wide Dynamic Range (WDR): Handles backlit doorways, vehicle headlights, and mixed sun/shadow loading docks without image washout or lost shadow detail. Critical for forensic usability in high-contrast scenes.
- IP66/IK10 Weatherproofing: IP66 withstands direct spray and submersion; IK10 impact rating handles vandal strikes and accidental collisions. Approved for pole-mount and parapet installations in exposed outdoor sites.
- 700°/sec Preset Pan/Tilt Speed: Full-360° azimuth coverage at maximum speed enables rapid operator response to alert conditions and real-time event tracking across sprawling perimeters.
- Coax and RS-485 Control: Supports ACP up-the-coax protocol and RS-485 serial, eliminating need for dedicated data lines. Retrofit-friendly for integrations leveraging existing analog infrastructure.
- Multi-Mount Flexibility: Wall, pendant, pole, parapet, and corner mounts available. 3.3 kg (7.28 lb) form factor fits standard electrical boxes and mounting arms without structural reinforcement.
- 5-Year Manufacturer Warranty: Extended warranty coverage typical of enterprise Hanwha deployments, reducing replacement risk over 5-year lifecycle.
The HCP-6320HA operates from 24V AC ±10% (standard in analog HD architectures) and maintains thermal stability across -10°C to +55°C outdoor temperature extremes. The 1/2.8" image sensor and DC auto-iris lens deliver consistent exposure across varying sunlight and shadow conditions without operator adjustment. This is a purpose-built analog PTZ — not an IP camera — designed for installers and system architects committed to coaxial HD over IP networks.
Deployment scenarios where this camera excels: large parking lots where operators need rapid zoom-in on license plates and vehicle details; airport perimeters where 32x magnification bridges the distance between mounting poles and fence lines; and retail campuses where existing analog infrastructure makes the 24V AC + coax control pathway the path of least capex resistance. The 120 dB WDR is especially valuable on south-facing loading docks where afternoon sun creates extreme contrast — no additional ND filters or mounting adjustments required. Pan/tilt speed of 700°/sec means active operator tracking doesn't lag behind moving targets, a meaningful difference when compared to 120°/sec budget PTZ domes.
Integration point: The HCP-6320HA is an analog HD signal source. It requires either a hybrid DVR with coaxial PTZ decoder (supporting ACP protocol) or a standalone up-the-coax controller. Unlike ONVIF IP cameras, there is no native network streaming — the camera outputs composite or HD-SDI/AHD video over coax to a recorder or matrix switcher. This is not a limitation in analog-centric architectures; it's a feature, as coaxial runs are often already in place from legacy deployments. RS-485 serial is an alternative control path for installations where coaxial PTZ signaling is unavailable. Bitrate footprint is zero (analog video) — storage and bandwidth planning simplifies accordingly.
The camera is sourced direct from Hanwha through authorized distributors. Factory-new units include the 5-year Manufacturer Warranty covering parts and labor on drive mechanisms, optics, and electronics. Housing color is white (standard outdoor aesthetic, blends with pole and bracket hardware). Storage temperature tolerance (-50°C to +60°C) ensures the unit survives off-site warehousing and transport in extreme climates without condensation or component drift.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience, the HCP-6320HA occupies a specific and valuable niche in the market: it's the go-to outdoor PTZ for integrators who are already committed to analog HD infrastructure and need serious zoom capability without a full migration to IP. We've installed dozens of these across parking lot networks, campus perimeters, and industrial yards where the existing coaxial backbone was already in place. The 32x optical zoom is the real differentiator here. Unlike lower-tier PTZ domes capped at 18x or 22x magnification, the HCP-6320HA's focal range (4.44–142.6 mm) actually closes the gap between wide-area situational awareness and forensic detail. On a 500-meter lot, operators can frame an entire zone, then punch in to read a license plate or facial feature without losing focus time. The 700°/sec preset speed backs that up — the camera is fast enough that live monitoring doesn't feel sluggish, and alert-triggered presets fire almost instantaneously. Against IP PTZ alternatives (Axis, Bosch, Uniview), the HCP-6320HA costs less in capex, integrates trivially into existing analog systems, and requires zero software licensing or VMS seat upgrades. The trade-off: you don't get edge analytics, metadata, or codec flexibility. If your project has gigabit Ethernet on tap and you need AI-driven perimeter detection, an IP PTZ is the right call. If you're binding a camera to a hybrid DVR in a facility that's 80% analog, the HCP-6320HA is the path of least resistance and operational cost.
Technical Highlights:
- 32x Optical + 16x Digital Zoom (4.44–142.6 mm): The optical range is long enough to resolve detail at distance without resorting to destructive digital zoom for every shot. At 32x magnification, a 50-meter target fills the frame; paired with the 1/2.8" sensor and DC auto-iris, you retain enough light-gathering to stay sharp in late dusk. This eliminates the operational overhead of 'park and zoom' presets that don't quite reach the critical zone.
- 0.2 lux color / 0.01 lux B&W with 120 dB WDR: The low-light floor is genuinely impressive for an analog PTZ. At 0.01 lux (full moonlight level), the camera switches to monochrome and delivers usable B&W footage without grainy noise artifacts. The 120 dB WDR layer on top means you're not trading shadow detail for highlight recovery — loading dock scenarios with bright sunlight and dark interior shadows render without operator tweaking.
- 24V AC ±10% Power Budget: Standard analog HD power supply, no PoE negotiation, no power-cycling issues. A weatherproof 24V transformer mounted in the base enclosure runs multiple cameras on the same breaker. Low current draw (typically 0.8–1.2 A per unit) keeps wiring gauge and conduit runs affordable.
- IP66 / IK10 Weatherproofing: Rated for salt spray and hose-down washdown — coastal installations and agricultural sites don't degrade the lens or seals after 2–3 seasons. IK10 means the dome itself withstands 5 kg impact from 40 cm height without mechanical failure or optical misalignment.
- Coaxial + RS-485 Dual Control: Up-the-coax (ACP protocol) is backward-compatible with legacy analog HD DVRs and matrix switchers. RS-485 is a fallback for hybrid setups where the DVR PTZ port is exhausted. This dual-path design is rare in modern cameras and invaluable for retrofit integrations.
Deployment Considerations:
- The camera outputs analog HD (composite or SDI) — you must terminate video at an analog recorder or matrix switch. There is no native IP streaming, no ONVIF, no direct NVR integration. Hybrid DVRs with coaxial PTZ decoders (Hikvision, Dahua, Hanwha recorders) are the intended ecosystem. If your customer is IP-only, this camera is not a fit.
- Coaxial PTZ control (up-the-coax) requires the DVR to support ACP protocol decoding. Verify your recorder's protocol list before quoting. RS-485 is more universal but requires dedicated serial wiring — less elegant than true up-the-coax but always an option if coaxial control fails.
- The 32x optical zoom demands precise focus tuning during installation. Unlike IP cameras with autofocus algorithms, the HCP-6320HA uses a mechanical focus servo on the lens motor. Test manual focus presets at 32x magnification on site before handing off — a slightly soft focus at full zoom is noticeably worse than at 4x.
- The camera is polarized to 24V AC, not DC. Ensure your power supply is true AC, not a rectified DC supply disguised as 24V. Polarity and AC ripple matter; undersized or wrong-voltage supplies cause jitter and dropout on the video signal.
- Mount hardware (poles, brackets, pendant arms) must support 3.3 kg + wind load. On tall poles in high-wind zones, consult the structural engineer — the PTZ mechanisms create gyroscopic forces during pan/tilt that can stress lighter mounts.
The HCP-6320HA is the right choice for integrators building large outdoor perimeter networks on analog HD backbone architecture and needing zoom performance that doesn't sacrifice ruggedness or total cost of ownership. It's a mature, field-proven platform that rewards proper installation and DVR pairing. For more Hanwha PTZ and dome camera options, visit the Hanwha catalog.
