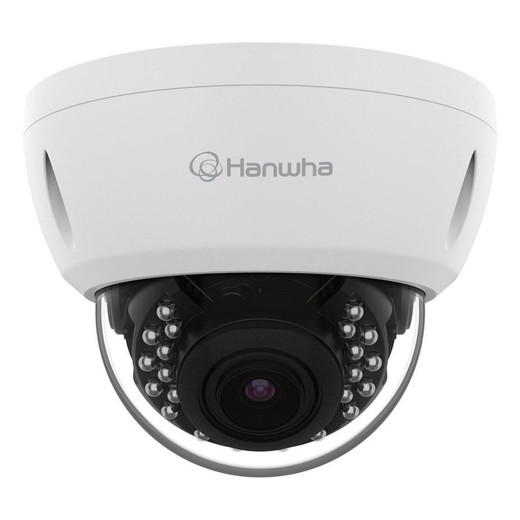

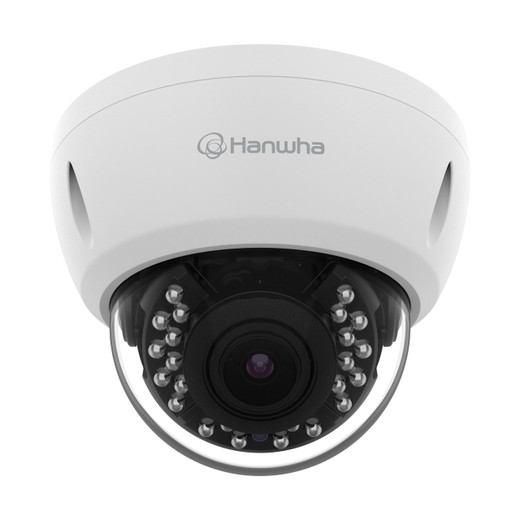

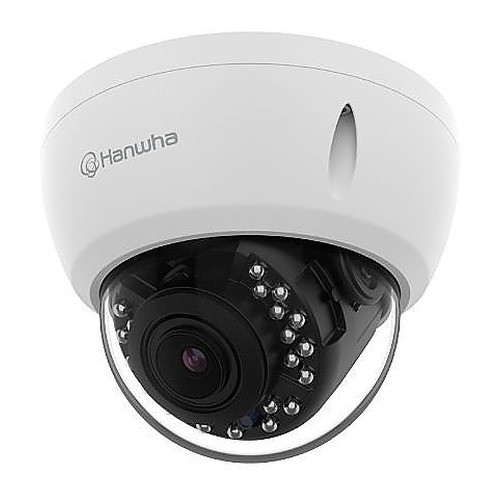

Hanwha ACV-8081R 5MP IR Vandal Dome Camera
The Hanwha ACV-8081R is a 5MP analog HD vandal-resistant dome camera built for outdoor surveillance in weather-exposed and high-vandalism environments. Built on the Wisenet A Series platform, the ACV-8081R (often searched as ACV 8081R) delivers native 5MP resolution at 30 fps with motorized varifocal zoom, making it the practical choice for security integrators deploying mixed analog-to-digital surveillance infrastructures or upgrading legacy coax-based systems without wholesale infrastructure replacement.
Unlike pure IP solutions, the ACV-8081R supports multiple analog transmission formats — AHD, TVI, CVI, and CVBS — allowing you to leverage existing DVRs, coax cabling, and control systems. This multi-format flexibility eliminates costly migration timelines and lets you prioritize high-risk zones first, then expand systematically across a site. The camera pairs well with network video recorders equipped with analog inputs, or can be integrated into hybrid architectures where analog and IP tiers operate independently on the same infrastructure.
Key Features
- 5MP native resolution at 30 fps (2592 × 1944): Captures forensically useful detail without frame rate loss, supporting clear facial and vehicle plate identification across wide coverage areas. At this resolution, a single dome can often replace two or three lower-resolution fixed cameras, reducing installation labor and hardware count.
- 1/2.8" CMOS sensor with F1.6 maximum aperture: Exceptional light sensitivity delivers genuine low-light performance at 0.06 lux in color mode and 0 lux with IR enabled — avoids the image noise and color washout typical of smaller-aperture designs when ambient light drops. The larger sensor and fast aperture mean better facial detail capture in dawn, dusk, and poorly lit loading docks.
- 3x motorized varifocal lens (3.5–10.5 mm): Field of view ranges from 82° horizontal (wide perimeter coverage) to 27° (telephoto identification). Motorized adjustment via coax or DVR control eliminates the need to manually refocus or deploy multiple fixed-lens cameras to cover one scene. The 3x zoom range covers most outdoor deployment scenarios without adding optical complexity.
- 20 m infrared illumination (up to 25 m effective range): Built-in IR LED array extends night vision capability to 25 meters, enabling reliable 24/7 surveillance without external IR banks or constant operator intervention. At 20m illumination, the camera delivers usable monochrome detail in complete darkness across typical parking lots and perimeter zones.
- IP66 / IK10 environmental ratings: IP66 means direct rain, dust jets, and environmental contamination won't degrade optics or electronics — this rating covers typical outdoor weather but does not permit submersion (that requires IP67 or higher). IK10 vandal impact rating withstands aggressive striking, attempted prying, and tamper attempts without lens or housing damage — essential for parking facilities, retail perimeters, and unmonitored outdoor zones where vandalism risk is elevated.
- Wide Dynamic Range (WDR) support: Balances bright and dark areas in high-contrast scenes (e.g., backlighting from windows or vehicle headlights), preventing loss of detail in shadows or overexposure in highlights. This matters most in perimeter zones where sunlight and shadow overlap, or at retail loading docks with mixed outdoor and interior lighting.
Integration & Compatibility
The ACV-8081R integrates seamlessly into existing analog surveillance architectures via standard BNC coax connectors. Multi-format transmission (AHD, TVI, CVI, CVBS) compatibility means you can mix the ACV-8081R with cameras from different manufacturers on the same DVR without transcoding or format conversion — a practical advantage when upgrading piecemeal or standardizing across multi-site deployments.
For organizations operating IP cameras elsewhere in the network, the analog architecture allows you to maintain segregated surveillance tiers — legacy analog for perimeter and outdoor high-vandalism zones and IP for critical indoor assets — without forcing a network overhaul. Power is supplied via 12VDC from an external supply, keeping installation modular and separating low-voltage power infrastructure from network systems.
Deployment Scenarios
The ACV-8081R is well-suited for outdoor perimeter monitoring (parking lots, fence lines, loading docks), retail environments with high theft or vandalism pressure, critical infrastructure (utilities, transportation hubs), and any site where weathering, physical abuse, and coax-based infrastructure constraints are the primary design drivers. The combination of vandal durability, weather resistance, and high-sensitivity imaging makes it a reliable choice for unattended outdoor zones where repair or replacement is costly.
When to Choose a Different Model
If your deployment requires pure IP architecture with PoE power delivery and cloud integration, consider a higher-resolution IP camera variant in the Hanwha catalog instead. If you need faster frame rates (60 fps or higher) or submersion-rated (IP67) environmental protection, explore Hanwha's alternative outdoor dome offerings. The ACV-8081R is optimized for analog-first environments where coax infrastructure, multi-format flexibility, and vandal durability outweigh the benefits of pure IP systems.
Frequently Asked Questions
Q: Can the ACV-8081R be used in indoor environments?
A: The camera is rated IP66, which means it handles outdoor weather — rain, dust, and moisture. While it will technically operate indoors, the vandal dome form factor and robust build are optimized for outdoor exposure. For indoor applications, consider a compact indoor dome or turret camera from the Hanwha catalog.
Q: What DVR formats does the ACV-8081R support?
A: The camera supports AHD, TVI, CVI, and CVBS transmission formats. This multi-format flexibility means it can integrate with DVRs from multiple manufacturers — verify your specific DVR model supports at least one of these formats before purchase.
Q: What is the maximum cable run distance for coax?
A: Analog HD cameras like the ACV-8081R typically support coax runs up to 500 meters (1,640 feet) depending on cable grade and video format used. Check your specific DVR specifications and test longer runs in your environment before final deployment.
Q: Does the ACV-8081R require a separate power supply?
A: Yes, the camera operates on 12VDC from an external power supply. This is not PoE, so you will need a dedicated 12V power source run to the camera separately from the coax video line.
Q: Can I control the zoom and focus remotely?
A: Yes, the motorized varifocal lens can be controlled via the DVR using coax control signals. This eliminates the need for manual refocusing after installation.
Q: Is the ACV-8081R suitable for high-traffic retail parking lots?
A: Yes. The IK10 vandal rating, IP66 weather sealing, 5MP resolution, and 20m IR range make it well-suited for retail parking lots where vandalism risk is elevated and 24/7 monitoring is required.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I recommend the ACV-8081R for integrators working in analog-heavy environments where coax infrastructure is locked in and vandalism risk is real. The 5MP resolution at native 30 fps holds up in forensic reviews, and the 3x motorized varifocal lens eliminates the need to pre-guess focal length — you adjust on site via the DVR. The multi-format support (AHD, TVI, CVI, CVBS) is a practical differentiator; most competitors lock you into one format, but this camera works across DVR ecosystems from different vendors.
Technical Highlights:
- 1/2.8" F1.6 sensor at 5MP: The large sensor and fast aperture deliver 0.06 lux color and 0 lux IR performance — a real advantage over smaller sensors that wash out detail in low light. On a parking lot with mixed sodium vapor and daylight, this sensor holds facial detail where smaller sensors blur it.
- Motorized 3x varifocal (3.5–10.5 mm): The zoom range covers 82° wide (full lot coverage) to 27° narrow (plate reads), and you adjust it remotely after install. No need to send a technician back to swap lenses if your coverage estimate was off by 5 degrees.
- IK10 vandal rating: This matters more than specs suggest. I've seen IK08 domes at retail sites get pried or smashed within months; IK10 is substantially tougher and actually deters casual vandalism attempts. Combined with IP66, it survives weather and abuse without nursing home-level maintenance.
Deployment Considerations:
- This is analog-only, so it won't integrate into pure IP architectures without a media converter. If you're building a hybrid site with IP indoors and analog outdoors, confirm your DVR has both analog and IP input ports before purchase.
- 12VDC power is separate from coax, so plan for a dedicated 12V PSU run to the dome location. This adds labor on longer runs, but keeps power infrastructure isolated from video, which is a real benefit in noisy electrical environments (parking garages, industrial sites).
- At 20m IR range, you're covered on standard parking lots, but if you're monitoring a 50m² perimeter fence line, expect to plan for overlapping coverage. Test IR throw in your actual site lighting conditions before final installation.
Position the ACV-8081R for outdoor perimeter and high-vandalism retail zones where analog infrastructure is already dominant and coax runs are already in place. The vandal durability and multi-format flexibility pay off in rough environments where you can't expect technicians to visit monthly. Skip it if you're building a greenfield IP network or need submersion-rated housings (IP67).
