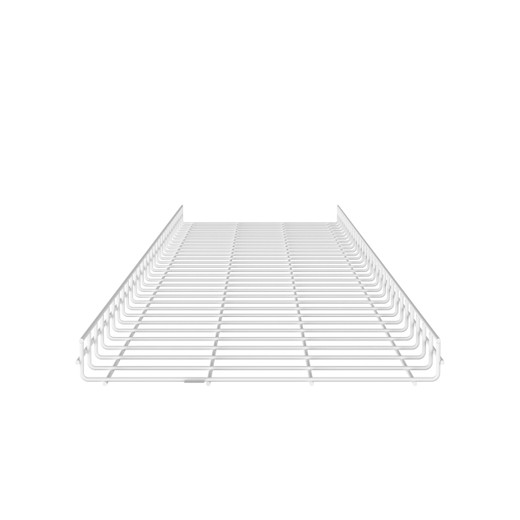

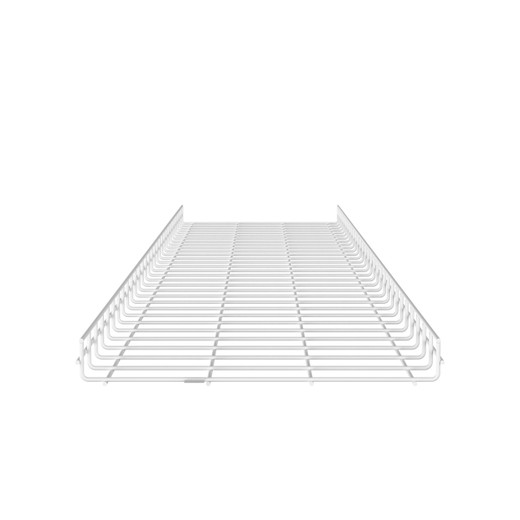

Panduit PWB2X18WH Powder-Coated Steel Wire Basket
The Panduit PWB2X18WH is a powder-coated steel wire basket designed for high-density cable management in data centers, connected buildings, and industrial automation environments. This white-finished basket integrates into Panduit's wire basket tray systems to support structured cabling pathways above racks, under raised floors, and along overhead runs. UL classified as an equipment grounding conductor per NEC 392.3(C) and 392.7(B), it delivers both mechanical support and electrical continuity for grounded cable-tray installations—critical for mission-critical facilities where code compliance and safety are non-negotiable.
Key Features
- UL classified for use as equipment grounding conductor per NEC Sections 392.3(C) and 392.7(B)
- Powder-coated white finish for corrosion resistance and clean aesthetics in visible pathways
- Steel construction provides structural rigidity for medium to heavy cable loads
- Compatible with Panduit wire basket accessories, splices, and mounting hardware
- Designed for data center hot/cold aisle runs, overhead cable distribution, and under-floor pathways
- Competitor cross-reference: replaces CF54/450WH, FT2X18X10-WH, WBT2X18WH in retrofit projects
The UL classification is the standout spec here: unlike unrated generic basket tray, the PWB2X18WH meets NEC requirements for equipment grounding continuity, meaning the steel basket itself functions as a grounding path when properly bonded. This eliminates the need for separate grounding conductors in many installations, simplifying labor and materials while maintaining electrical-code compliance. The powder-coated finish resists scratches and corrosion better than bare steel or galvanized options, keeping white pathways looking clean in customer-facing spaces like network operations centers or retail back-of-house areas where cable infrastructure is exposed.
Deployment is straightforward in Panduit ecosystems: the basket segments splice together with Panduit's snap-fit connectors (sold separately), mount to ceiling grid or threaded rod via Panduit's basket hangers, and accommodate standard bend-radius fittings for direction changes. For data-center installs, integrators typically run these baskets parallel to rack rows at 10–12 ft elevation, dropping vertical sections down to top-of-rack cable managers. In industrial automation settings, the same baskets support field-device home runs above machinery, where the open-wire design allows heat dissipation and visual inspection of cables without removing covers. The white finish blends into office and healthcare environments where black or gray trays would stand out.
This basket ships two units per carton and includes competitor part-number cross-references (CF54/450WH, FT2X18X10-WH, WBT2X18WH), making it a drop-in replacement for legacy cable-tray systems during expansions or renovations. The UL grounding classification and NEC-compliant design mean inspectors will sign off on the installation without requiring engineering letters or AHJ variance requests—critical for accelerating project closeout in jurisdictions with strict electrical-inspection protocols.
