Vertiv GL24WDM-B-AF 11U Wall-Mount Mesh Enclosure with Active Fan
The Vertiv GL24WDM-B-AF is a wall-mount network enclosure designed for equipment rooms, server closets, and distributed wiring locations where rack space is limited but airflow and access cannot be compromised. At 11U (24"), this unit ships configured with a mesh door and active fan airflow — the combination that matters when you're housing switches, patch panels, or edge compute gear that generates meaningful heat in a confined wall-mount footprint. GL24WDM-B-AF (often searched as GL24WDM B AF) is part of Vertiv's Vertiv wall-mount enclosure line, a range that covers 11U through 25U depending on how much gear you need to consolidate.
Key Features
- Mesh Door (Factory-Configured): The mesh front door on the GL24WDM-B-AF allows passive airflow even when the fan is off — a meaningful backup for sites where power to auxiliary equipment can be interrupted. Unlike solid doors, mesh won't trap heat against your switching gear during a fan fault.
- Active Fan Airflow: The factory-installed fan option moves air through the enclosure continuously, which matters in wall-mount deployments where convection alone is often insufficient. If you're housing PoE switches or edge servers, active cooling is the safer default over the no-fan variant.
- 11U at 24" Height: Eleven rack units in a 24" vertical profile fits a PoE access switch, a patch panel, and a UPS in a single wall-mount — the right density for a medium-sized IDF closet or a distributed surveillance head-end. Compare this to the 18U (36") and 25U (48") variants in the same family if your channel count is higher.
- 24" Wide x 32" Deep Footprint: The 32" depth accommodates full-depth switches and 1U servers without shimming or shelf extensions — a limitation that plagues shallower 18" or 24"-deep wall-mount competitors. Measure your deepest piece of equipment before specifying; the GL24WDM-B-AF won't constrain you on depth for standard 1U-2U gear.
- Black Finish: The black powder coat is the right call for finished office and retail environments where a silver enclosure reads as exposed infrastructure. It also handles minor scuffs and fingerprints better in high-traffic areas.

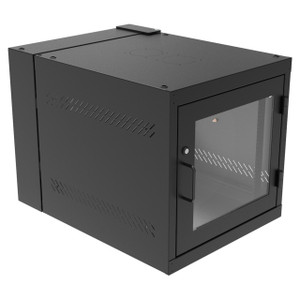

- Door Configuration Flexibility: The GL24WDM-B-AF ships mesh, but the same enclosure family offers plexi and solid door variants — useful to know if you're specifying across multiple sites with different requirements from a single procurement vehicle.
- Size Family — 11U Through 25U: If your equipment list grows post-install, the 18U (36") and 25U (48") variants in the same family share the same form factor logic, so mounting hardware and cable management accessories transfer. Plan for headroom — wall-mount enclosures are harder to swap than floor-standing network racks and cabinets.
Integration and Compatibility
The GL24WDM-B-AF is compatible with standard 19" rack-mount equipment. The 11U capacity suits managed PoE switches, patch panels, and 1U appliances typical in edge surveillance and distributed IT deployments. For environments running active surveillance infrastructure, pair with a network video recorder or edge NVR appliance where space permits. Consult your wall-mount enclosure selection guide if you're evaluating depth or U-count for a specific equipment list.
Frequently Asked Questions
Q: What is the rack unit capacity of the GL24WDM-B-AF?
A: The GL24WDM-B-AF is an 11U enclosure with a 24" (610mm) height. The same family also offers 18U (36") and 25U (48") variants if you need more capacity.
Q: Does this enclosure come with a fan installed?
A: Yes. The GL24WDM-B-AF ships with active fan airflow as indicated by the "-AF" suffix. The same family offers non-fan and clear-airflow variants for passive or open configurations.
Q: What type of door does the GL24WDM-B-AF have?
A: It ships with a mesh door, which supports airflow even when the fan is not running. The family also offers plexi and solid door options in separate SKUs.
Q: What are the interior dimensions and how deep is the GL24WDM-B-AF?
A: The enclosure is 24" wide and 32" deep, accommodating full-depth 1U and 2U rack equipment without shelf extensions.
Q: Is the GL24WDM-B-AF suitable for surveillance equipment like NVRs or PoE switches?
A: Yes. The 11U capacity, 32" depth, and active fan cooling make it appropriate for edge surveillance deployments housing PoE switches, patch panels, and 1U NVR appliances. Active airflow is recommended when housing heat-generating PoE equipment.
The GL24WDM-B-AF is the configuration I reach for when a job needs a wall-mount enclosure that won't cook switching gear — the mesh door plus active fan combination is the right call for any closet where PoE budgets run above 100W aggregate, which is basically every modern access layer IDF I've seen in the last few years.
Technical Highlights:
- Active Fan (-AF): Wall-mount enclosures have naturally restricted convection paths. The factory fan eliminates the guesswork on whether passive cooling is adequate — relevant any time you're stacking a 24-port PoE switch and a patch panel in 11U.
- Mesh Door: Unlike solid doors, mesh doesn't block the fan's throw. You get measurable front-to-back airflow rather than recirculating hot air inside the cabinet — a real difference in confined mechanical rooms.
- 32" Depth: Most competing wall-mounts cap at 24". The extra 8" means a full-depth 1U NVR or managed switch fits without a shelf adapter, which is one fewer failure point and one fewer SKU on the BOM.
Deployment Considerations:
- Verify wall stud or backing-plate capacity before mounting — 11U of populated gear adds up fast, and drywall anchors alone are not rated for a loaded enclosure at this depth.
- The -AF fan is the right default, but if you're installing in a noise-sensitive environment (open office, reception area), evaluate whether the no-fan variant with mesh passive cooling is tolerable given your actual equipment heat load.
This enclosure earns its place in distributed surveillance IDFs and campus edge closets — specifically where you need full-depth switching gear, active cooling, and a door that doesn't fight your airflow strategy.
